English - 14
Chapter 4 Camera Connection Description
VS-KB30 supports crossing protocol hybrid control between RS232,
RS422 and IP.
Supported control protocols include: VISCA, PELCO D / P, ONVIF,
VISCA over IP

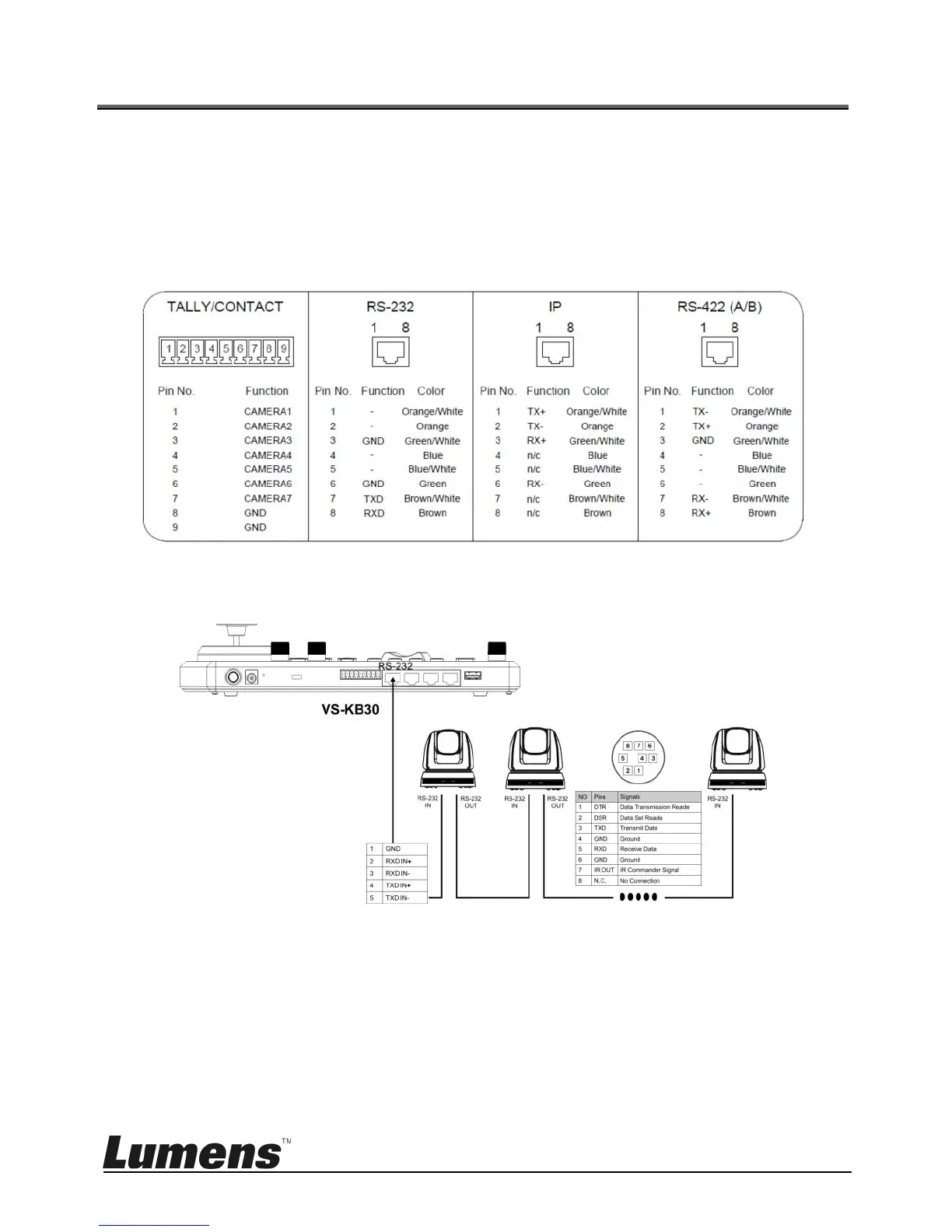

4.1 Port Pin Definition
4.2 How to Connect RS-232
1. Connect the RJ-45 to RS232 adapter cable to the RS232 port of
VS-KB30
2. Please refer to the RJ-45 to RS232 adapter cable and camera Mini
Din RS232 pin definitions to complete the cable connection
[Remark] Please make sure that SYSTEM SWITCH DIP1 and DIP3 on
the bottom of Lumens camera are set as OFF (RS232 & baud
rate 9600)
[Note] VC-AC07 is optional and can be connected via network cable
To Next Page
