MENU
OK
①
②
③
④
⑤⑥ ⑦⑧⑨

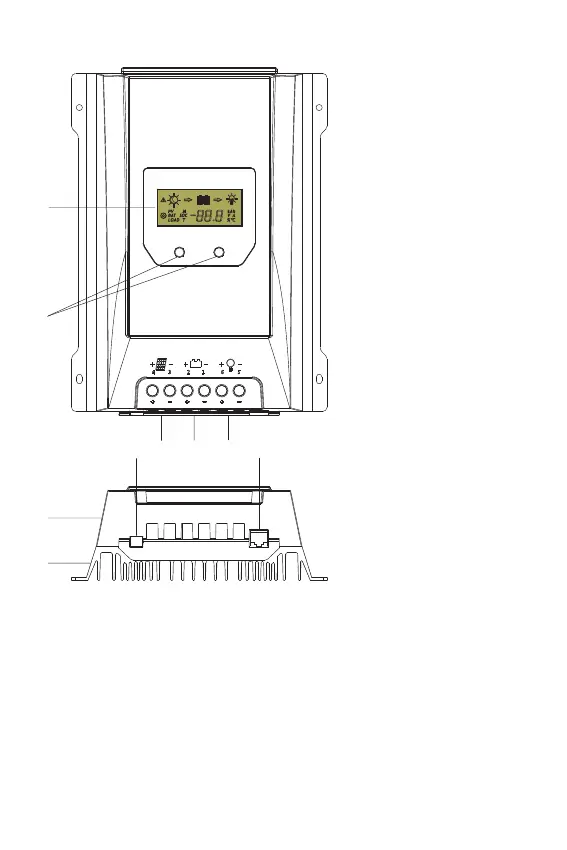

4.3 Characteristics of MT3010/4010/4015 Structure &
①Heat Sink
—dissipate controller heat
②Plastic Case
—Internal protection
③LCD
— Display settings and operating status,
system parameters
④Key: MENU、OK
—Set and view the operating parameters
⑤RJ11 interface
—Connecting monitoring devices
⑥Temperature Sensor Port
—Collect temperature information, the
Temperature compensation.
⑦ Load Terminals
—Connected load.
⑧Battery Terminals
—Connect the battery.
⑨Solar module terminals
—Connected solar modules.
10
4.4 Temperature Sensor
To collect battery temperature data for temperature compensation so the controller can accurately charge
the battery. The temperature sensor is connected via interface 6.
If the remote temperature sensor is not connected to the controller or damaged, the default temperature
for battery charging is 25 °C .
The controller is shipped with an 80 mm long cable temperature sensor. Should a sensor with a longer
cable be required than this needs to be ordered separately.
