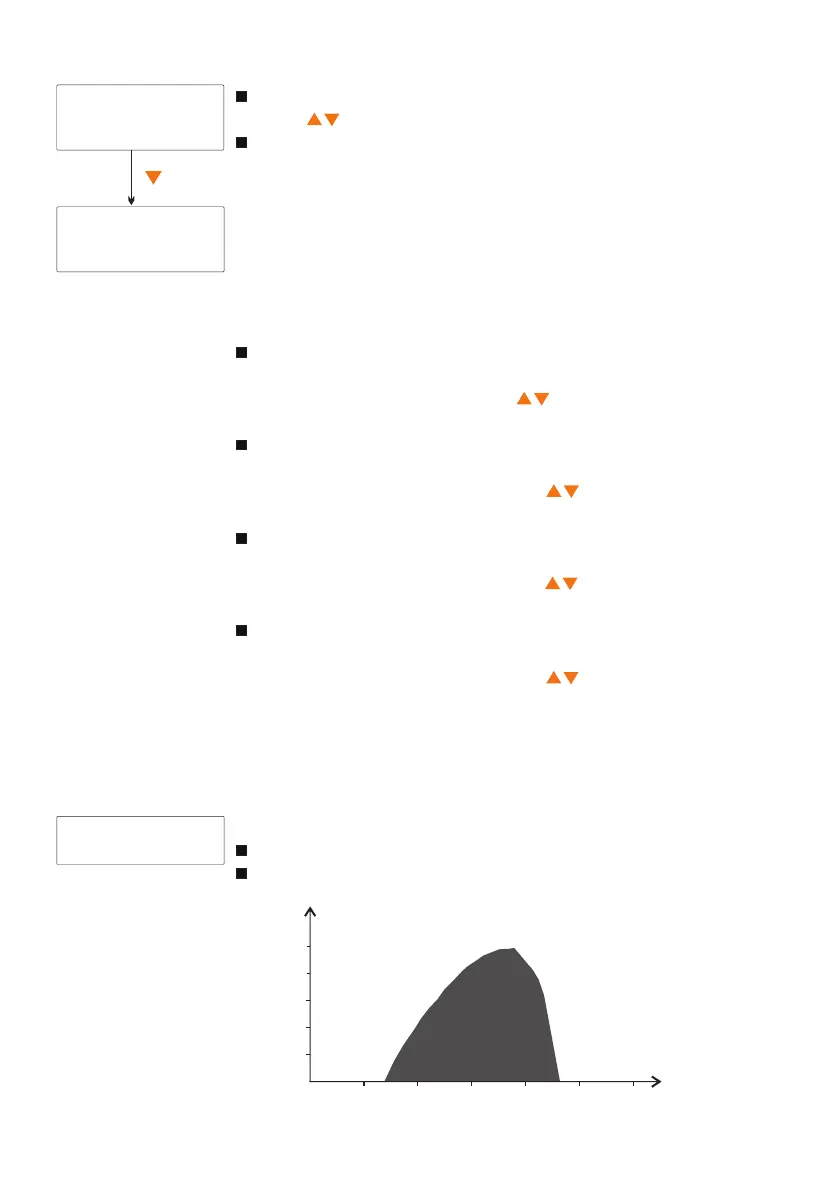

3.1 Total in
Memory of the information on the amount of input energy in
Wh/KWh. Graphical overview representing the last 24 hours.
6.6.3 Data logger
3.1 Total in
3.2 Battery voltage
2.1 Bat. Type : LI
2.2 0℃charge : Yes
2.3 CVT : 57.6V
2.4 CVR : 56.0V
2.5 LVD : 42.4V
2.6 LVR : 48.0V
The battery type is LI.
2.1 Bat. Type (Battery Type)
Press to change the battery type as LI.
2.2 0℃ charge (0℃ charging)
Possibilities for programming: Yes, No, Slow. (default : Yes)
2.3 CVT (Charging target voltage)
This item can change the charging target voltage, press the OK key
to enter the menu, you may press to change the value.
Possibilities for programming: 10.0~64.0V.（default : 57.6V)
2.4 CVR (Charging recovery voltage)
This item can change the charging recovery voltage, press the OK
key to enter the menu, you may press to change the value.
Possibilities for programming: 9.2~63.8V.(default : 56.0V)
2.5 LVD (Low Voltage Disconnect)
This item can change the low voltage disconnect data, press the OK
key to enter the menu, you may press to change the value.
Possibilities for programming: 9.0~60.0V.(default : 42.4V)
2.6 LVR (Low Voltage Reconnect)
This item can change the low voltage reconnect data, press the OK
key to enter the menu, you may press to change the value.
Note: The solar charge controller allows the smallest difference
between LVD and LVR is 0.6V. If you want to program a high level for
disconnection you must first increase the reconnection level.
Possibilities for programming: 9.6~62.0V.(default : 48.0V)
"0℃ Charge" can be set to "Yes", "Slow" or "No". When the
controller detects that the ambient temperature is higher than 0℃,
the charging function is normal. when the ambient temperature is
low than 0℃, if the "0℃ Charge" is set to “Yes”, the charging
function is normal, else if the "0℃ Charge" is set to “slow”, the max
charging current is 20% of the rated current, else if the "0℃ Charge"
is set to “No”, the controller does not charge the battery.
OK
21
0
H
2
4
6
8
10
10WH
Total: 600WH
4
8
12
16
20
24
