LUMINELL CP2 - Box Content; General

Doc. No.: CP2 Control Panel_usermanual_D0077_EN_v1.7.docx7
Page 2 of 10
Box Content
Box content:
Required tools:
• CP2 Control Panel
• 4x T20 screws
• Cable tie
• User Manual
• T20 torx tool (panel mount)
• Flat screwdriver (2mm for terminals)
• Wire stripper
1 GENERAL
Luminell CP2 Control Panel is the second-generation control panel developed to control any Luminell luminaires
through wired 0-10V connection. The panel has two independent control channels, a main switch and adjustable
button backlight. Ordering information:
Item number
Description
Control output signal
LN1003552
CP2 Control Panel
Wired 0-10V
LN1003873
CP2 Control Panel Large*
Wired 0-10V
*Note! LN1003873 CP2 Control Panel Refit can be used as a replacement solution for old LN1002097 Luminell Control
Panel.
NOTE: This document only includes installation and user instructions for the Control Panel. For a list of compatible
luminaires, see chapter 1.1. For details see the documentation for the specific luminaire

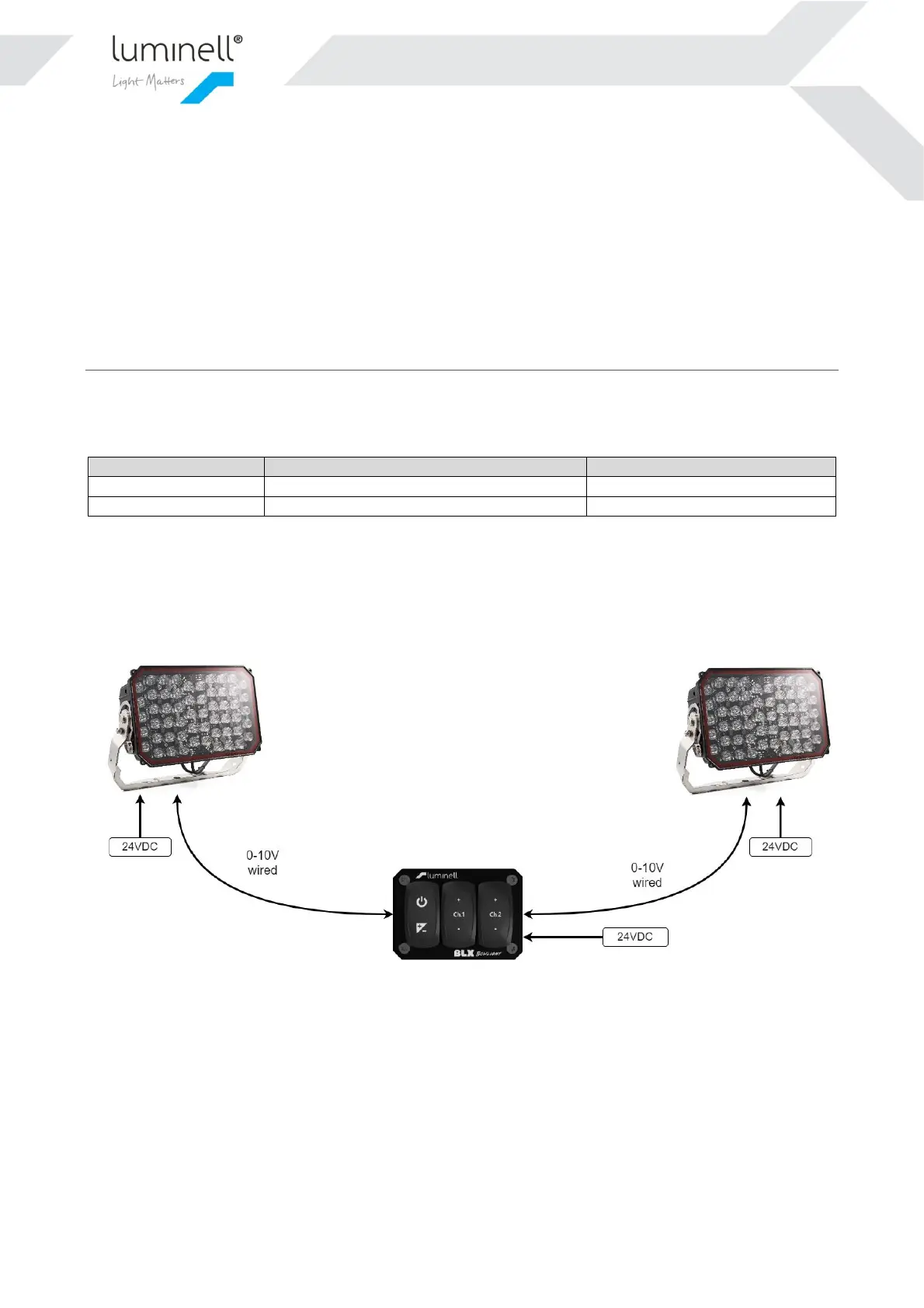

Figure 1 Example setup of a CP2 and two BLX D controlled with wired 0-10V
––
