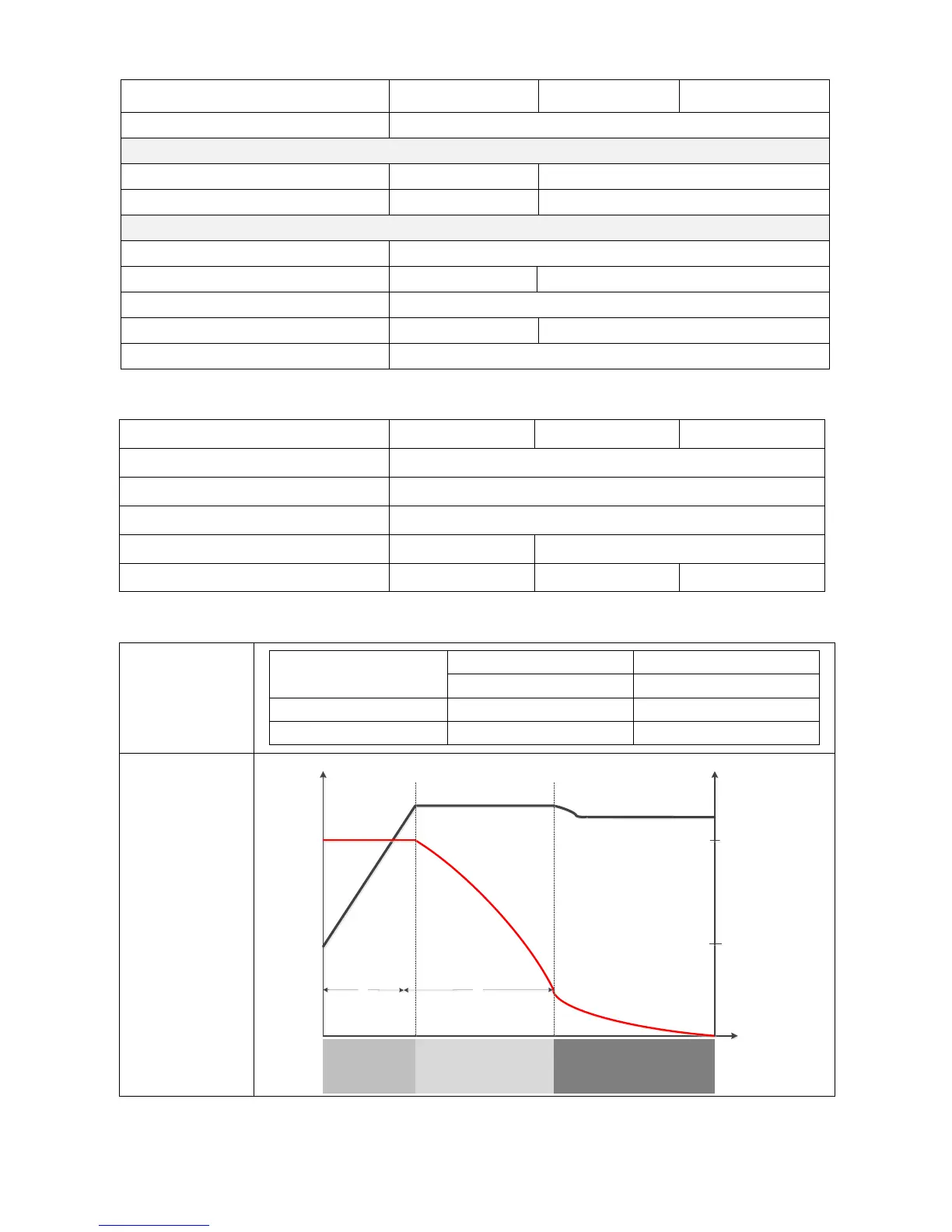

Table 3 Charge Mode Specifications
INVERTER MODEL
1KVA
2KVA
3KVA
Charging Algorithm
3-Step
Utility Charging Mode
Charging Current (UPS)
10/20Amp
20/30Amp (@V
I/P
=230Vac)
Charging Floating Voltage
13.5Vdc
27Vdc
Solar Charging Mode
Charging Current (PWM)
50Amp
System DC Voltage
12Vdc
24Vdc
Max. PV Array Open Circuit Voltage
125Vdc
Standby Power Consumption
1W
2W
DC Voltage Accuracy
+/-0.3%
Table 4 General Specifications
INVERTER MODEL
1KVA
2KVA
3KVA
Safety Certification
CE
Operating Temperature Range
0°C to 55°C
Storage temperature
-15°C~ 60°C
Dimension (D*W*H), mm
95 x 240 x 316
100 x 272 x 355
Net Weight, kg
5.0
6.35
6.85
Charging Controls
Voltage Setting
Battery Type
Boost CC, CV
Float
12/24
12/24
Flooded
14.6/29.2
13.5/27.0
AGM / Gel
14.1/28.2
13.5/27.0
Charging Curve
Time
Battery Voltage, per cell
Charging Current, %
100%
50%
Bulk
(Constant Current)
Absorption
(Constant Voltage)
Maintenance
(Floating)
Current
Voltage
T
1
T1 = 10* T0, minimum 10mins, maximum 8hrs
T
0
2.43Vdc (2.35Vdc)
2.25Vdc
