7) When utility and solar are presented, battery charged from both solar and utility, I
CHG
=I
SC
+I
UC
, load powered
from solar and battery. If solar priority, output source turn to utility side in case solar panel without energy or
battery voltage down to pre-alarm level. If sbu priority, output source turn to utility side in case of battery
voltage down to pre setting level
Ex. 3KVA Model, AC Load = 2000W
i.e. I
LOAD
≈ 8.7Amp and I
DISC
≈ 92Amp
Max. I
CHG
= 50Amp, it means battery always stay in discharge situation since the required power of AC load is
larger than charging. Once battery down to pre-alarm level, AC load will be powered from utility then I
DISC
become zero.

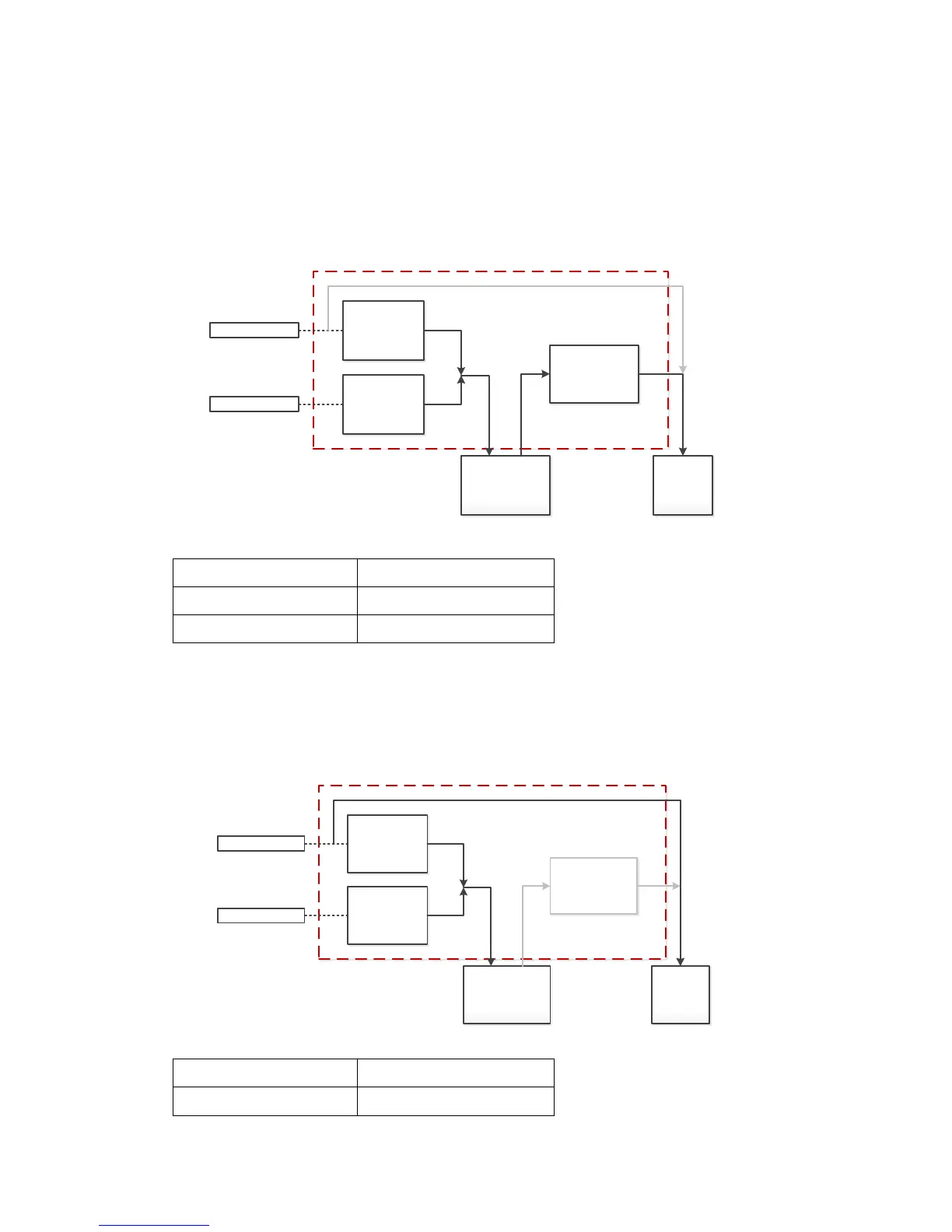

Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ILOAD
ISC
IUC
ICHG
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar and utility
solar
solar and utility
sbu
8) When utility and solar are presented, battery charged from both solar and utility, I
CHG
=I
SC
+I
UC
, load powered
from utility.
Ex. 3KVA Model, AC Load = 2000W
i.e. I
LOAD
≈ 8.7Amp, I
DISC
= 0
Battery always charged by the max. power from both utility and solar source.
Utility Charger
Solar Charger
Utility Source
Solar Source
Battery Bank
DC/AC Inverter
AC Load
IDISC
ISC
IUC
ICHG ILOAD
Priority Setting Combinations:
Charger Priority
Output Source Priority
solar and utility
utility
