18
Antenna installation

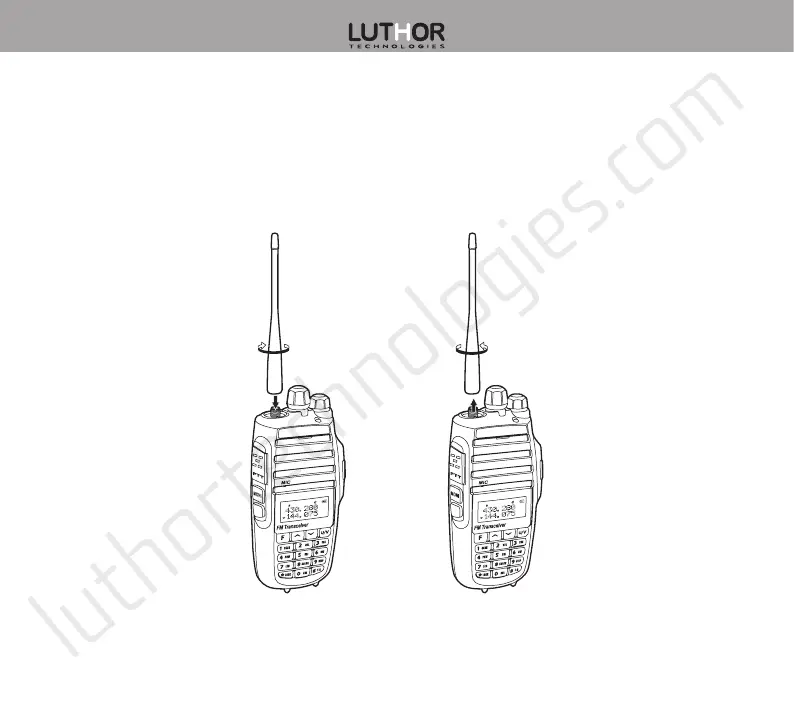

To install the supplied antenna, line up the antenna threaded end with the thread situated on the
upper side of the radio, hold it on the base and make it turn clockwise into the transceiver’s top
connector until it will be totally fixed. (Figure 3)
To uninstall the antenna, hold it on the base and make it turn counter-clockwise. (Figure 4)
Figure 4Figure 3
