Belt clip installation

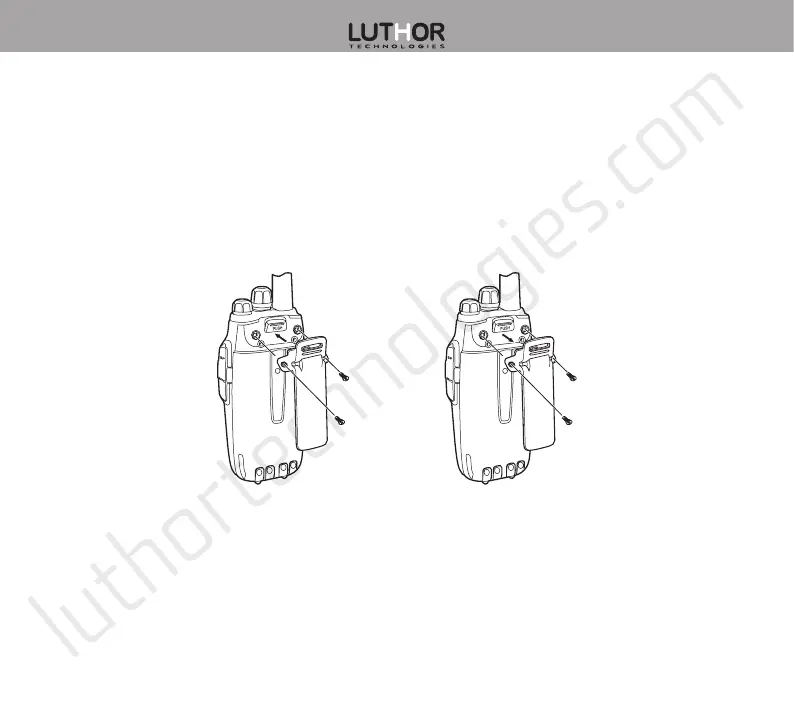

Line up both holes on the the transceiver’s back side with the clip ones, fix the clip to the
transceiver with the two supplied screws (M2.5x5). (Figure 5)
Unscrew the screws to remove the clip. (Figure 6)
Figure 6Figure 5
