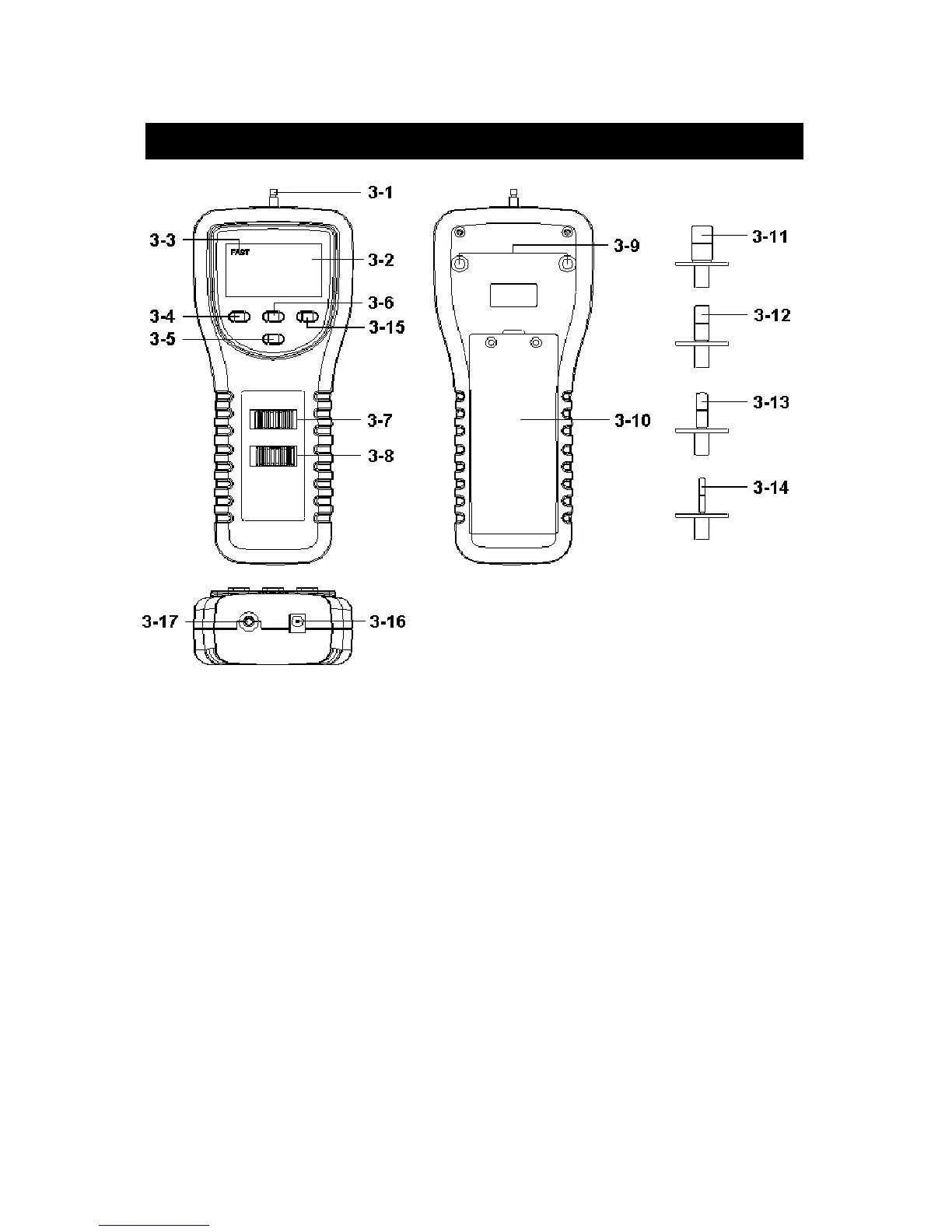

3. FRONT PANEL DESCRIPTION
Fig. 1
3-1 Universal Sensing 3-10 Battery Cover/
Head Compartment
3-2 LCD Display 3-11 11 mm Penetrometer Tip
3-3 Fast Indicator ( FRTP-11 )
3-4 FAST/SLOW Button 3-12 8 mm Penetrometer Tip
3-5 LCD Reverse Display ( FRTP-8 )
Button 3-13 5 mm Penetrometer Tip
3-6 Zero Button ( FRTP-5 )
3-7 Kg/Newton/LB Unit 3-14 3 mm Penetrometer Tip
Switch ( FRTP-3 )
3-8 Power Off/On/Peak Hold 3-15 LCD Back Light Button
0 = Off, 1 = On 3-16 DC 9V Power Adapter
3-9 Mounting Holes/fixing Input Socket
Screws 3-17 RS-232 output terminal
4
