QS System QSE-IO Control Interface
369374a 6 08.07.12
Wiring Application Examples

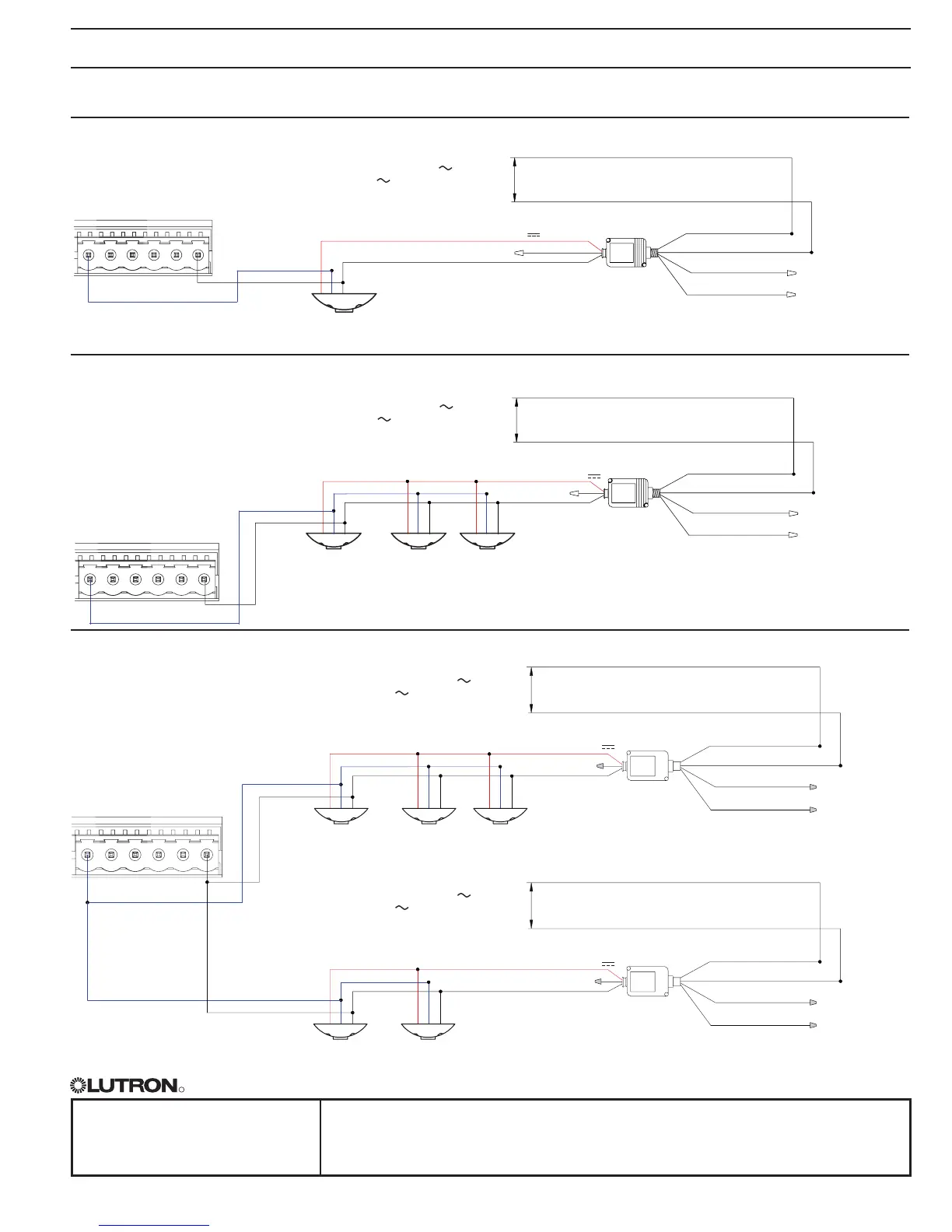

1 Lutron Occupancy Sensor Wired to 1 QSE-IO Device Input
QSE-IO Terminals
Occupancy
Sensor
Power Pack
(use model that
corresponds to
input voltage)
Hot
Neutral
Red (+20 - 24 V )
Blue (signal)
Black (common)
Blue (signal)
Black
(common)
Black
White
Red
Red
120 / 277 / 347 V
60 Hz
230 V 50 / 60 Hz
CCI1 CCI2 CCI3 CCI4 CCI5 COM
Power Pack
(use model that
corresponds to
input voltage)
Blue (signal)
Black
(common)
3 Lutron Occupancy Sensors Wired to 1 QSE-IO Device Input
QSE-IO Terminals
Occupancy
Sensors
Hot
Neutral
Red (+20 - 24 V )
Blue (signal)
Black (common)
Black
White
Red
Red
120 / 277 / 347 V
60 Hz
230 V 50 / 60 Hz
CCI1 CCI2 CCI3 CCI4 CCI5 COM
Note: Occupancy sensors will not participate in partitioning logic.
More Than 3 Lutron Occupancy Sensors Wired to 1 QSE-IO Device Input
QSE-IO Terminals
Occupancy Sensors
Hot
Neutral
Red (+20 - 24 V )
Blue (signal)
Black (common)
Red (+20 - 24 V
)
Blue (signal)
Black (common)
Black
White
Red
Red
120 / 277 / 347 V
60 Hz
230 V 50 / 60 Hz
CCI1 CCI2 CCI3 CCI4 CCI5 COM
Occupancy Sensors
Hot
Neutral
Black
White
Red
Red
120 / 277 / 347 V 60 Hz
230 V 50 / 60 Hz
Blue (signal)
Black
(common)
Blue (signal)
Black
(common)
Power Pack
(use model that
corresponds to
input voltage)
Power Pack
(use model that
corresponds to
input voltage)
Note: Occupancy sensors will not participate in partitioning logic.
