Lutron Electronics QSE-IO - Terminal Locations

R
SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
QS System QSE-IO Control Interface
369374a 4 08.07.12

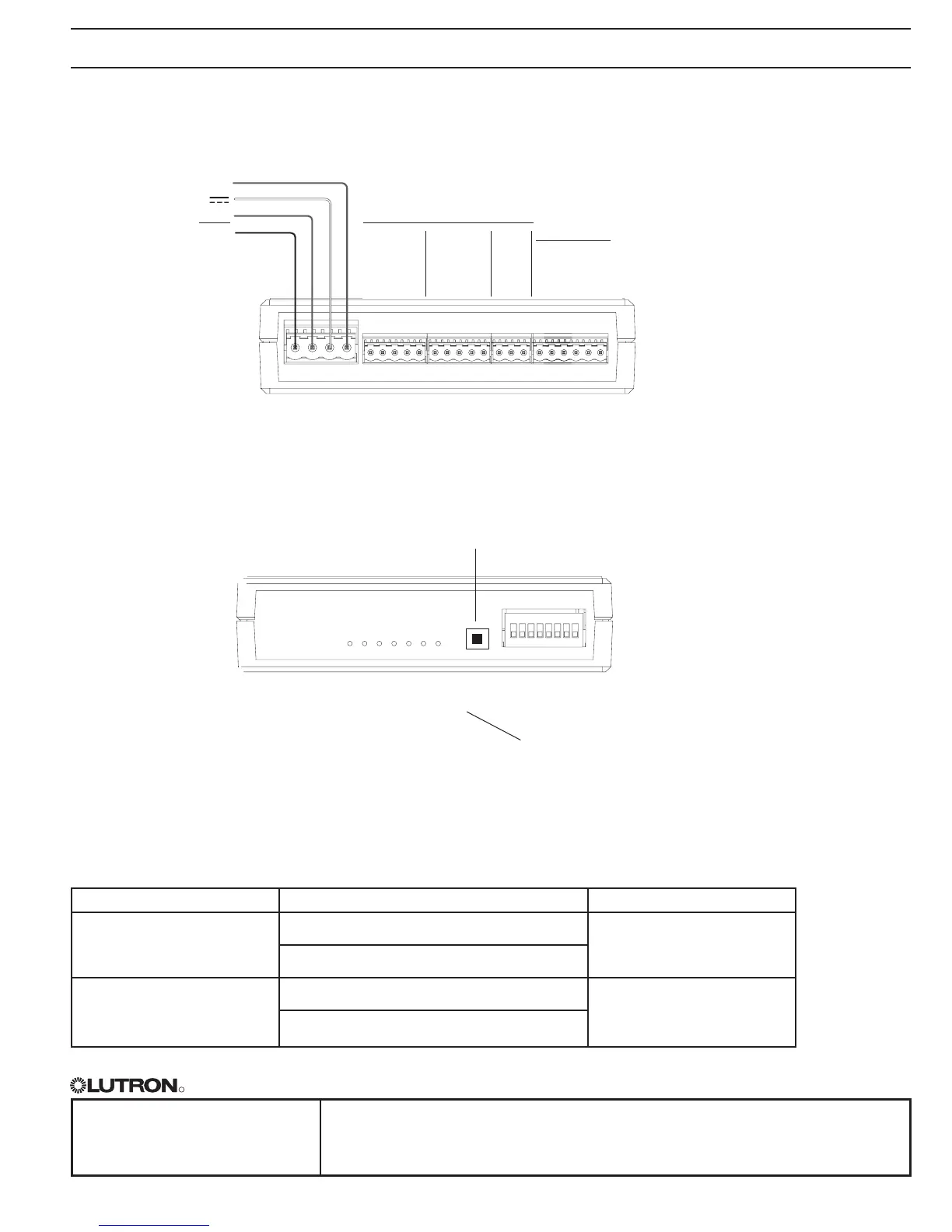

Terminal Locations
4321
Relay 1 NC Relay 1 NO Relay 1 & 2 Common Relay 2 NC Relay 2 NO Relay 3 NC Relay 3 NO Relay 3 & 4 Common Relay 4 NC Relay 4 NO Relay 5 NC Relay 5 NO Relay 5 Common Input 1 Input 2 Input 3 Input 4 Input 5 Common
CCIandCCOterminalseachholdone
28–16AWG(0.08–1.5mm
2
) wire
QSDataLink(tocontrol
units, window treatments,
and wallstations)
 1:Common
 2:24V
 3:MUX
4:MUX
CCO 1 NC CCO 1 NO 1-2 COM CCO 2 NC CCO 2 NO CCO 3 NC CCO 3 NO 3-4 COM CCO 4 NC CCO 4 NO CCO 5 NC CCO 5 NO 5 COM CCI 1 CCI 2 CCI 3 CCI 4 CCI 5 COM
QSE-IO
Program
button
1234567
DIPswitches
LED1:CCO1
LED2:CCO2
LED3:CCO3
LED4:CCO4
LED5:CCO5
LED6:Unused
LED7:Status
Note:LEDisONwhenCCONO
(normally open contact) is closed.
}
ContactClosureOutputs
Contact
Closure
Inputs
LED and DIP Switch Locations
QS Link Wire Sizes (check compatibility in your area)
QS Link Wiring Length Wire Gauge Lutron Cable Part Number
<500ft(153m)
Power(terminals1and2)
1pair18AWG(1.0mm
2
)
GRX-CBL-346S(non-plenum)
GRX-PCBL-346S(plenum)
Data(terminals3and4)
1twisted,shieldedpair22AWG(0.5mm
2
)
500–2000ft
(153–610m)
Power(terminals1and2)
1pair12AWG(4.0mm
2
)
GRX-CBL-46L(non-plenum)
GRX-PCBL-46L(plenum)
Data(terminals3and4)
1twisted,shieldedpair22AWG(0.5mm
2
)
