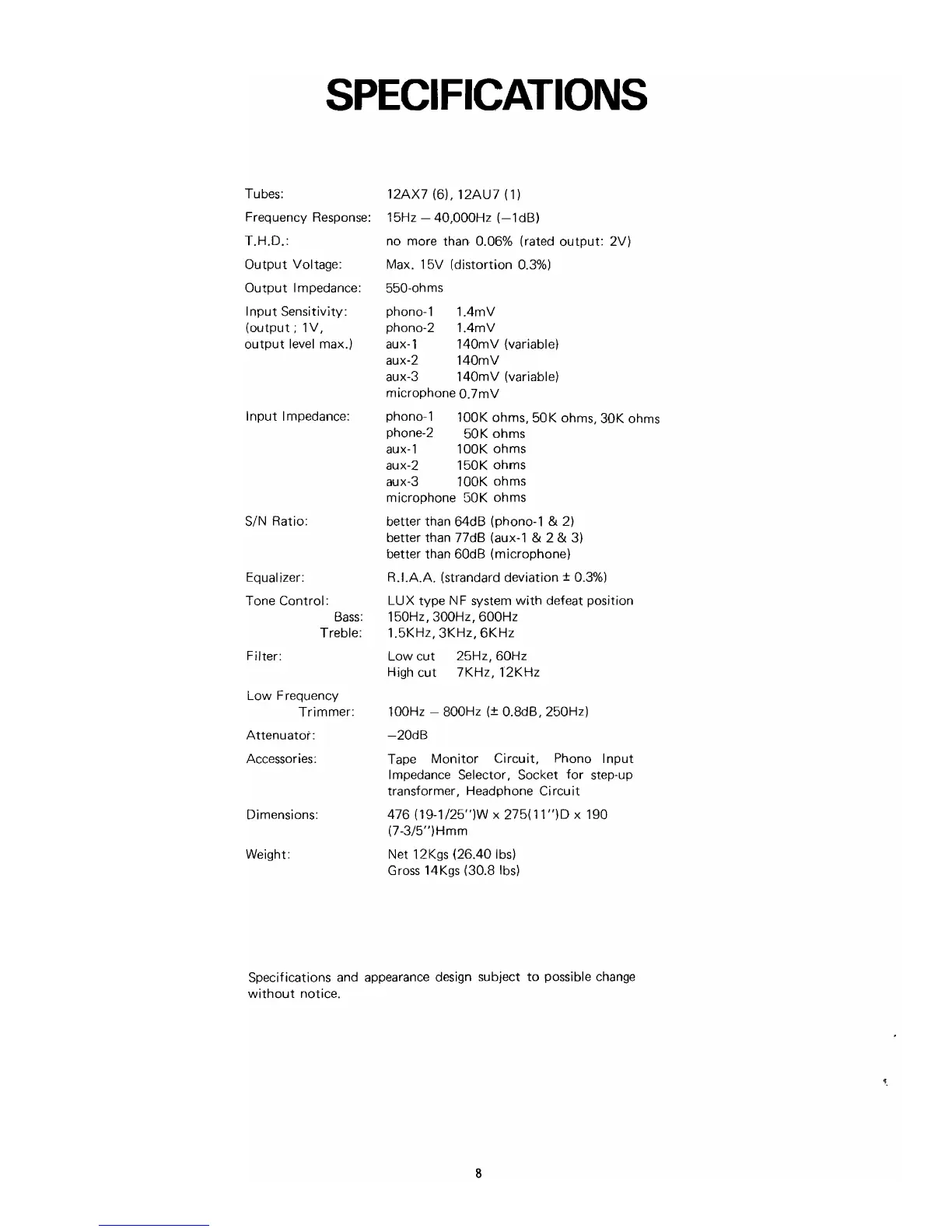

SPECIFICATIONS
Tubes:
Frequency
Response:
T.H.O.:
Output
Voltage:
Output
Impedance:
I
nput
Sensitivity:
(output;
1
V,
output
level max.)
Input Impedance:
SIN Ratio:
Equalizer:
Tone Control:
Bass:
Treble:
Filter:
Low Frequency
Trimmer:
Attenuator:
Accessories:
Dimensions:
Weight:
12AX7 (6),
12AU7
(1)
15Hz-40,OOOHz
(-ldB)
no more than 0.06% (rated
output:
2V)
Max. 15V (distortion 0.3%)
550-ohms
phono-1
l.4m
V
phono-2
l.4mV
aux-l 140mV (variable)
aux-2 140mV
aux-3 140mV (variable)
microphone
0.7mV
phono~
1 lOOK ohms, 50K ohms, 30K ohms
phone-2 50 K ohms
aux-l lOOK ohms
aux-2 150K ohms
aux-3 lOOK ohms
microphone 50K ohms
better than 64dB (phono-l & 2)
better than 77dB (aux-l & 2 & 3)
better than 60dB (microphone)
R.I.A.A. (strandard deviation ± 0.3%)
LU
X type NF system
with
defeat position
150Hz, 300Hz, 600Hz
1.5KHz, 3KHz,
6KHz
Low cut 25Hz, 60Hz
High cut 7KHz, 12KHz
100Hz - 800Hz
(±
0.8dB, 250Hz)
-20dB
Tape
Monitor
Circuit, Phono Input
Impedance Selector, Socket
for
step-up
transformer, Headphone
Ci
rcu
it
476
(19-1/25")W
x
275(11")0
x 190
(7-3/5")Hmm
Net 12Kgs (26.40
Ibs)
Gross
14Kgs (30.8
Ibs)
Specifications and appearance design subject
to
possible
change
without
notice.
8
