Luxman L-509X User Manual

8

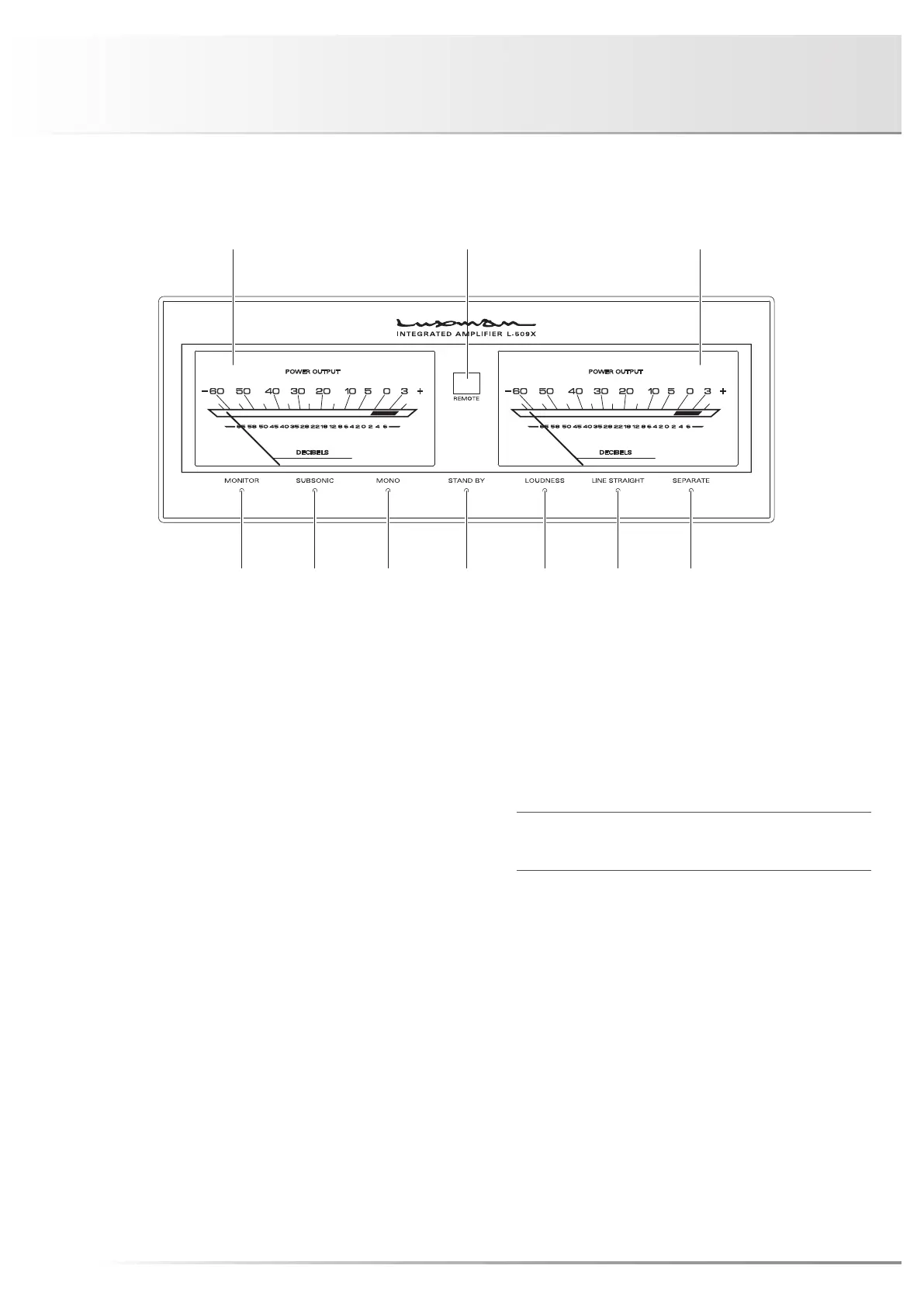

Names and Functions
1. Monitor indicator (MONITOR)
Lights up when the monitor switch is on.
2. Power meters
The left meter reads the output of the L channel, and the
right meter reads the output of the R channel. The meters
read the level in decibels.
The meters light when the power is on.
3. Subsonic indicator (SUBSONIC)
Lights up when the subsonic switch is on.
4. Monaural indicator (MONO)
Lights up when the monaural switch is on.
The subsonic, monaural and loudness can be toggled only
from the accessory remote control (RA-17A).
Display window
5
6
2
97 8
2
1 43

Luxman L-509X Specifications

General

Type	Integrated Amplifier
Output Power	120W + 120W (8Ω), 220W + 220W (4Ω)
Total Harmonic Distortion	0.007% (1kHz/8Ω)
Frequency Response	20Hz - 100kHz (+0, -3.0dB)
Weight	29.3 kg
Input Sensitivity / Impedance	Line: 180mV / 47kΩ
Output Voltage	1V
Dimensions	440 x 193 x 463 mm
