3
PACKAGE CONTENTS
f
XMS-1010P 10-Port/8 PoE+ Gigabit Managed Switch
f
Power cable
f
Two L-shape brackets and eight matched screws
f
Four rubber footpads
f
Quick Install Guide
If any of the listed items are missing or damaged, please contact the reseller from whom you
purchased for return/replacement.
HARDWARE DESCRIPTION
Front Panel
The front panel of the XMS-1010P switch includes 8 1000Mbps RJ45 and Two Gigabit uplink
ports and LED indicators on the left side. Each 1000Mbps PoE port has one Link/Activity LED,
one 1000Mbps LED and one PoE LED, there are also two uplink LEDs, one Power LED, one
System LED and a reset button.

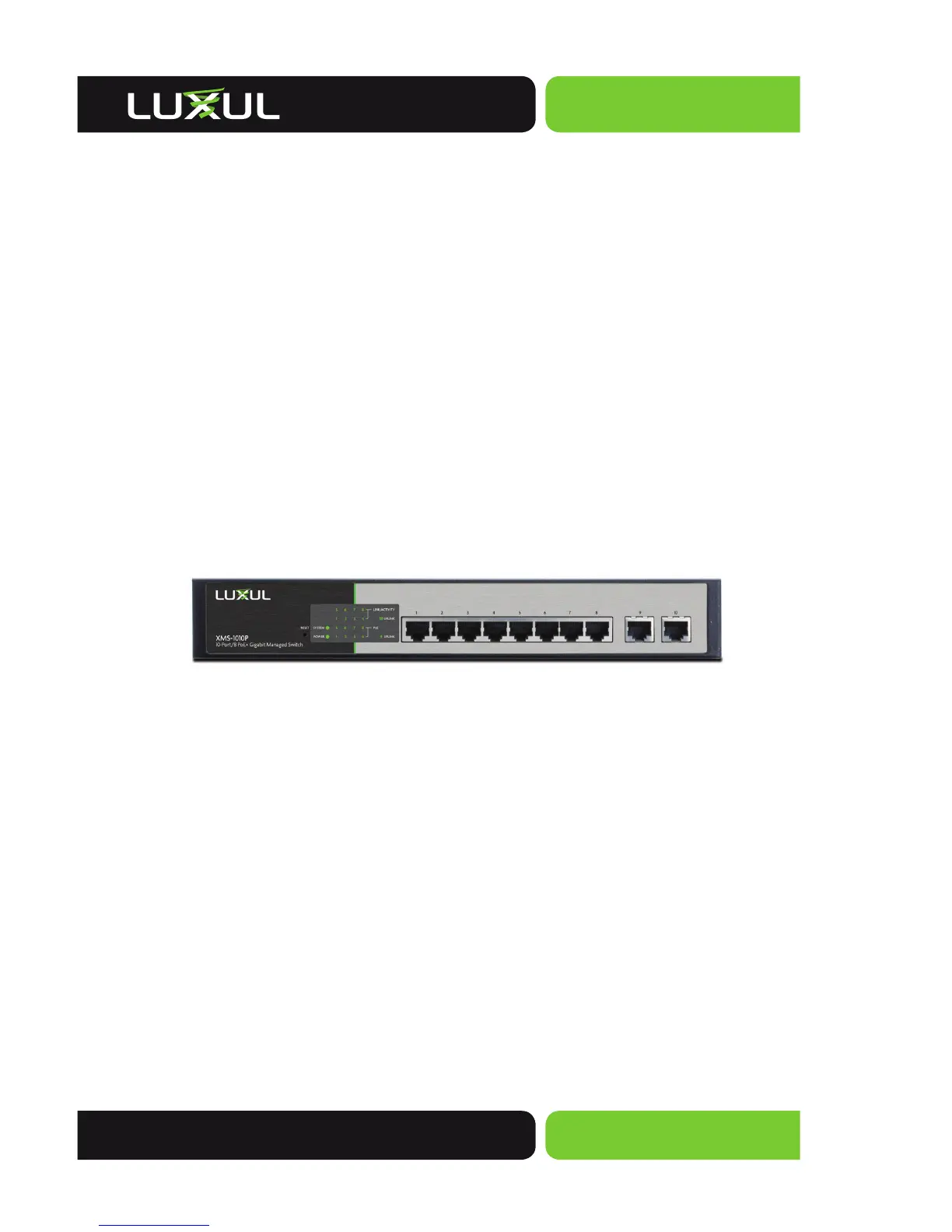

XMS-1010P Front Panel
Status indicators
Each port has one Link/Activity LED, one 1000Mbps LED and one PoE LED. In addition, there
are two SFP LEDs, one Power LED, one System LED, as well as a Reset button to reboot the
device or restore factory default settings. The green LED indicators show the working status
of the switch. The following table describes the LED functionality:
