[Lower part]

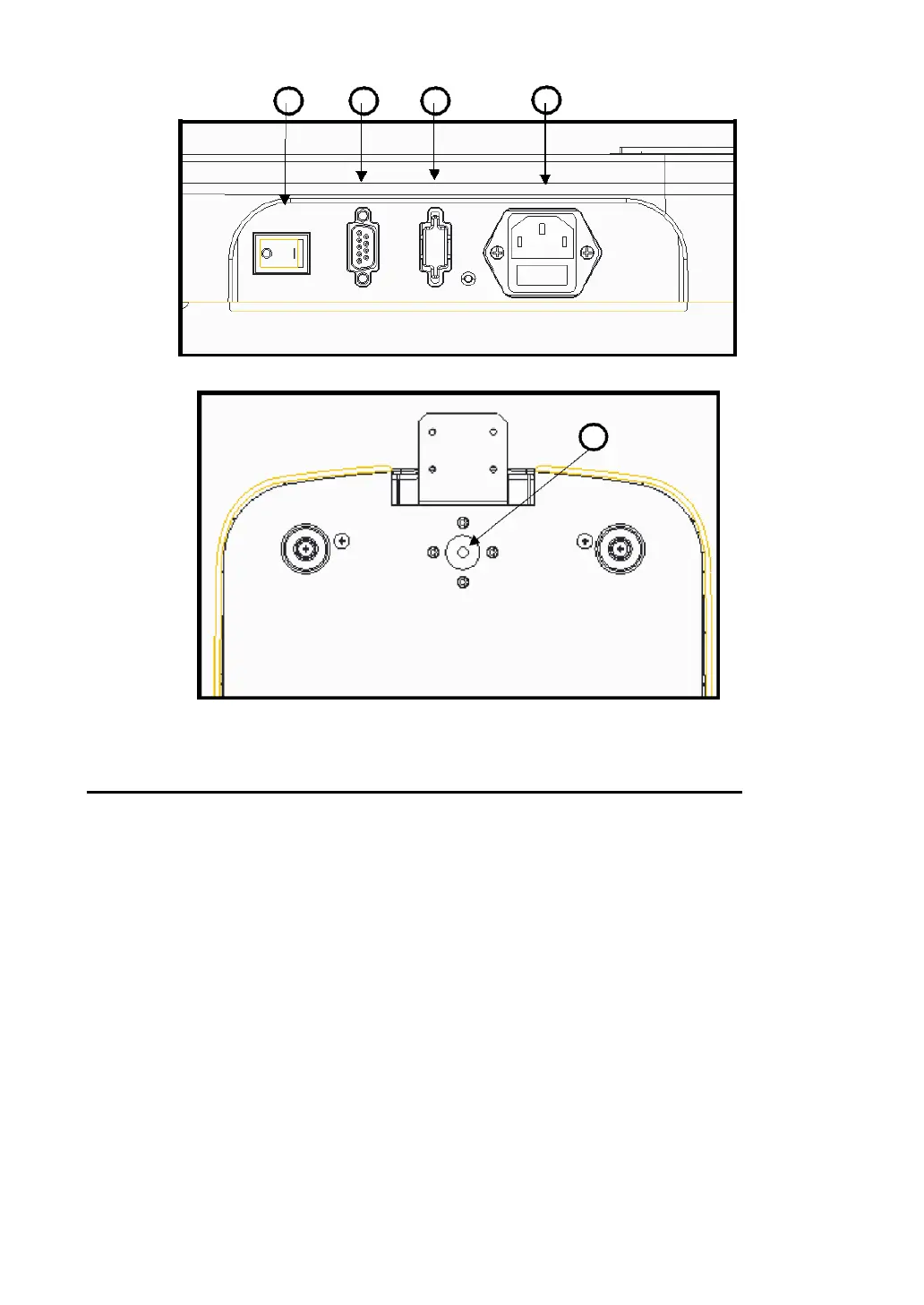

1. Power supply socket (Fuse holder): Socket that connects with the outside power
plug (250V T3.15AL)
2. Serial interface connector: Connector for connecting outside device connector
3. RGB connector: Connector for connecting with the outside monitor of the RGB method
4. Power switch: switch for turning the power on or off
5. Clamping bolt: Fixate system stage
! NOTE
Noise may appear on the screen when connecting with outside monitor due to the length and
type of the cable and monitor quality.
Use signal amplifier if the distance with the outside monitor is significant.
