LX Era
Advanced operation
Document name: LX EUM
Document revision: R1
4.1 Main page
The main page holds primary flight information. It consists of the digital needle scale, the
only feature shared across all Era screens and pages, a clock, either two or four user settable
indicators, status indicators, a wind indicator and OAT indicator.

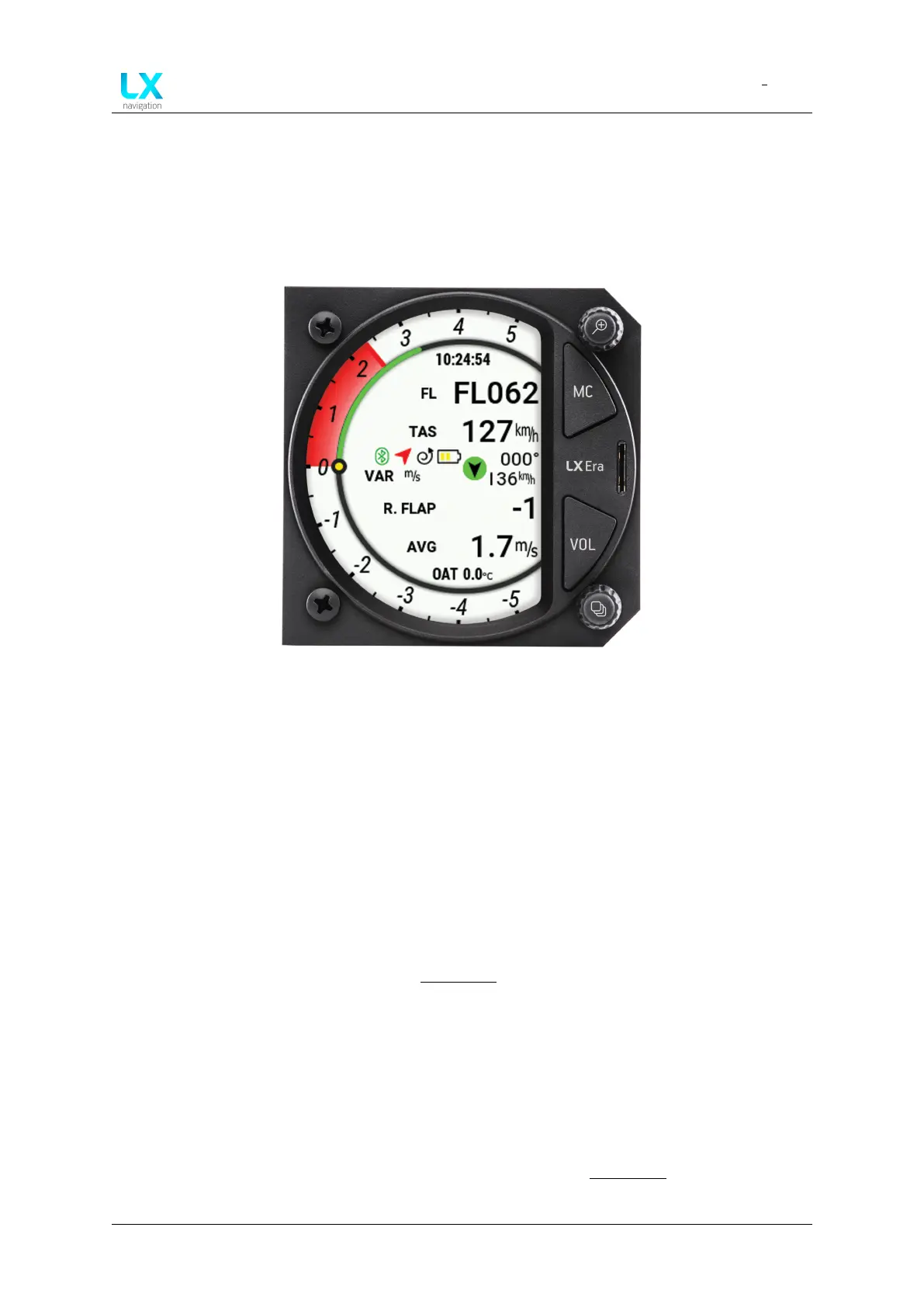

Figure 2. Main page overview
4.1.1 Digital needle scale
The Era does not use a needle-type pointer for showing values on the circular scale, but rather
a solid colour.
Positive values are shown with a solid red arc, ranging from 0 to the actual value. Negative
values are shown with a solid blue, ranging from 0 to the actual value. The solid arcs and their
large surface and potent colours help show the desired values in a very clear attention-drawing
manner. The impact of solid area digital needles is shown with the two figures below.
The digital needle scale can be set in the Indicators menu to shown one of the following flight
parameters:
Vario
SC
Netto
Relative
G-force
For more information on how to set the digital needle, check the Indicators part of the manual.
