4.12 Airspace page
The ’Airspace’ page is intended for informing the pilot of the airspace surrounding him.
The Era looks up all airspace in the vicinity of the pilot’s current location and lists them in
regards to distance. The list shows airspace name, type and horizontal distance.

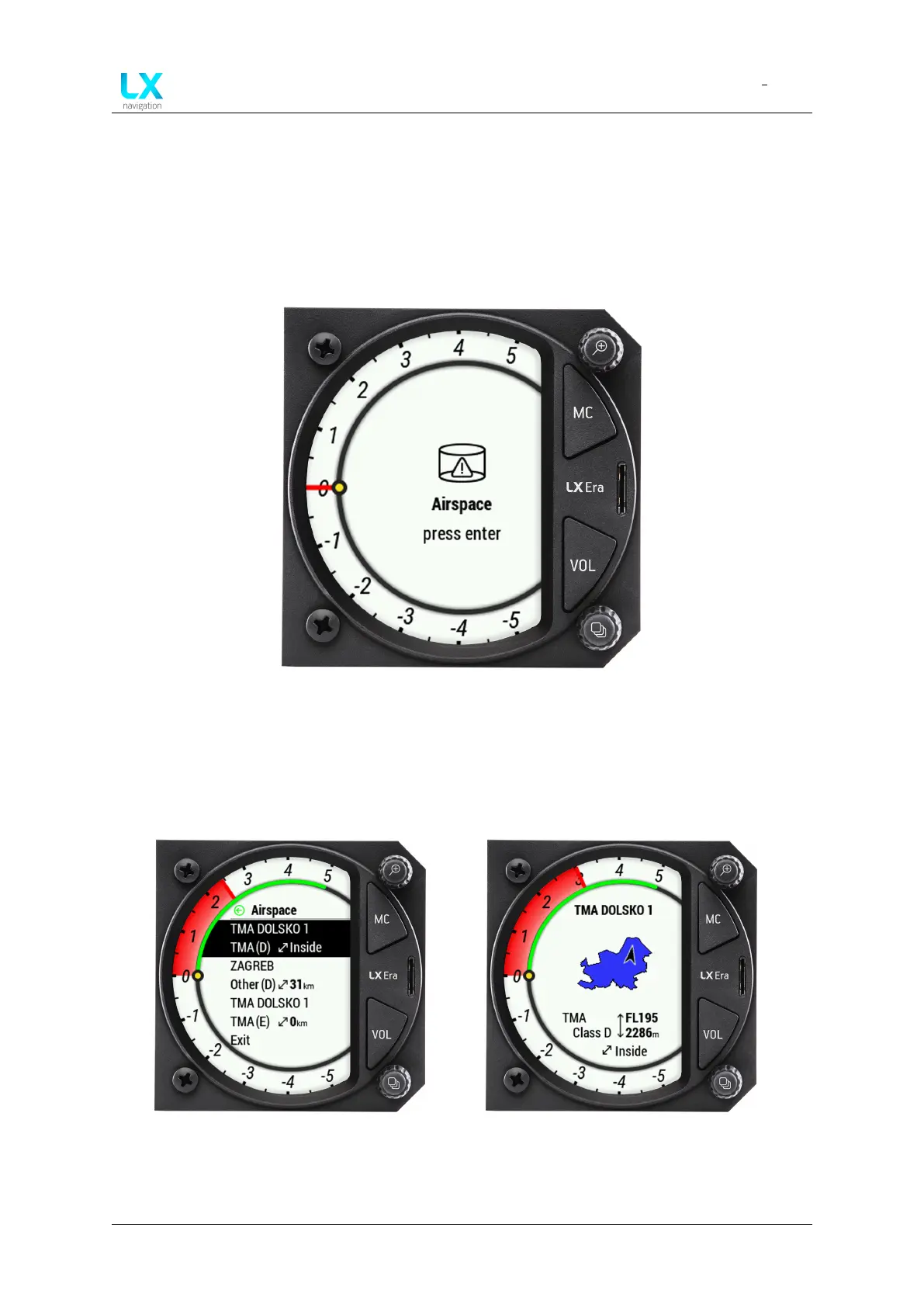

Figure 60. Airspace page
Selecting an airspace, a new screen with the airspace shown graphically, with your relative
location shown, as well as type, vertical and horizontal distance and whether you’re inside or
out.
Figure 61. List of airspaces Figure 62. Airspace detials
Device manual Public 49
