LX Navigation Era Series User Manual

LX Era
LX Joy
Document name: LX EUM
Document revision: R1
LX Joy
The LX Joy (short for Joystick) is a remote control unit for the Era, which attaches to the
aircraft’s flight control stick. Using the Joy with the Era, you can access all available settings,
without touching the Era itself.
Please note that the LX Joy is compatible with the LX Era, LX Eos and LX 10k units. Since not
all of the buttons are required for the full operation of the Era, some LX Joy buttons are without
function.
In general, the Joy input interface consists of five front-facing push buttons, a central penta-
directional (up, down, left, right and push) joy button, a front facing LED and a SC push button
on the back side (facing the instrument panel).

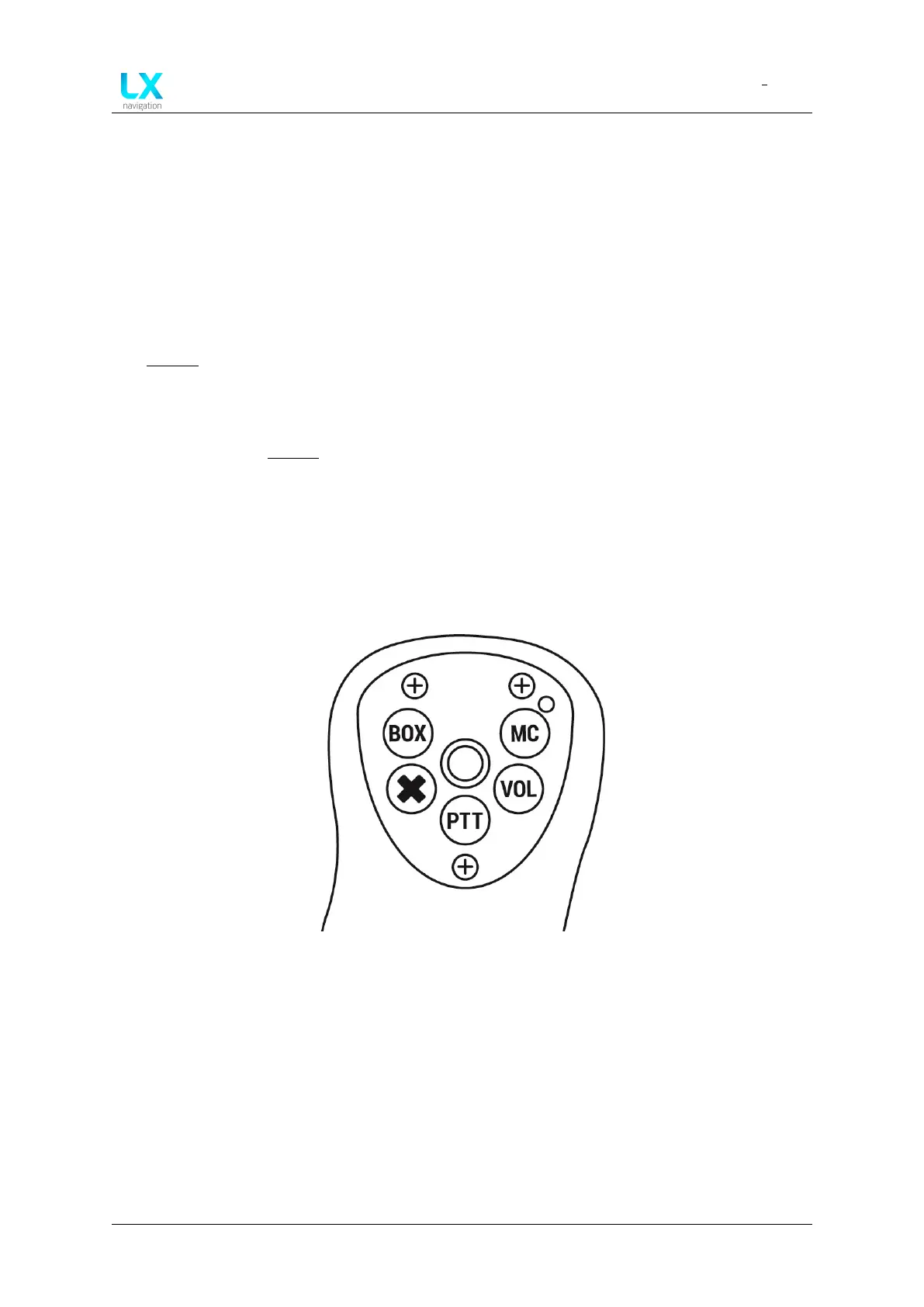

Figure 74.
The central button is used for main navigation throughout the Era OS. It mimics the turning of
both the upper and lower push-rotary knobs and pressing the lower push-rotary knob, in the
following way:
• Left/Right - mimics turning the lower push-rotary knob
• Up/Down - mimics turning the upper push-rotary knob
• Pressing - mimics pressing the lower push-rotary knob
The MC button will mimic the pressing of the MC button on the Era.
Device manual Public 79
