LX Era
Advanced operation
Document name: LX EUM
Document revision: R1
Two lines can be seen on the screen, first one is showing the direction of your movement, your
track, and the second one is showing the direction to your chosen turnpoint, the destination
line. Colours can be changed in the Graphics setup menu.
Rotating the top push-rotary knob will change the zoom level.
Pressing the top push-rotary knob will open the TP info sub-page, showing Bearing, Distance,
Final glide and Elevation, if available.

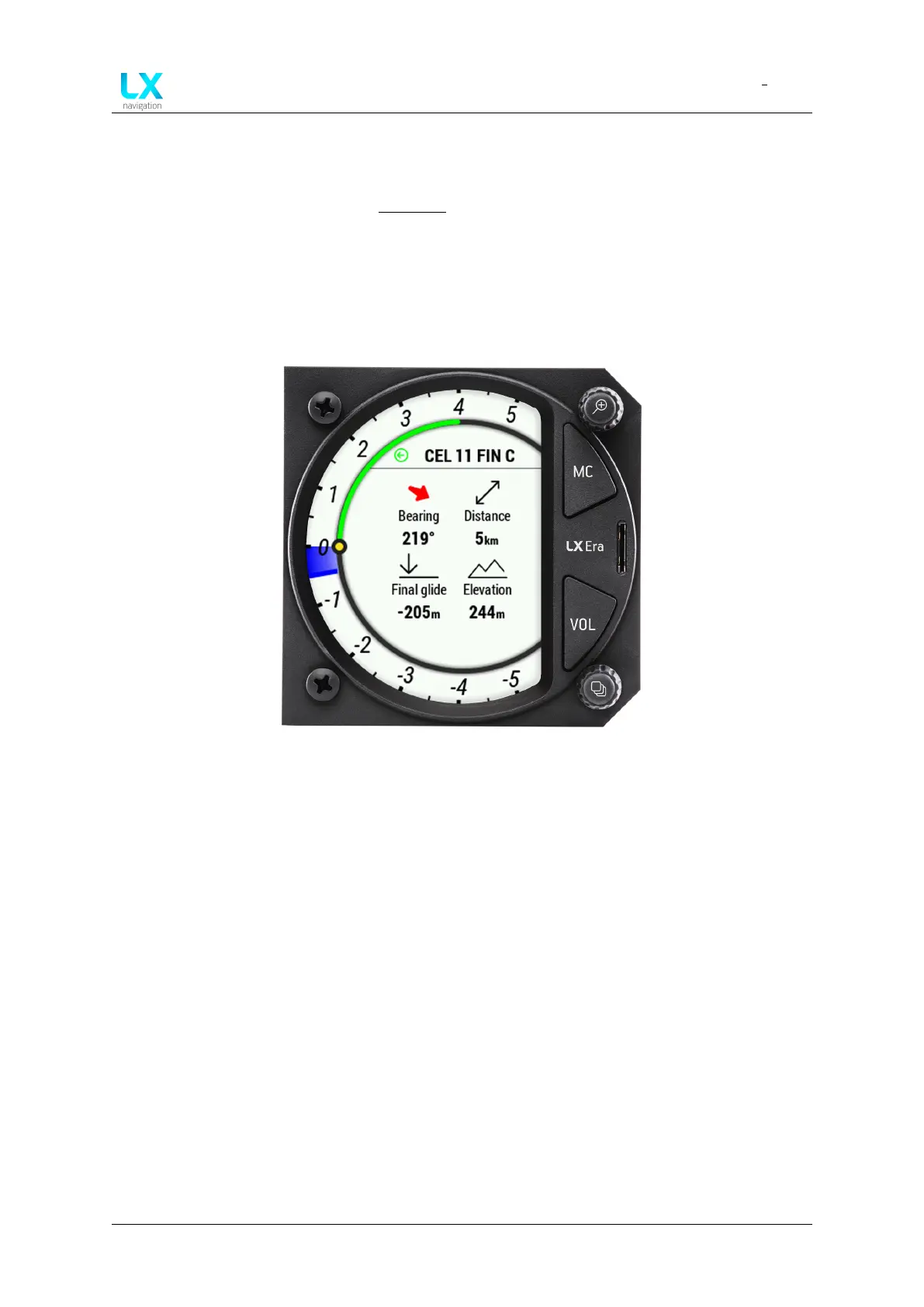

Figure 36. Turnpoint additional info
Above the Bearing, an arrow is shown. The arrow can be either green or red, green indicating
the turnpoint is within final glide and red indicating it is out of final glide. The direction of the
arrow indicates the steering course, relative to your current track.
If the arrow is red in colour and pointing directly to the right, it means the turnpoint is out of
final glide and you should turn 90° to the right in order to be on track to the turnpoint. The same
logic is used in other navigation pages, as well as in the select airpor t and select turnpoint
menu.
Rotating the top push-rotary will change the zoom level. You can choose between different
zoom levels, ranging from 0.2 to 125 km, not including the task zoom.
Pressing the lower push-rotary knob, you will enter the ’Select turnpoint’ sub-page. Here, a
selection of turnpoints will be shown, along with distance and bearing, as well as steering
course (relative bearing) as described earlier, with an arrow. These points can be sorted by
either Distance, Name, or Code.
Device manual Public 31
