Burner Removal & Cleaning
23
Orifice Cleaning:
With the burner removed, remove the orifice and shine a flashlight through the opening
to ensure there is no blockage. Use a needle to clear any debris. Be extremely careful not to
enlarge the hole or break off the needle.
Reassemble The Burners:
Replace the burner by
sliding the air shutter over the
brass orifice, centering it in the
hole. Be careful not to upset the
air shutters original position
(unless readjusting). Lower the
rear of the burner onto the sup-
port channel at the rear of the
burner box. Make sure it is level
and does not rock. Light all of
the burners and check for proper
flame characteristics. If adjust-
ments are necessary, refer to
the Adjustments Section (page
10).
It is critical to center the burners on the orifices properly. If the burners
are not centered correctly, a very dangerous condition exists that can cause per-
sonal injury and damage to the product.
SPIDER AND INSECT WARNING!!!
Spiders and insects can nest in the burners of this or any other grill, and cause the gas
to flow from the front of the burner. This is a very dangerous condition which can cause a fire to
occur behind the valve panel, thereby damaging the grill and making it unsafe to operate.

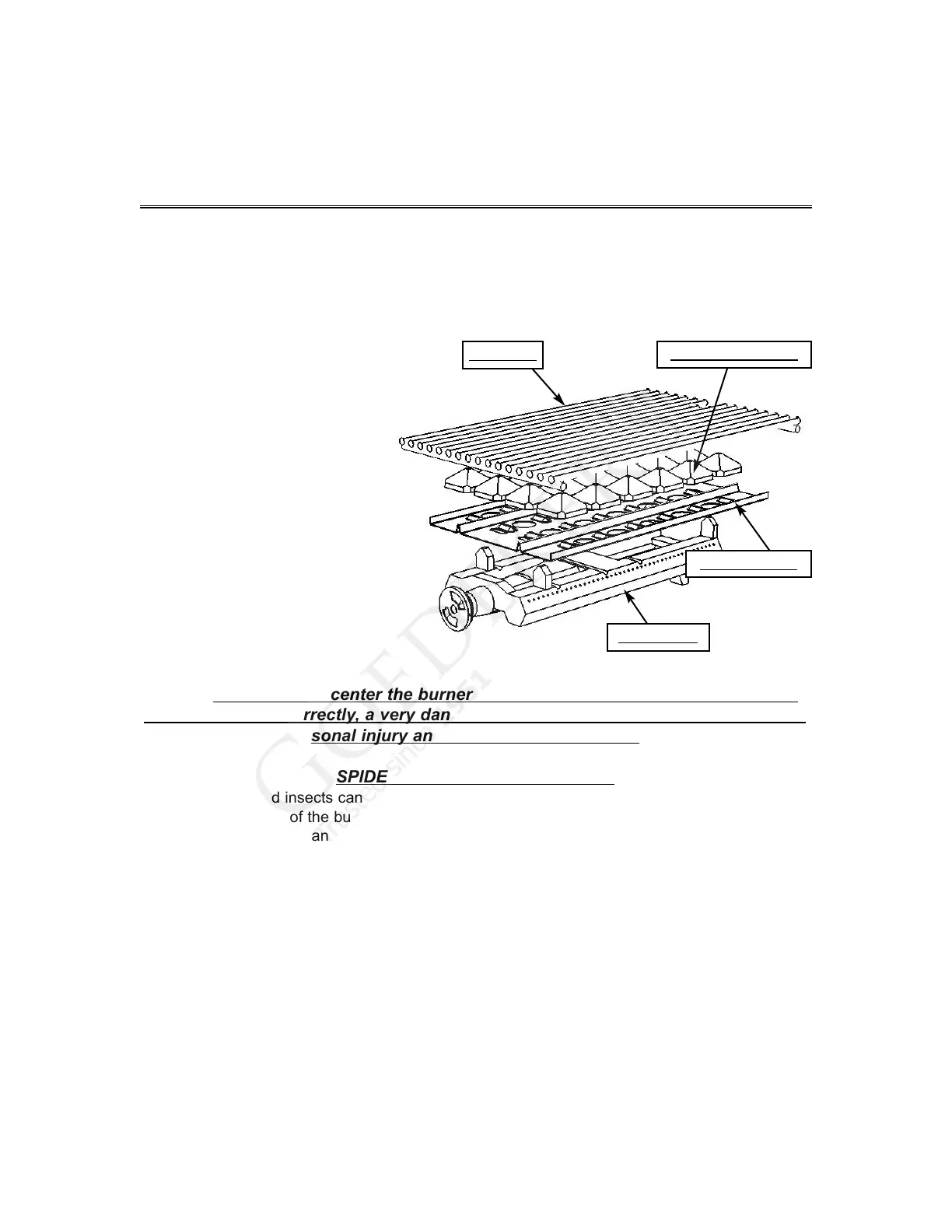

Grill Rack
Ceramic briquette
Briquette Tray
Grill Burner
Rev. 04/2005
