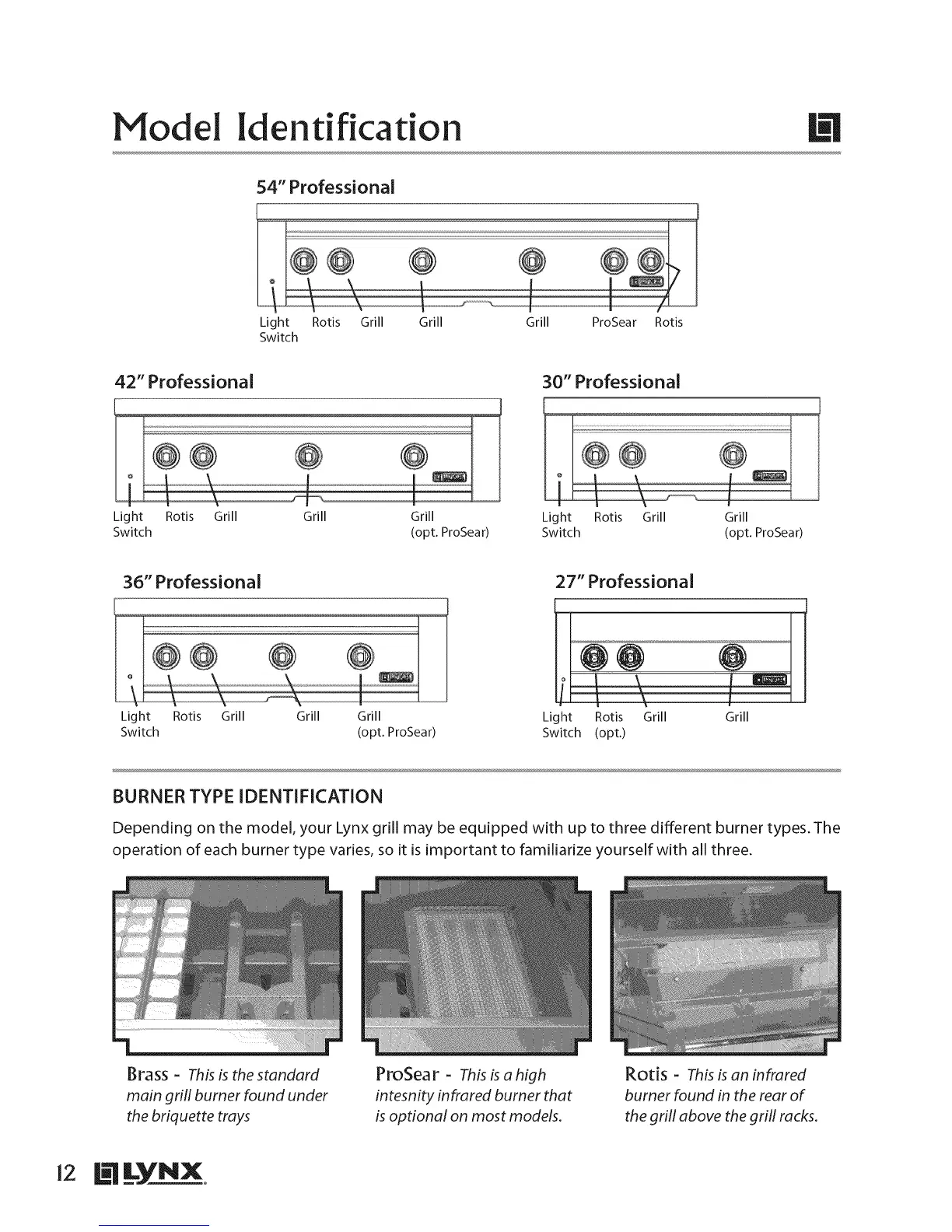

Model Identification
54" Professional
Light Rotis Grill
Switch
Grill Grill ProSear Rotis
42" Professional 30" Professional
Light Rotis Grill Grill
Switch
Grill
(opt. ProSear)
Light Rotis Grill Grill
Switch (opt. ProSear)
36" Professional
Light Rotis Grill Grill Grill
Switch (opt. ProSear)
27" Professional
@@ @
I \
Light Rotis Grill Grill
Switch (opt.)
BURNER TYPE IDENTIFICATION
Depending on the model, your Lynx grill may be equipped with up to three different burner types, The
operation of each burner type varies, so it is important to familiarize yourself with all three,
Brass - This is the standard
main gril! burner found under
the briquette trays
ProSear - This is a high
intesnity infrared burner that
is optional on most models.
Rotis- This is an infrared
burner found in the rear of
the grill above the grill racks.
J2 @LyNx
