34
► Keep threading compound
off of the rst two pipe
threads to avoid having
any small pieces of
compound break loose and
clog a burner valve or
orice. Do not use
threading compound on
any are ttings.
For
built-in installations, it is rec-
ommended that any exible
pipe used be kept as short
as possible. (See INDEX: “Gas
Connections” for typical permanent
hook up.)
For
freestanding
units using
natural gas, Lynx strongly
recommends using a quick
disconnect kit.

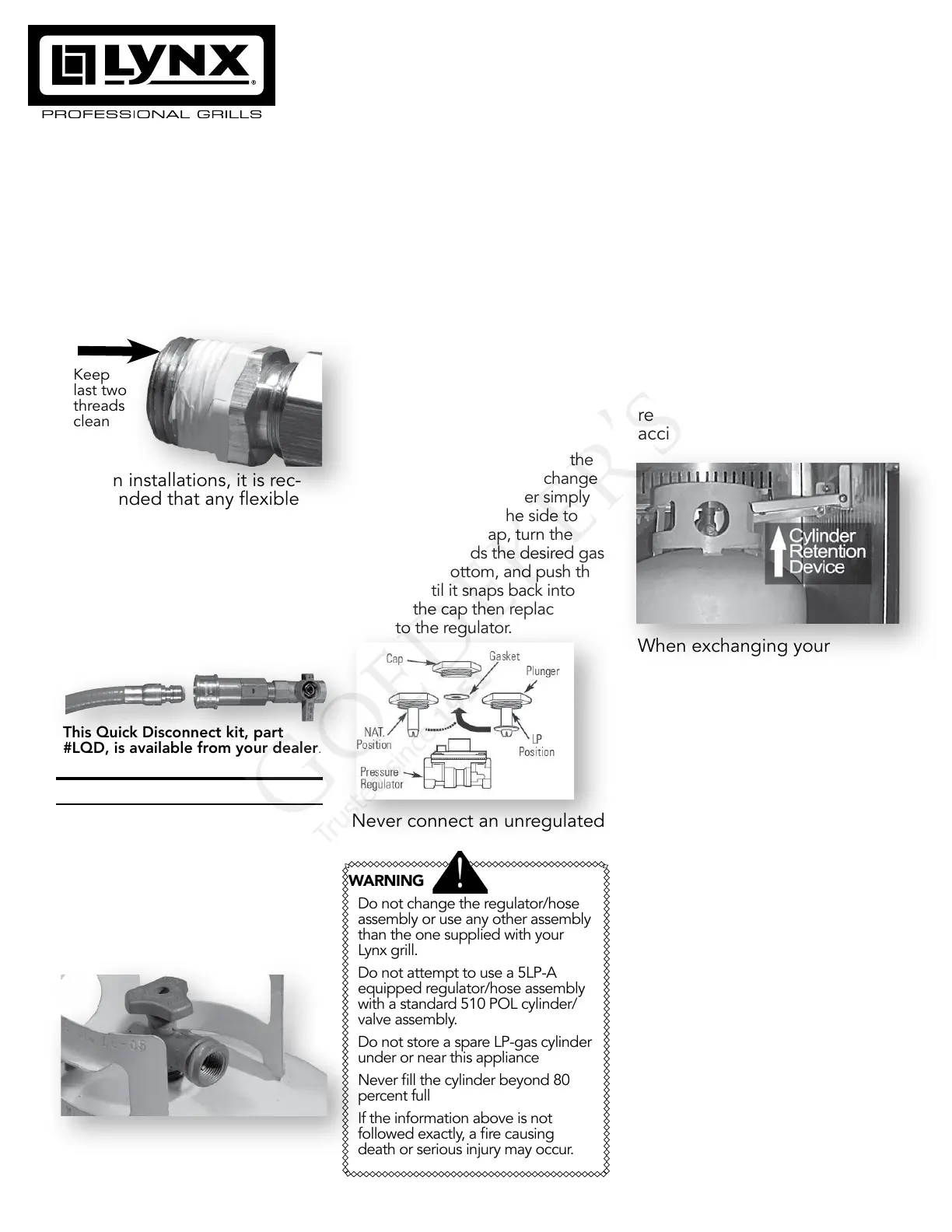

This Quick Disconnect kit, part
#LQD, is available from your dealer
.
LP GAS
Grills set up for LP gas come
equipped with an LP hose/
regulator assembly for con-
nection to a standard 20 lb. LP
cylinder. (Type 1). All ttings
necessary to attach the
assembly to the grill are
included.
Keep
last two
threads
clean
LP cylinder with type 1 valve
connection
Permanently plumbed LP con-
nections, such as those in line
with a bulk cylinder, require
a 4/11 regulator. (Lynx P/N
30781)
When using the 4/11 regulator
you must ensure that it is set for
the proper fuel type. This is done
by removing the regulator cap and
gasket and looking at the bottom
of the plunger to see what fuel
type is visible. This is the regulator
fuel setting. NAT is for natural gas
and LP is for propane gas. The LP
setting can be further identied
by the large diameter disk on the
bottom of the plunger. To change
from one gas to the other simply
push the plunger to the side to
snap it out of the cap, turn the
plunger so it reads the desired gas
type on the bottom, and push the
plunger until it snaps back into
place in the cap then replace the
cap into the regulator.
Never connect an unregulated
gas line to the grill.
warning
Do not change the regulator/hose
assembly or use any other assembly
than the one supplied with your
Lynx grill.
Do not attempt to use a 5LP-A
equipped regulator/hose assembly
with a standard 510 POL cylinder/
valve assembly.
Do not store a spare LP-gas cylinder
under or near this appliance
Never ll the cylinder beyond 80
percent full
If the information above is not
followed exactly, a re causing
death or serious injury may occur.
LP Cylinder
Requirements
The LP cylinder must be con-
structed and marked in accor-
dance with the specications
for LP gas cylinders of the U.S.
Department of Transportation
(DOT) and designed for use
with a Type 1 system only.
Cylinders of free standing
grills must be secured using
the provided cylinder
retention system to avoid
accidental movement.
When exchanging your
cylinder for a rell, exchange
only for a Type 1 20lb cylinder
with an over-ll protection
device.
Never use a cylinder with a
damaged valve.
A dented or rusty LP cylinder
may be hazardous and should
be avoided. If in doubt, have
it checked by your LP supplier.
Always check for leaks after
every LP cylinder change.
(See INDEX: “Leak Test” for further
details.)
Always shut off the LP-gas
supply at the cylinder when
the grill is not in use.
Cylinders must be stored
outdoors in a well-venti-
lated area out of the reach of
children. If your grill is stored
indoors, the LP cylinder must
be stored outside.
