INITIALIZING THE REMOTE CONTROL SYSTEM- REFERENCE ONLY
Locate the wireless wall switch, and press the “OFF” button. Confirm that the red LED flashes. The LED will flash every
time that any of the 4 buttons is pushed. This confirms that the unit is functioning, and that the button selection has
been confirmed. NOTE: in ALL cases, the remote controls have already been factory initialized. Press the ‘ON’ button
on the wallswitch to confirm. You will hear ‘clicking’ coming from the heater. Press the ‘OFF’ button immediately and
proceed to the next section ‘BASIC OPERATION OF YOUR HEATER’.
The receiver is located inside the valve compartment and is accessible through the louvered plate on the right END CAP
of the heater. If this plate is still off from the battery installation, then proceed to the next paragraph. Otherwise,
remove the 2 screws holding the end plate in position, and rotate the plate, from the bottom, until the plate is free from
the heater. Allow the plate to hang below the heater (it is connected to the battery wires).
Look inside the compartment and locate the black vinyl cover cap on the side of the module enclosure. Peel the cap off
with your finger nail or screw driver. Look inside the box and notice the small botton on the side of the receiver. This is

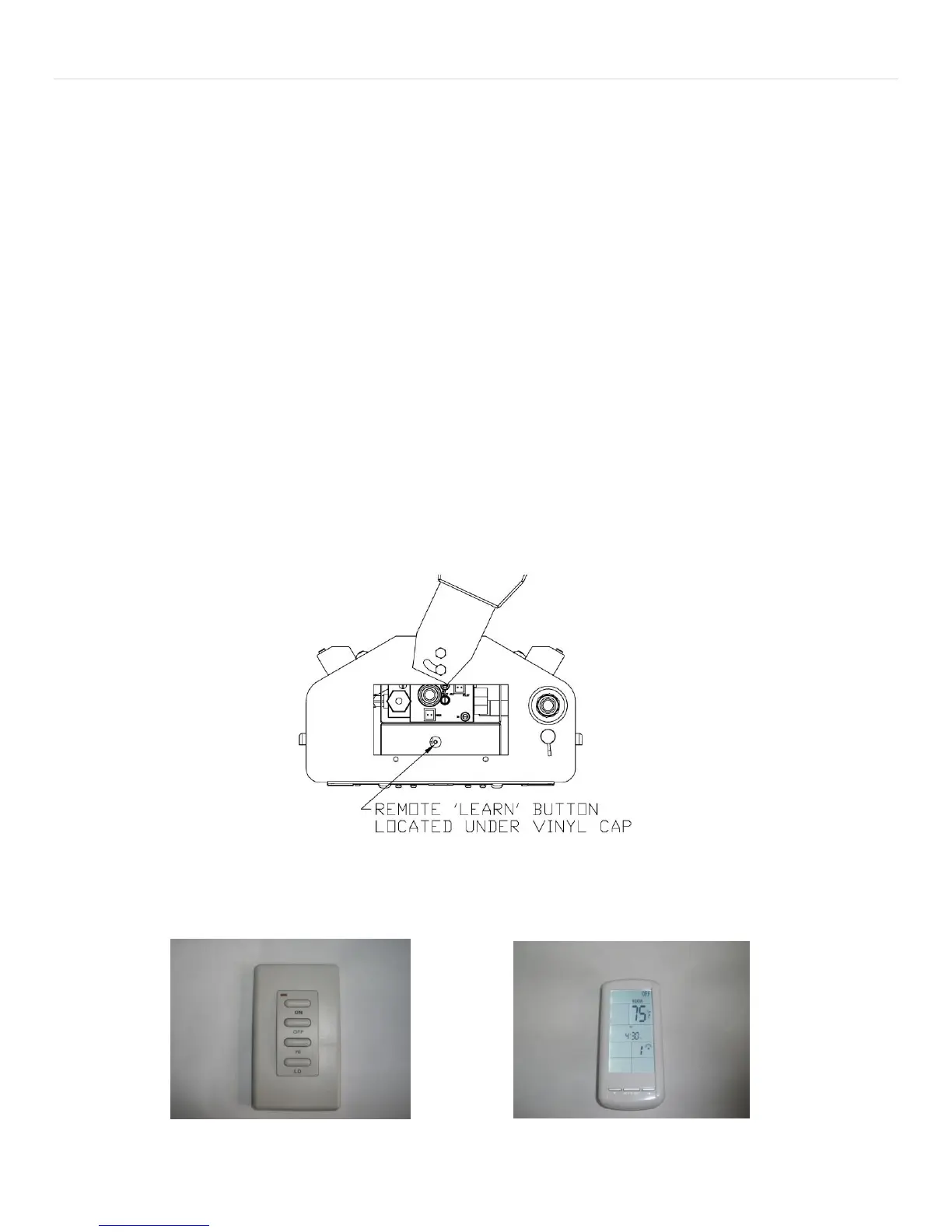

the LEARN button. See illustration below. With the wall switch in one hand, and a paper clip or the tip of a writing pen
in the other hand, press the ‘LEARN’ button of the receiver. Release the LEARN button. You will hear one beep. Now
press the ‘ON’ button on the wall switch. Once the code is accepted, you will hear four beeps in rapid succession. You
should now hear the pilot sparking rapidly. This indicates that your programming was successful. If the pilot did not
begin to spark, then repeat the above process. After programming, press the ‘OFF’ button to turn the system off.
NOTE: the wireless wall switch can now be mounted (if not previously mounted), on a flat surface, at your
predetermined location. Use the screws provided with the switch or double sided tape for mounting (not provided).
WIRELESS WALL SWITCH TOUCH SCREEN REMOTE CONTROL
