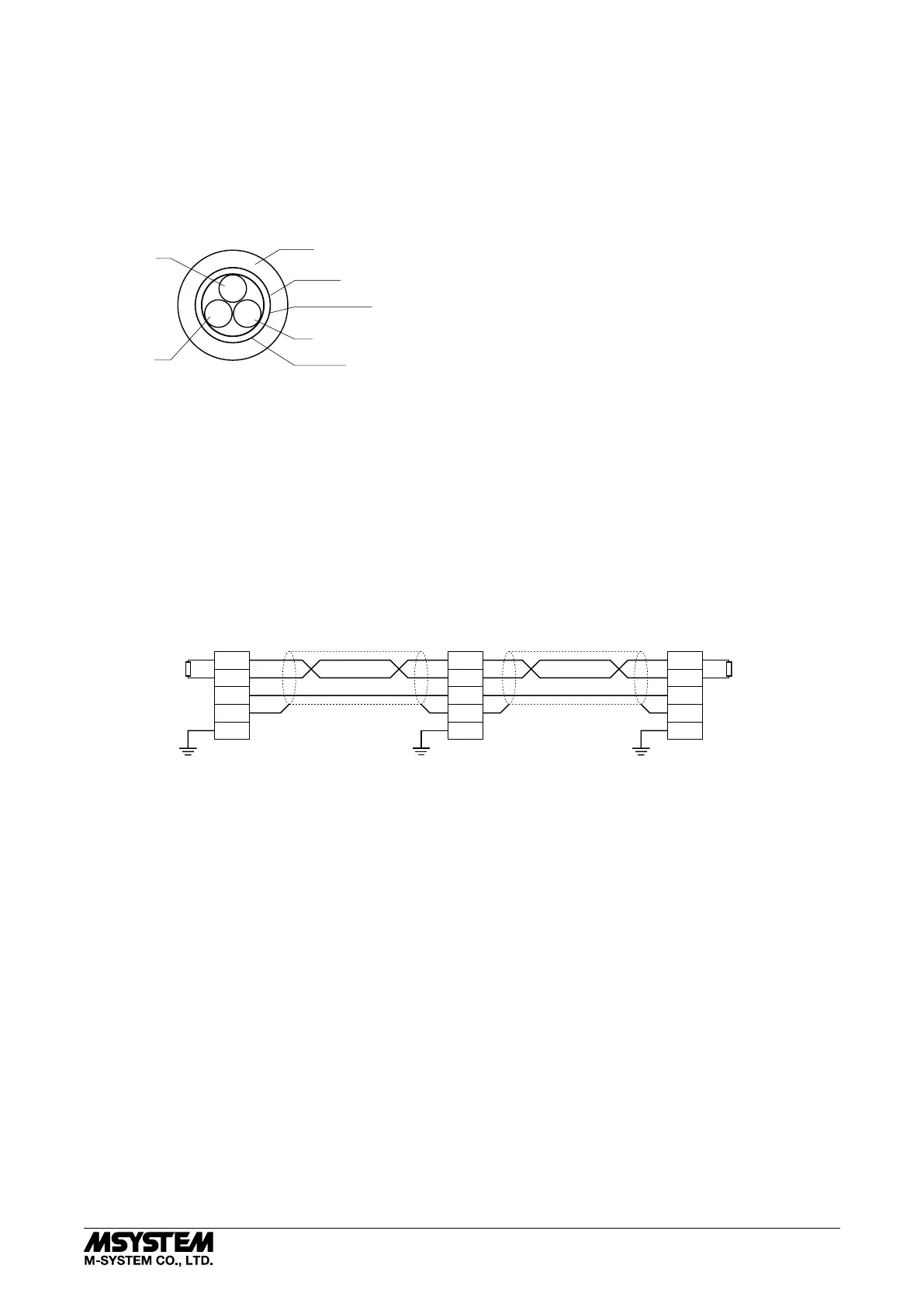

8. CONNECTING DATA LINK WIRES
The following explanations apply to the wires connecting the 60C to the Master Unit.
8.1. TWISTED-PAIR CABLE
The following types of wire are recommended for connecting the 60C to the Master Unit.
KURAMO ELECTRIC FANC-SB 0.5 mm
2
× 3 or equivalent
white
blue
yellow
Sheath
DA
Shielding
Aluminum Tape
DG
Grounding
DB
8.2. POINTS OF CAUTION IN HANDLING WIRES
DO NOT apply extraordinary forces to the wires as explained in the following:
1) DO NOT SQUEEZE the wires with a sharp-edged tool.
2) DO NOT TWIST the wires extraordinarily.
3) DO NOT PULL the wires extraordinarily tight.
4) DO NOT TRAMPLE on the wires.
5) DO NOT PUT objects onto the wires.
6) DO NOT DAMAGE the insulation tube of wires.
8.3. WIRING DIAGRAM
Connect the 60C to the Master Unit as shown below.
DA
DB
DG
SLD
FG
MASTER UNIT
DA
DB
DG
SLD
FG
ANALOG I/O MODULE
DA
DB
DG
SLD
FG
I/O UNIT
TERMINATOR
blue
white
yellow
60C
