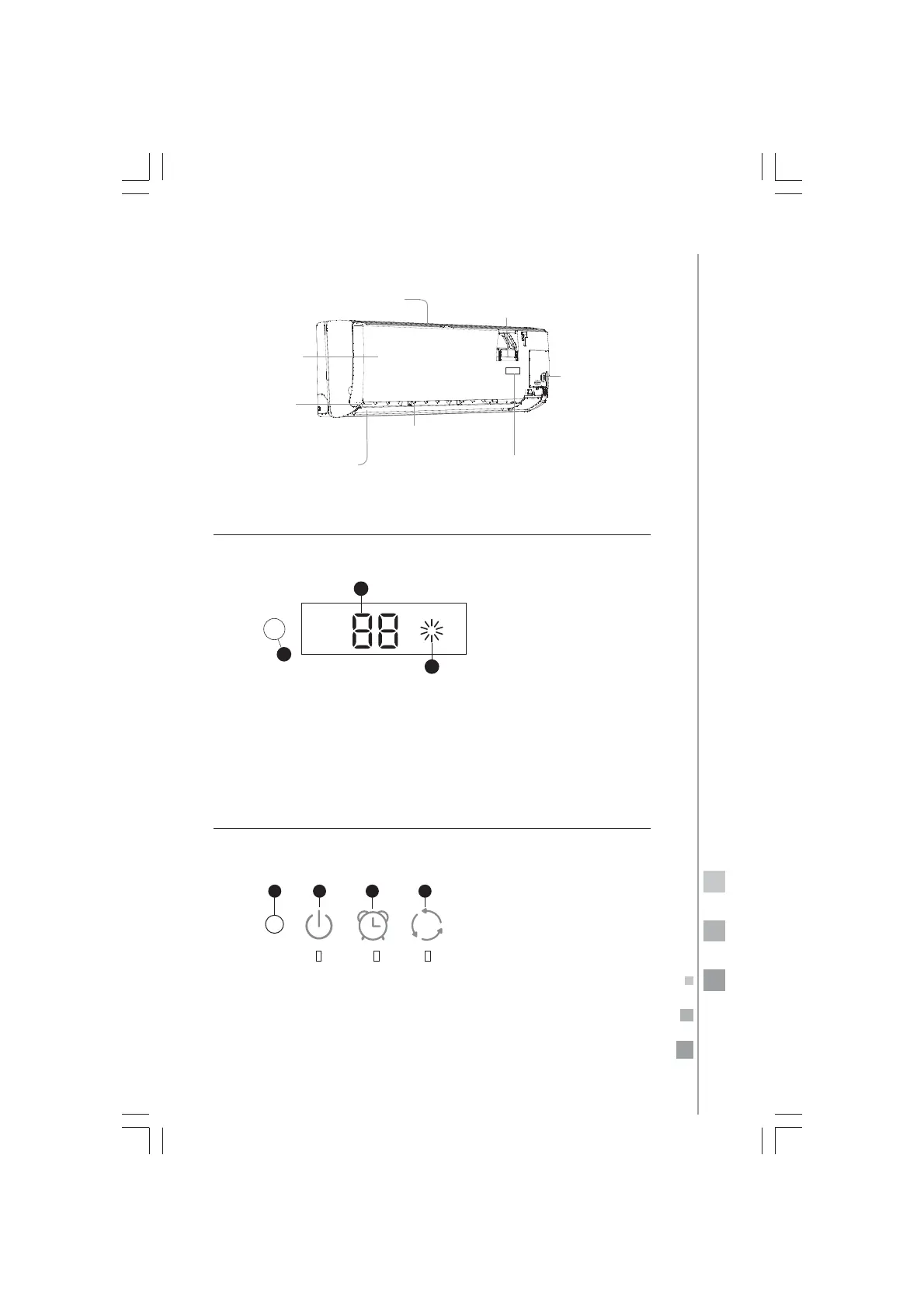

indoor unit
display board B
1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal,
display the set temperature.
3. Operation mode indicator (lights up when the compressor is on.)
Inlet
Air purifying filter
(inside)
Inlet grille
Outlet
Horizontal louvers
(Adjust up and down air
flow. Do not adjust them
manually)
Vertical louvers
(Adjust left and right
air flow)
Display
Emergency
switch
display board C (on models having only LED
indicators)
1. Remote control signal receiver. A beep is heard when a signal
from the remote control is received.
2. Power indicator. Lights up when the unit starts.
3. TIMER mode indicator. Lights up when the TIMER operation is se-
lected.
4. Operation mode indicator. Lights up when the compressor is on.
2 3 41
To Next Page
