77
A = 113 mm
30 mm
B = 60 mm Ø
A = 120 mm
30 mm
B = 60 mm Ø
A = 41 mm
20 mm
B = 60 mm Ø
A = 45 mm
21 mm
B = 60 mm Ø
indoor unit

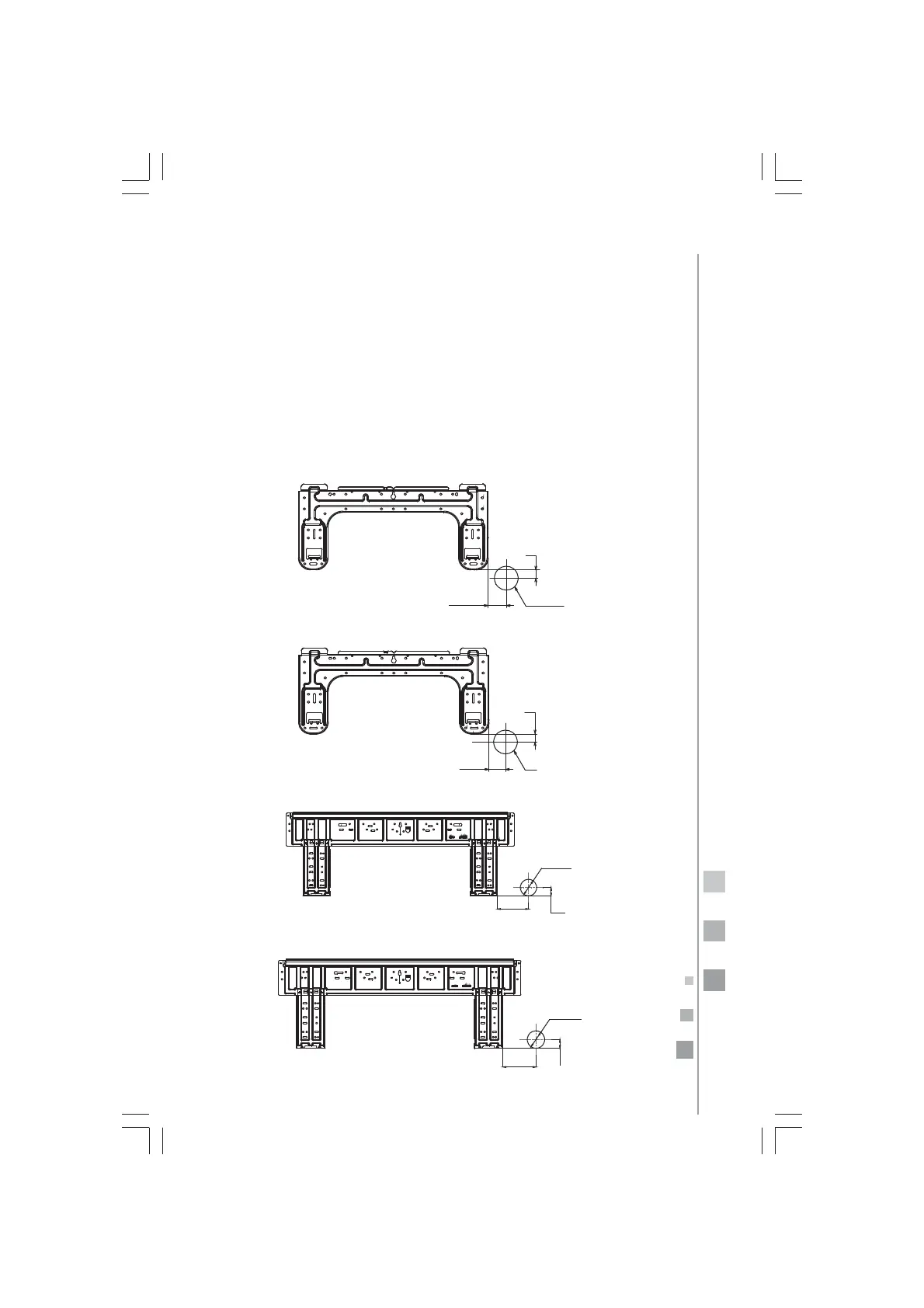

1. Fitting of the mounting plate and positioning of the wall
hole.
1. Carry out based on the neighboring pillars or lintels, a proper lev-
eling for the plate to be fixed against the wall, then temporarily
fasten the plate with one steel nail.
2. Check again the proper level of the plate by hanging a thread
with a weight from the central top of the plate, then fasten se-
curely the plate with the attachment steel nail.
3. Find the wall hole location "A" using a measuring tape.
When the mounting plate is first fixed
For 9 000 BTU/h systems
For 12 000 BTU/h systems
For 18 000 BTU/h systems
For 24 000 BTU/h systems
