HC MM 1P/XP:
Electric plant with 1 pump
Is provided with the connection cables (*).
Connect the output cable (earthing, monophase line, shield) to the monophase standard type
electropump 230 Vac.
Connect the three-wire input cable (phase, neutral, earth) to the mono-phase mains at 230 Vac
using a thermal switch of dimensions suited to the electro-pump data plate details.

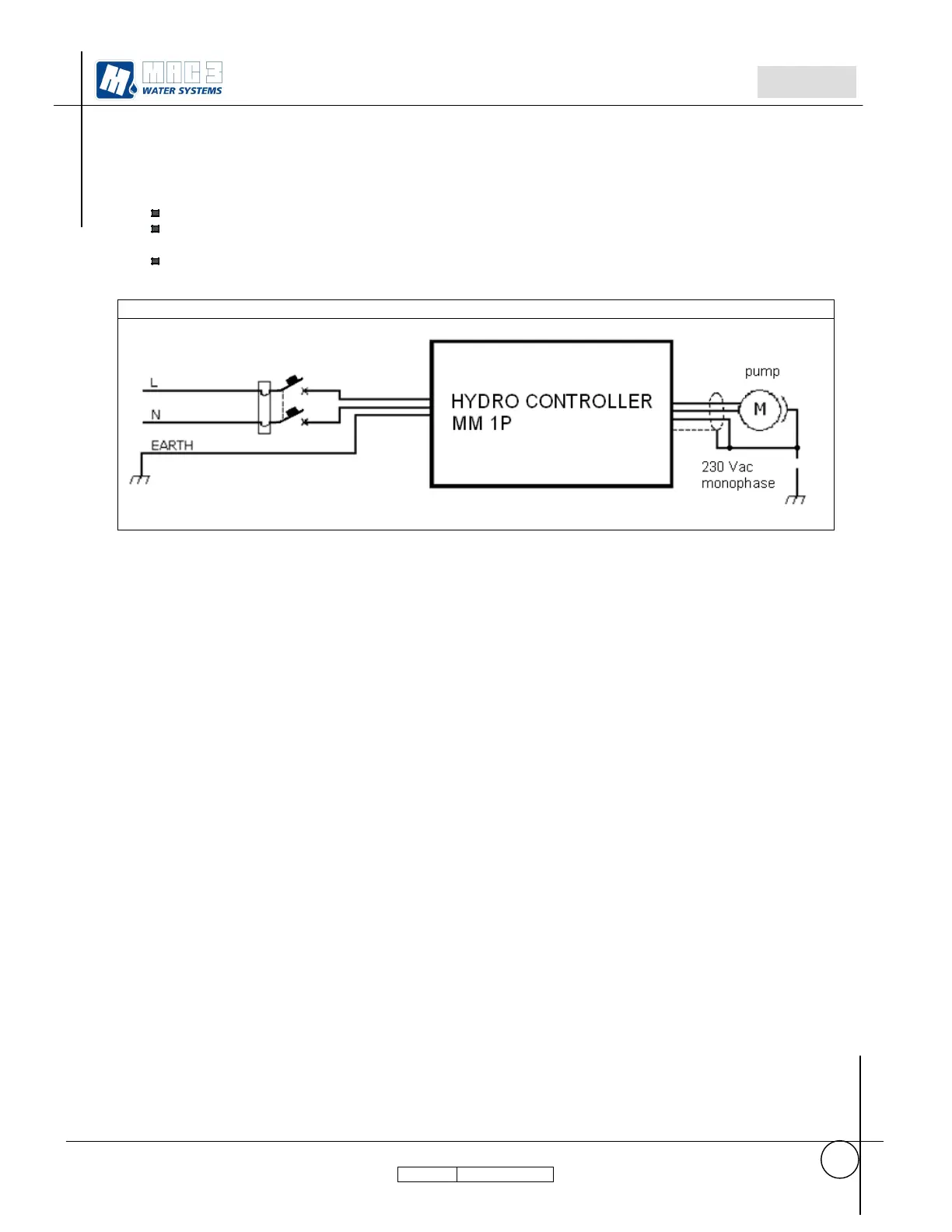

Wiring diagram for the one pump model
