User Guide HC - Copyright © 2008 MAC3. All right reserved.
Disegno 6328
27
Via Baldanzese, 149 50041 Calenzano FI
Tel. 055 8877672 – Fax 8877068
www.mac3.it - e-mail: mac3@mac3.it
Electric plant with 3 pumps monophase
Is provided with the connection cables and serial cable RS 485 for communication
Master/slave.
Connect the output cable (earthing, mono phase line, shield) to the single phase standard type
electropump 230 Vac, max 1,2 Hp.
Connect the three-wire input cable (phase, neutral, earth) to the mono-phase mains at 230
Vac using a thermal switch of dimensions suited to the electro-pump data plate details.

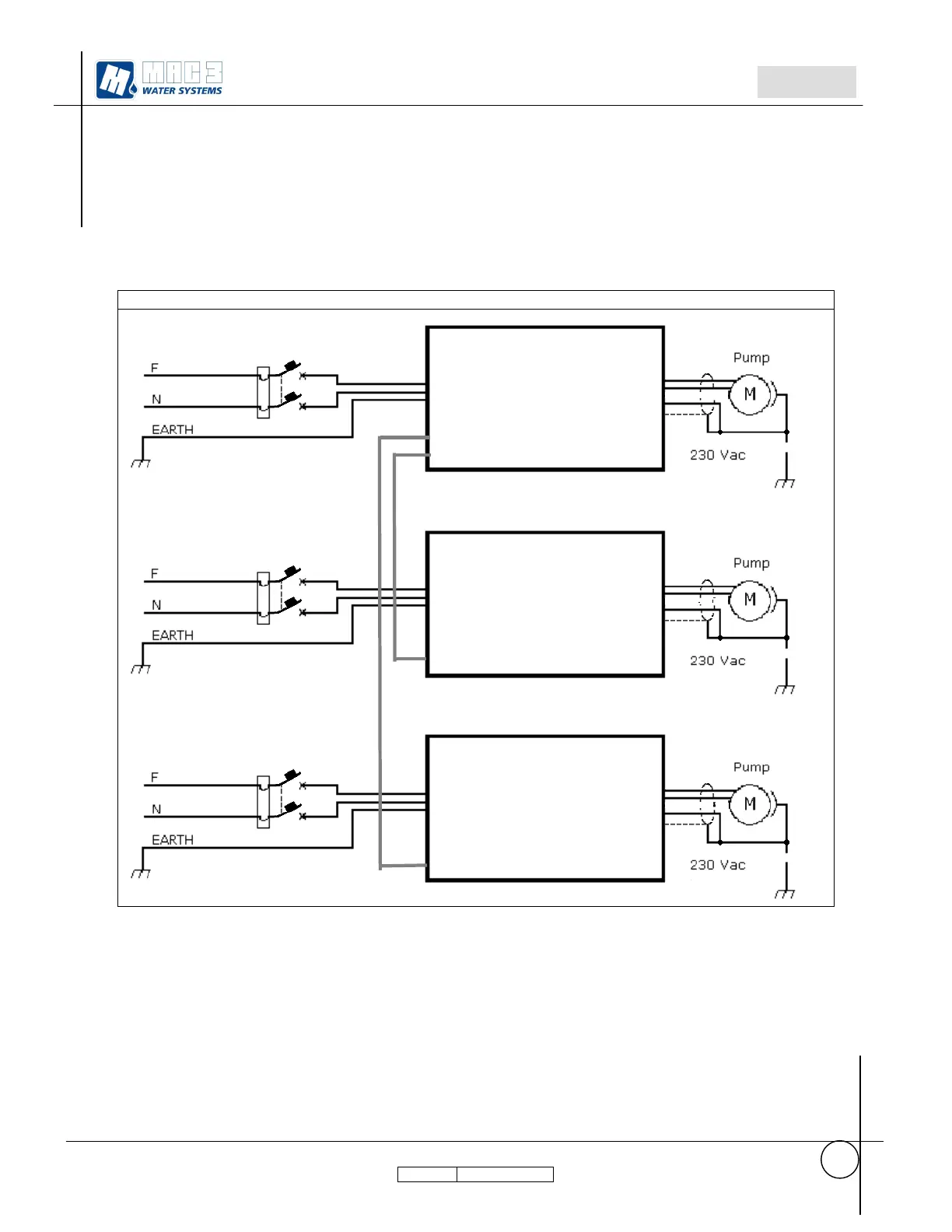

Wiring diagram for the 3 pump model
Cavo seriale
RS 485
Hydrocontroller
MASTER
Hydrocontroller
SLAVE 1
Hydrocontroller
SLAVE 2
