MACDEV PRIME - Prime Specifications

ITEM NO.
PartNo
DESCRIPTION QTY.
1 X6BODY Body 1
2
VXDETENT Detent 2
3
X6FRAME Frame 1
4
X6WRAP Wrap around Grip 1
5
C6MPAD Membrane pad 1
6
9VBAT 9V battery 1
7
X5SHPRA Regulator assembly 1
7.1
X5SHPRP Inline regulator piston 1
7.2
X5HPRAB Regulator adjuster body 1
7.3
C6REGFC Regulator cap 1
7.4
C6REGR Regulator retainer 1
7.5
X5SSEAT Seat 1
7.6
C6LPRS Regulator spring 1
7.7
OR8 Number 8 o-ring 2
7.8
OR11 Number 11 o-ring 2
7.9
OR12 Number 12 o-ring 1
7.10
C6FIL Filter 1
7.11 X5SHPRAR Adjuster retainer 1
7.12 X5SHPRAC Adjuster cap 1
7.13 X5SHPRAV Adjuster valve 1
7.14 X5SHPRAS Adjuster spring 1
7.15 ORM3 M3 o-ring 1
8 X6TRIGA Trigger Assembly 1
8.1
X6TRIG Trigger 1
8.2
X6TRIGG Trigger guide 1
8.3
S6-3-16 Trigger short screw 3
8.4
VXTBEAR Trigger bearing 2
8.5
S6-3-16-C S6-1-4 screw 1
8.6
C6TSPRING Trigger spring 1
8.7
S6-1-2 Trigger long screw 1
8.8
X6TRIGP Trigger pin 1
8.9
C3-1-2 Trigger assembly mount screw 2
9
B5-3-16 B5-3-16 screw 5
10
C6MPADS Membrane pad screw 1
11
C4-1-8 Eye cover screw 2
12
B7-1-4 Frame mount screw 3
13
C8-5-16 Front grip core screw 1
14
C7-5-16 C7-5-16 screw 2
15
X6ASA ASA assembly 1
15.1
X6ASAB ASA body 1
15.2
C3-3-4 ASA lever screw 1
15.3
X6ASAL ASA Lever 1
15.4
X6ASAP ASA Pin 1
15.5
X6ASAR ASA Retainer 1
15.6
X6ASAS ASA Spring 1
15.7
OR7 Number 7 o-ring 2
15.8 OR8 Number 8 o-ring 1
15.9 OR5 Number 5 o-ring 1
16 DXSOL Solenoid 1
16.1
D2SOLG Solenoid gasket 1
17
X6FTA Feed tube assembly 1
17.1
VXFTBODY Feed tube body 1
17.2
VXFTLEV Feed tube lever 1
17.3
X6FTAS Feed lever adjuster screw 1
17.4
VXFTM Feed tube mount screw 1
17.5
C3-1-4 C3-1-4 screw 1
18
X6EC-LHS Eye cover left hand side 1
19
X6EC-RHS Eye cover right hand side 1
20
S2BAC Shift 2 barrel assembly 1
20.1
S2IXXX Shift 2 insert 1
20.2
S2BAC Shift 2 back 1
20.3
S2T14 Shift 2 tip 1
20.4
S2G Shift 2 grip 1
20.5 OR17 Number 17 o-ring 1
20.6 OR16 Number 16 o-ring 1
20.7 ORM18 M18 o-ring 1
21 Board assembly 1
21.1
X6MBOARD Main board 1
21.2
C6DBOARD Display board 1
22
B5-7-8 Front grip cap screw 1
23
X6BB Body board 1
23.1
X6BB Body board 1
23.2 4
23.3 2
23.4 1
23.5 1
24
C3-1-4 C3-1-4 Screw 5
25
X6FGCAP Front grip cap 1
26
X6FGCORE Front grip core 1
27
X6FG Front grip rubber 1
28
X6SP Subplate 1
29
Drivetrain assembly 1
29.1
X6BOLT Bolt 1
29.2
x6BTIP Bolt tip 1
29.3
X6VAL Valve 1
29.4
X6VNN Valve nose nut 1
29.5
X6VNC Nose cone 1
29.6
X6KEG Keg 1
29.7
X6VC Valve cap 1
29.8
X6DSC Detent spring carrier 1
29.9
CL5VALS Drive spring 1
29.10
X6DCAP Drive cap 1
29.11
CL5PPD Pullpin detent 1
29.12
CL5PP Pullpin 1
29.13
X6DC Drive cover 1
29.14 OR20 Number 20 o-ring 4
29.15 OR17 Number 17 o-ring 1
29.16 OR19 Number 19 o-ring 1
29.17 OR14 Number 14 o-ring 1
29.18 ORM16-2 M16-2 o-ring 1
29.19 X6BUMP Bump stop 1
29.20 OR14
Number 14 o-ring 1
29.21 OR110 Number 110 o-ring 1
29.22 OR16 Number 16 o-ring 1
29.23 OR11 Number 11 o-ring 1
30 C6TPLUG Subplate plug 1
31 X5EYE Eye set 1
32 ORM4 M4 o-ring 1
33 OR7 Number 7 o-ring 1
34 ORM2 M2 o-ring 1
35 1
36 2
37 1
38 S2T14 Shift 2 tip 1
39 S2BAC Shift 2 back 1
40 S2IXXX Shift 2 insert 4
22

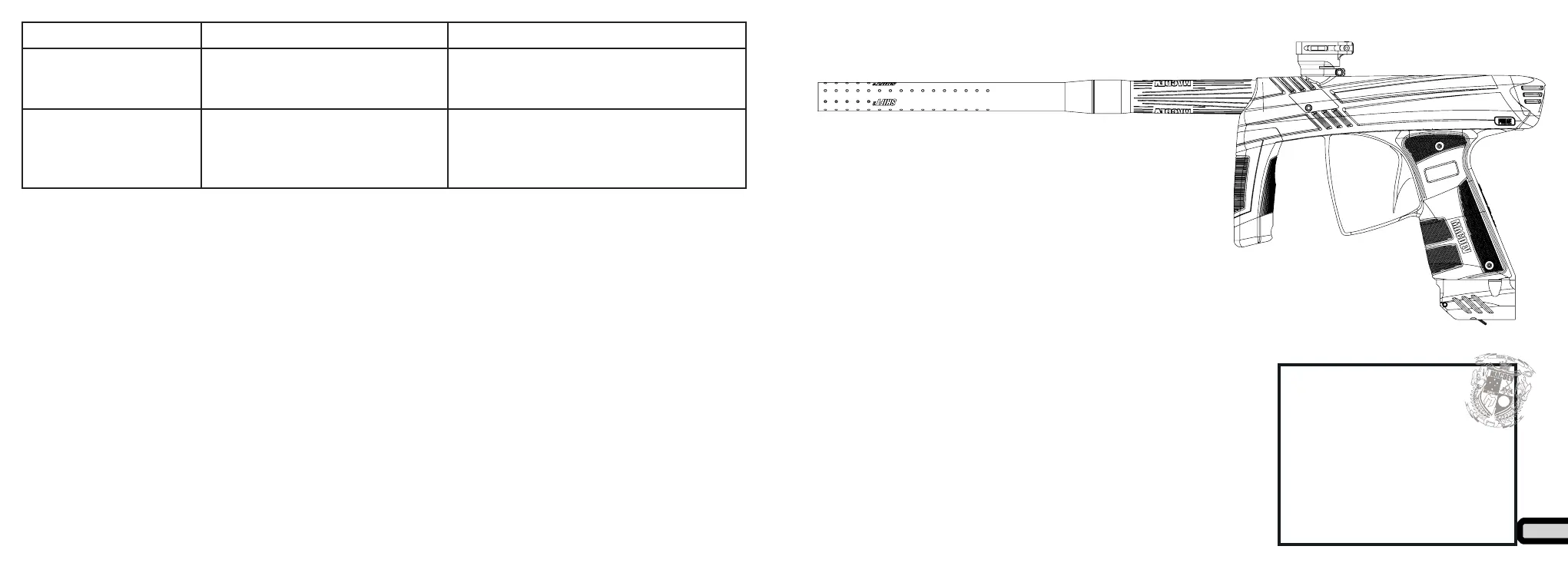

PRIME SPECIFICATIONS
(Specs are a guide only and may change without noce)
Physical
Length 225mm (538mm with barrel)
Width 34mm
Height 205mm
Weight 895g with barrel and baery
Barrel Threads Autococker
Performance
Operang pressure 100psi
Maximum Rate of Fire 30 BPS (only allowed with eyes on, and paint)
Electronics
Soware Miliaso V1.xx
Hardware PRIME V1.03 (Lead Free)
Display 65K colour OLED, low power usage 128x32px
Power 9V standard baery 6LR61
Fire modes Semi, NXL, PSP, Custom ramp, Full Auto
Connecvity Mini USB
Solenoid 5V 1W
MACDEV TECHNICAL
ASSISTANCE
If you require technical assistance,
please contact your local MacDev
service centre. You can also nd
assistance on the MacDev support
website :
macdevpaintball.com/support
Symptom Possible Cause Soluon
Your Prime res high on
the rst shot or
inconsistently.
Creeping regulator Clean and lubricate the reglulator, ensure that
the seat and piston are in good condion.
Your Prime res low on
the rst shot
Scking drivetrain Clean and relubricate the drivetrain. If you
connue to have problems:
-increase the dwell by 1-2 ms.
-increase the ABS parameter on your board.
