SHOWBOX BATTERY POWERED ALL-IN-ONE PERFORMANCE RIG WITH BREAKAWAY MIX CONTROL
39

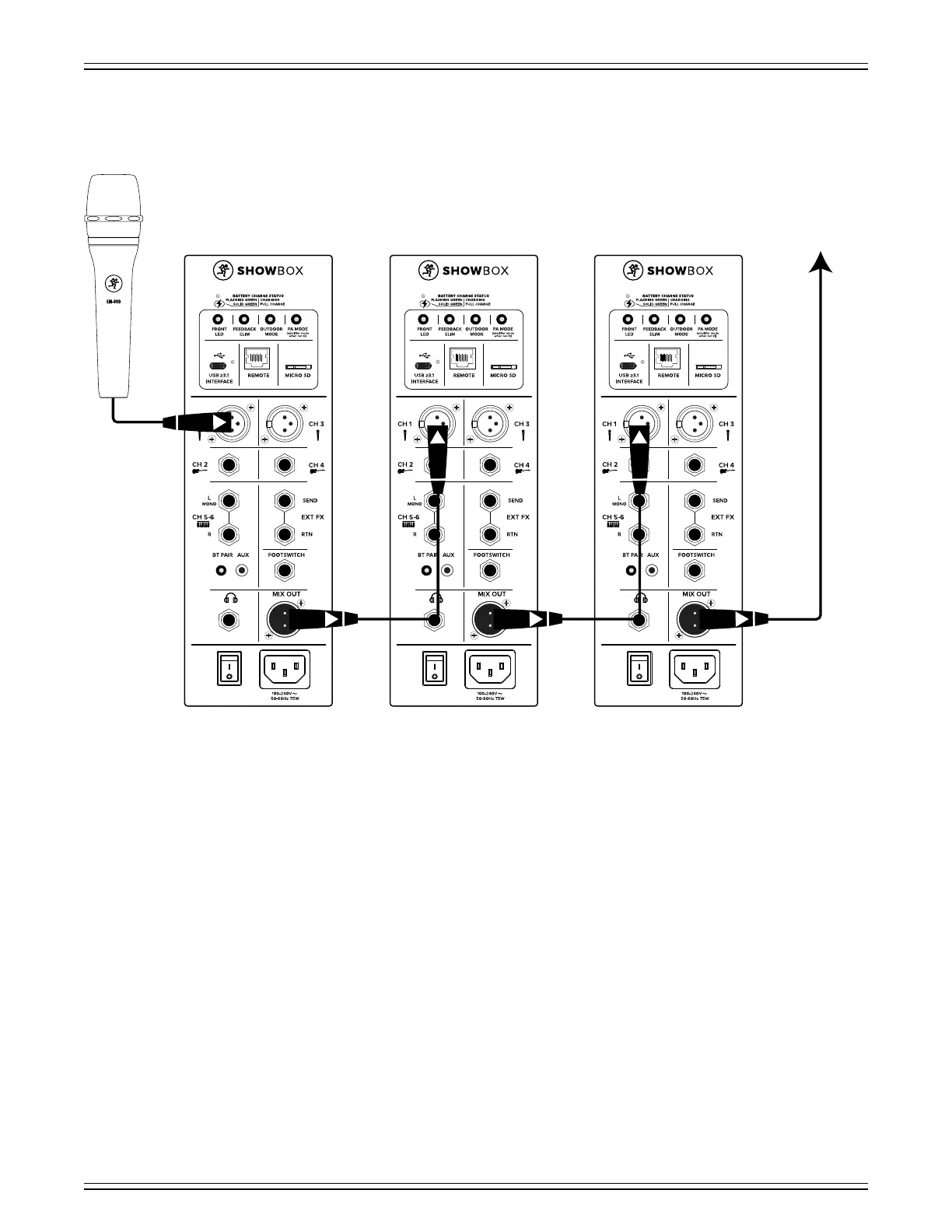

Hookup Diagrams > Daisy-Chaining
ShowBox may be daisy-chained via the male XLR connector labeled “MIX OUT”. Simply plug the signal source(s)
(e.g. microphone above) into the input jack(s), and patch that ShowBox’s mix out jack to the next ShowBox’s input jack,
and so on, daisy-chaining multiple ShowBoxes together. See above for visual representations of daisy-chaining.
To next
ShowBox
input
