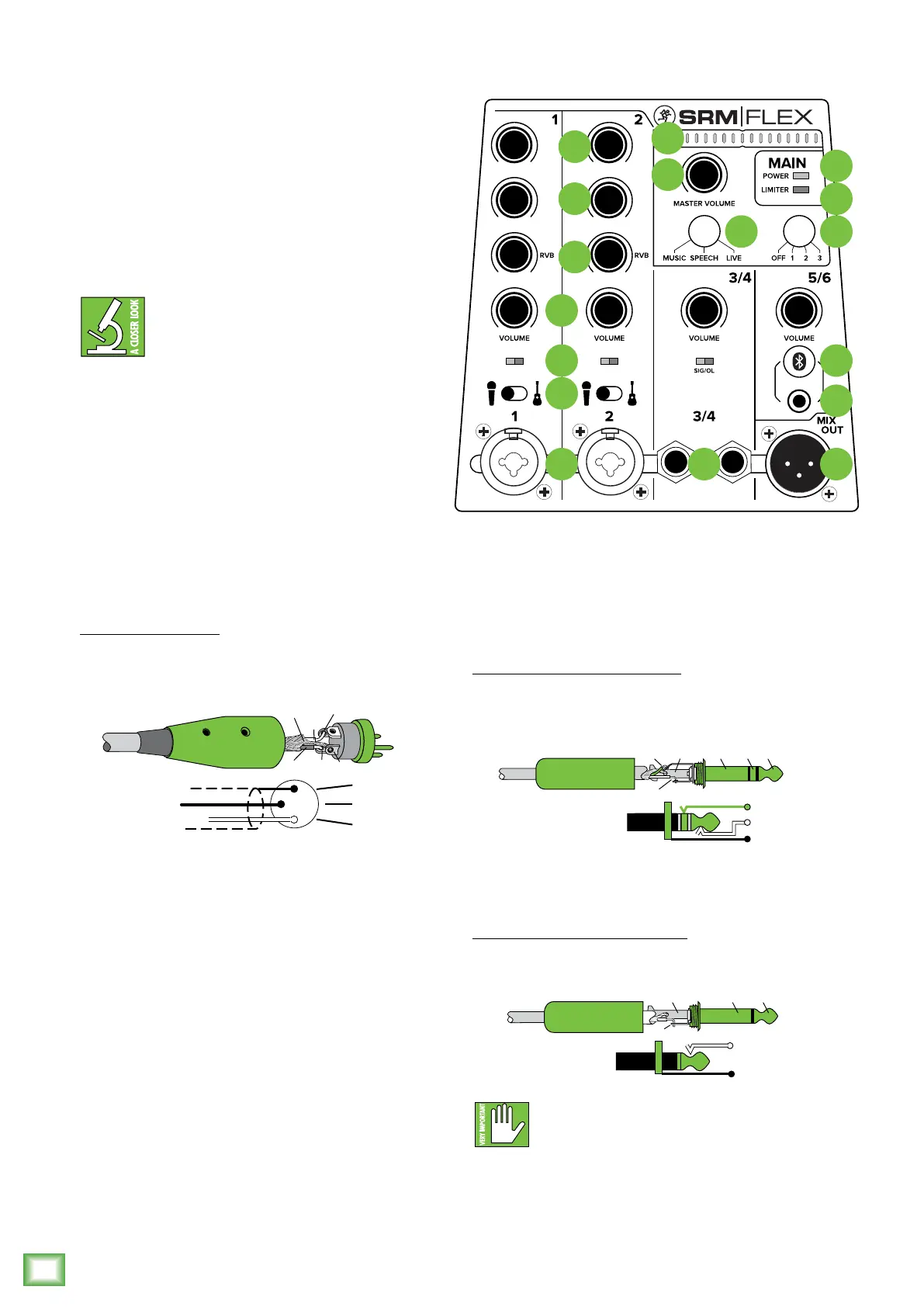

SRM-Flex: Top Panel Features
EQ RVB
LOW
HI
LOW
HI
SIG/OL SIG/OL
4
5
7
10
11
12
13
6 20
8
9
14
3
19
15
17
18
3. Power LED
This LED will illuminate green when the SRM-Flex
is turned on, as a reminder of how on it really is.
If it is not on, then it is o, and it becomes a rather
nice weight for keeping your morning newspaper
from blowing away in the wind.
If it does not turn on, make sure the power cord
is correctly inserted at both ends, the local AC mains
supply is active, and the power switch is on.
There is a horizontal LED bar located
near the bottom of the base station /
subwoofer, as well as near the top
of the high frequency driver column.
These, too, will illuminate green when powered up.
However, they may be turned o or set to show signal
via the SRM-Flex Connect App. Read the reference
guide for more information.
4. XLR and /4" Combo Inputs [Chs.  and 2]
Input channels  and 2 may accept a balanced
mic signal using an XLR connector. They are wired
as follows, according to standards specified by
the AES (Audio Engineering Society).
XLR Balanced Wiring:
Pin  = Shield (ground)
Pin 2 = Positive (+ or hot)
Pin 3 = Negative (– or cold)
In addition to accepting a balanced mic signal
using an XLR connector, these input channels may
also accept /4" line-level signals driven by balanced
or unbalanced sources.
Also, both channels may accept a Hi-Z source
(such as a guitar) via the /4" input without
the need for a separate DI box. Be sure to set
the Mic / Hi-Z switch to the right, though!
2
3
1
SHIELD
COLD
HOT
SHIELD
COLD
HOT
3
2
1
To connect balanced lines to these inputs, use
a /4" Tip-Ring-Sleeve (TRS) plug. “TRS” stands
for Tip-Ring-Sleeve, the three connection points
available on a stereo /4" or balanced phone jack
or plug. TRS jacks and plugs are used for balanced
signals and are wired as follows:
/4" TRS Balanced Mono Wiring:
Sleeve = Shield
Tip = Hot (+)
Ring = Cold (–)
To connect unbalanced lines to these inputs,
use a /4" mono (TS) phone plug, wired as follows:
/4" TS Unbalanced Mono Wiring:
Sleeve = Shield
Tip = Hot (+)
NEVER connect the output of an amplifier
directly to an input jack. This could damage
the input circuitry!
SLEEVE
TIPSLEEVE
TIP
RING
RING
TIP
SLEEVERING
SLEEVE
TIP
TIPSLEEVE
TIP
SLEEVE

Mackie SRM-Flex Specifications

General

Woofer	Yes
Speaker type	-
Woofer diameter	254 mm
Tweeter diameter	51 mm
Number of drivers	7
Speaker placement	Floor
Audio output channels	- channels
Number of woofer drivers	1
Number of tweeter drivers	6
Woofer diameter (imperial)	10 \
Tweeter diameter (imperial)	2 \
Amplifier class	D
RMS rated power	1300 W
Sound pressure level (max)	118 dB
Product color	Black
Recommended usage	Stage
Bluetooth version	4.2
Connectivity technology	Wired & Wireless
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
AC adapter output current	10 A
Power consumption (typical)	110 W
Suitable for outdoor use	No

Weight and Dimensions

Depth	330 mm
Width	366 mm
Height	2005 mm
Weight	13400 g
