Mackie Thump 15 - Daisy-Chaining Loudspeakers Diagram

Owner’s Manual
7
Owner’s Manual

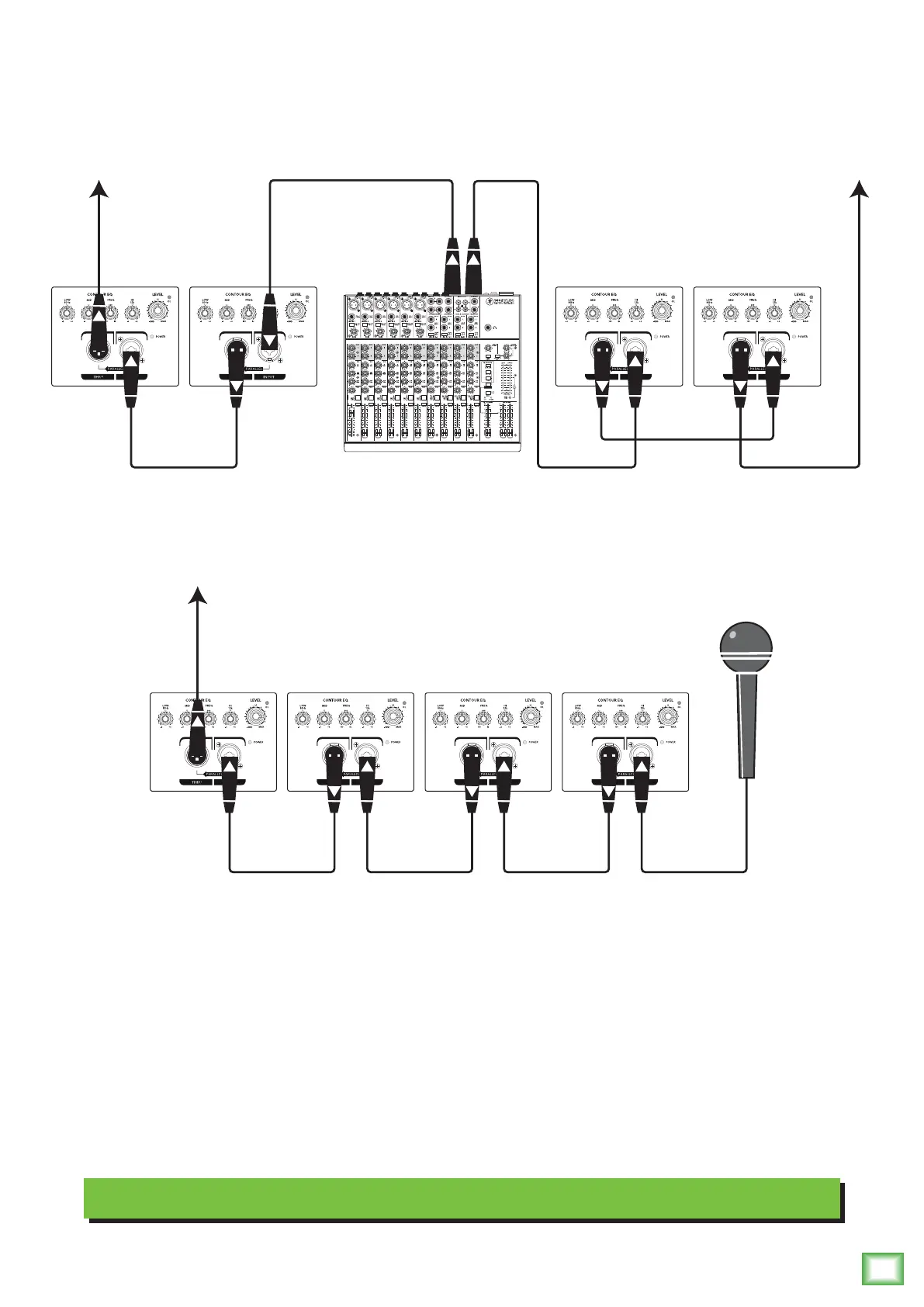

Daisy-Chaining Multiple Thump Loudspeakers
Hookup Diagrams continued...
1402VLZ4 Mixer
To next
Thump
loudspeaker
input
To next
Thump
loudspeaker
input
Main
Outs
To next
Thump
loudspeaker
input
Thump loudspeakers may be daisy-chained via the male XLR connector labeled “THRU”. Simply plug
the signal source (i.e., mixer output or microphone) into the input jack(s), and patch that loudspeaker’s
thru jack to the next loudspeaker’s input jack, and so on, daisy-chaining multiple Thump loudspeakers.
See above for visual representations of daisy-chaining.
