GUY WIRE INSTALLATION (CEILING MOUNT)

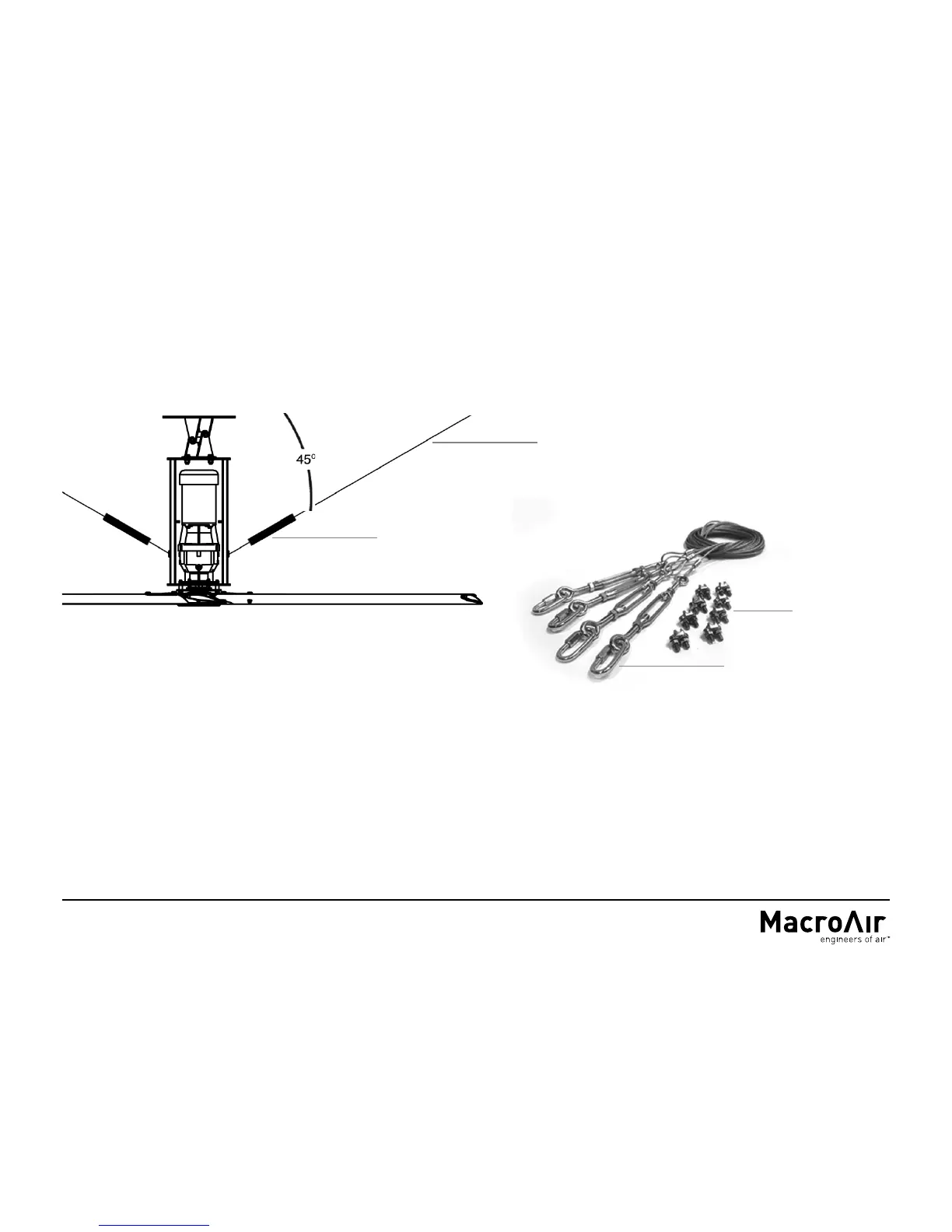

• Attach the turnbuckle end of the guy wires to the guy wire loops located on the fan frame with the provided quick links.
• When laying out the locations of the guy wire mounting points, attempt to maintain a 45 degree angle between the ceiling and the guy
wires.
• Avoid any sharp edges that may contact the guy wire. Guy wires need to be attached to the building structure via 1/2’’ eye lags or bolts
with the provided cable clamps.
• Do not wrap the guy wires around the building structure.
Turnbuckle
Guy Wire
Quick Links
Cable Clamps
AirEco not pictured.
Installation methods
are the same.
