Cable Clamps

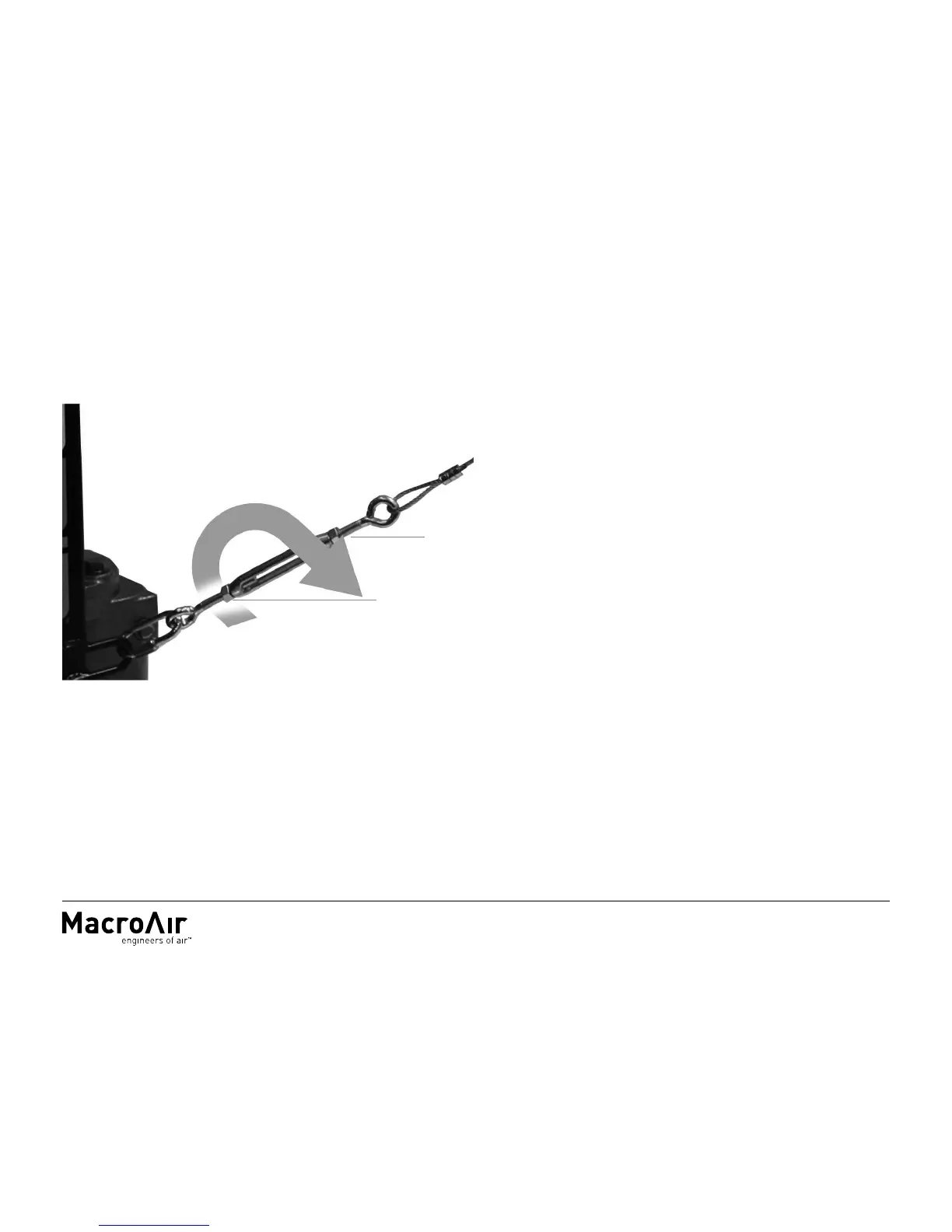

GUY WIRE TIGHTENING (CEILING MOUNT)
• With the aid of a level placed against the fan unit, tighten the turnbuckles by hand in a criss-cross pattern while periodically checking
to ensure that the fan is level.
• Tighten the turnbuckles until the fan unit is stable in the level position. Make sure to not overtighten the turnbuckles.
• Once all of the guy wires are snug and the fan unit is stable and level, tighten the jam nuts on the turnbuckles.
• Do not use tools to tighten the turnbuckles; only use tools to tighten the jam nuts.
Turnbuckle
Jam Nut
AirEco not pictured.
Installation methods
are the same.
