36 © 2014 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com Rev. Date 111714

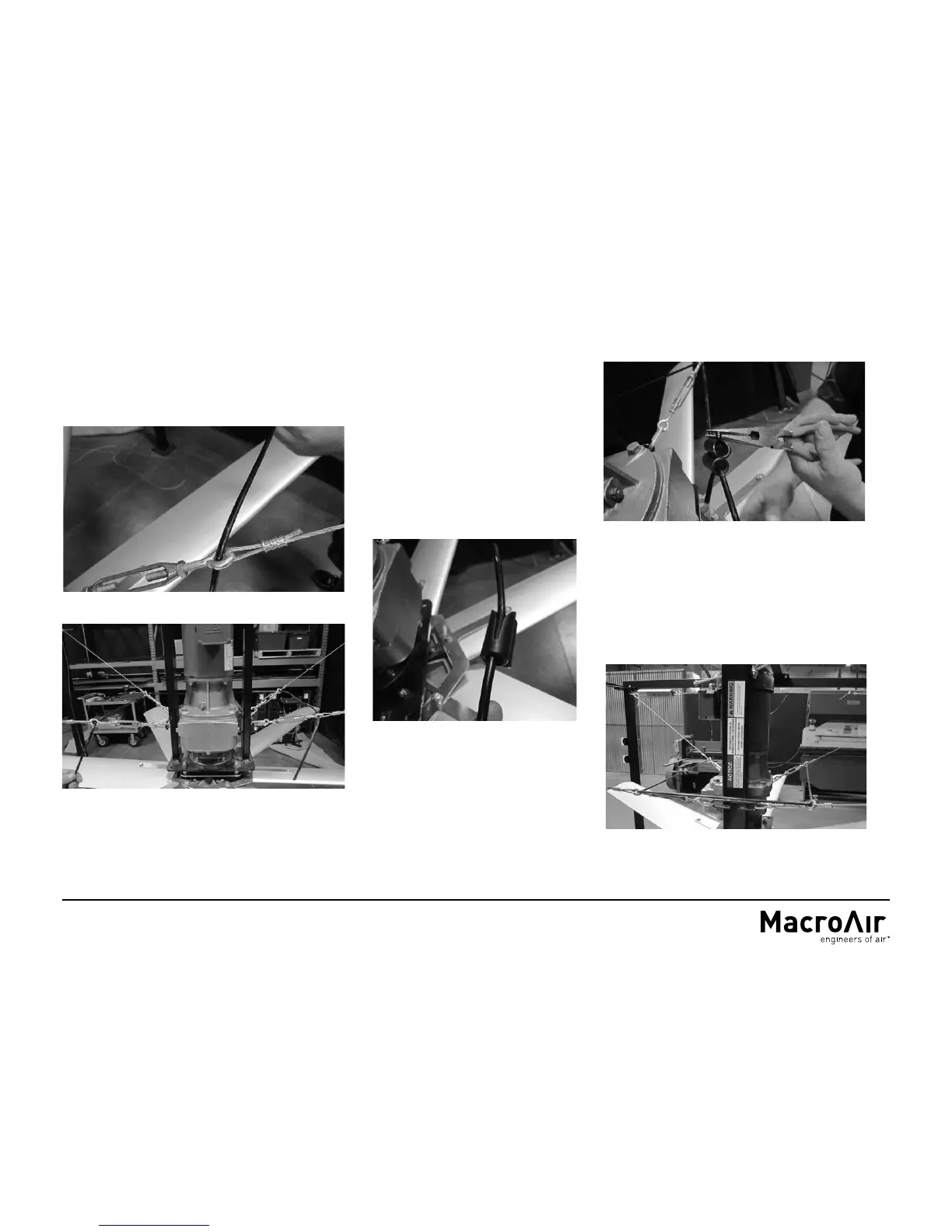

1. Insert the elastic cord through the top eyelet
of each of the 4 turnbuckles as shown in pic-
tures 1 & 2.
2. Pull one of the ends of the
cord through one of the holes on
the cable lock and then pull the
end into the groove to lock it. Use
pliers to properly secure the cord
in the groove of the cable lock as
shown in pictures 3 & 4.
3. Repeat step 2 for the second end of the
cord using the opposite hole and groove on
the cable lock.
4. The safety cord should be pulled tight
and fastened as shown in picture 5.
THE CABLE IS CUT TO A PREDETERMINED LENGTH AND TENSION.
DO NOT EXCESSIVELY STRETCH THE BUNGIE CORD.
GUY WIRE BAND (CEILING MOUNT)
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
