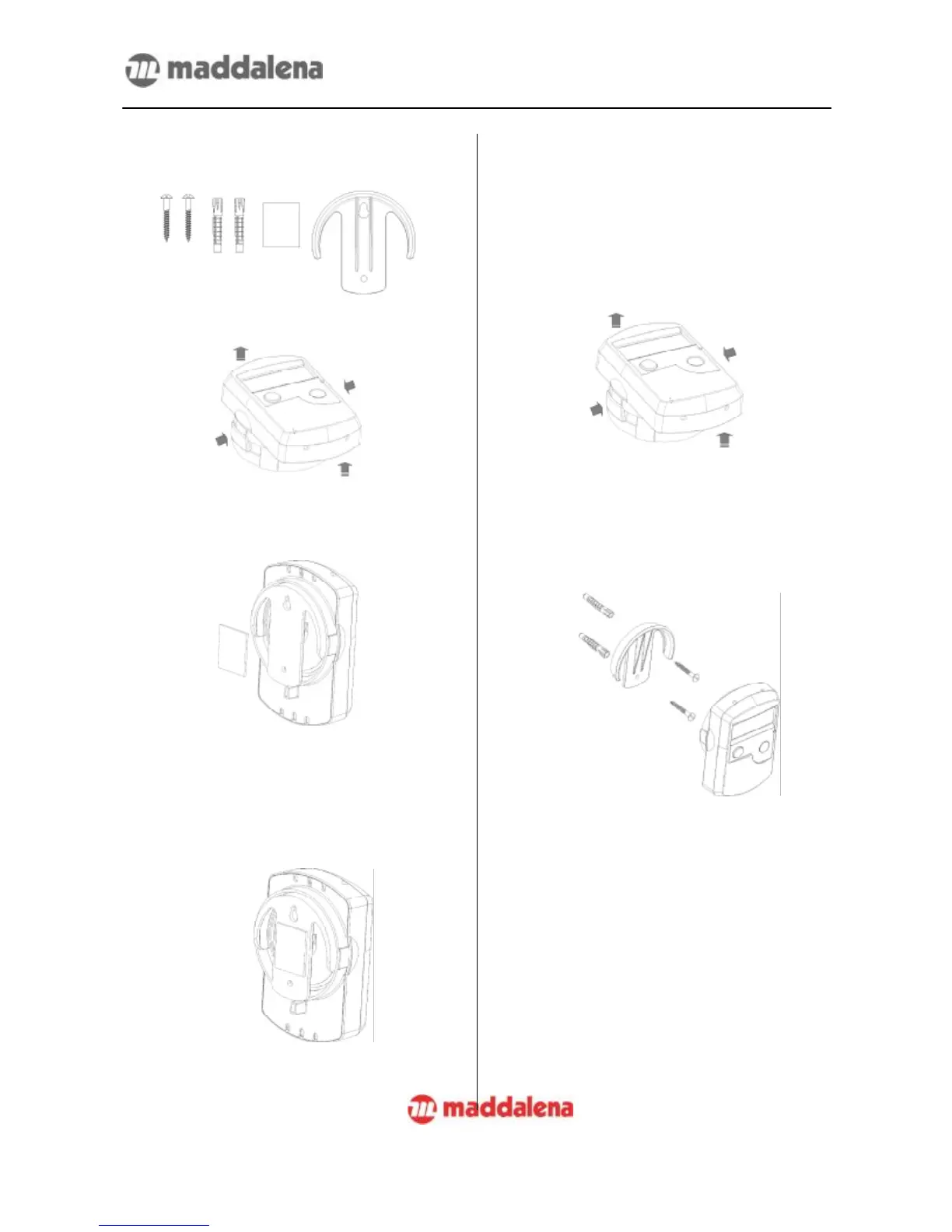

10. Mounting with Wall Support
Parts included in delivery:
A. Mounting with a sticker pad
1. Press the locking positions on the side of the
adapter lightly with one hand while pulling up
the calculator housing with the other hand.
2. Latch the wall mounting support onto the
instrument. Remove the protective foil from the
sticker pad and press the pad firmly onto the
wall support.
3. Remove the second protective foil from the
sticker pad and press the instrument with the
wall mounting support firmly in place on the
wall.
B. Mounting with dowels
1. Press the locking positions on the side of the
adapter lightly with one hand while pulling up
the calculator housing with the other hand.
2. Drill holes for the dowels (∅ 6mm, depth 40
mm). Take into account the maximum length of
the white connecting cable between the flow
sensor and the heat meter.
3. Screw on the wall mounting support.
4. Attach the instrument to the mounting support.
C. Removing the heat meter from the mount-
ing support
Pull the instrument upwards and away from the
wall.
