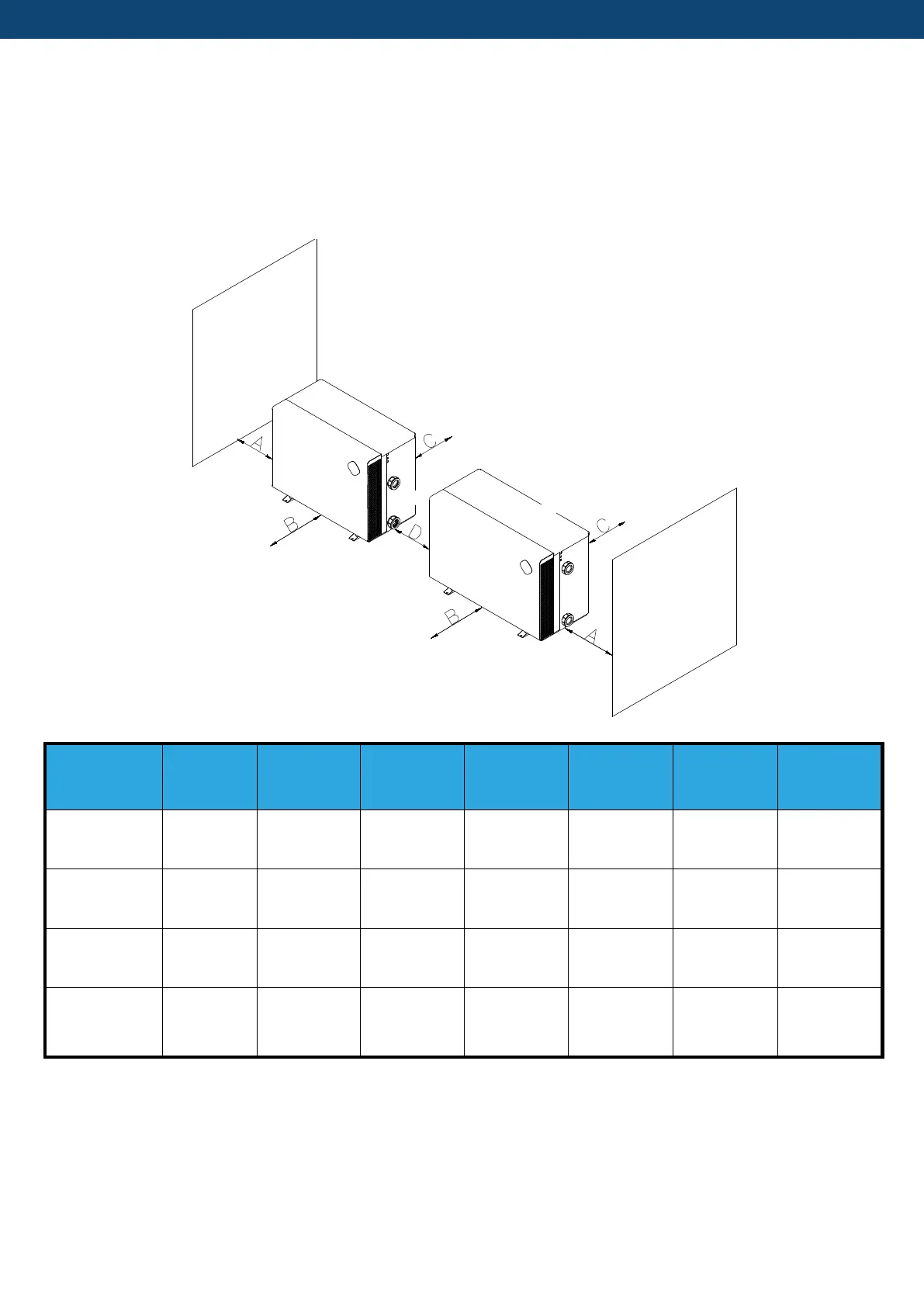

case: Multiple units – 2 obstacles:
Model
number
ESV3-110
ESV3-140
ESV3-170
ESV3-220
ESV3-270
ESV3-320
ESV3-400
Distance A
(mm)
300
350
400
500
500
500
500
Distance B
(mm)
300
300
350
400
400
400
500
Distance C
(mm)
100
150
200
250
300
300
300
Distance D
(mm)
600
700
800
1000
1000
1000
1000
Please note that these are absolute minimum distances and where possible should always
have a greater difference. Under no circumstances should any of the distances be reduced
as performance will be affected. More ventilation is better.
