4. Wiring requirements
a. Connect the heat pump to an appropriate power supply, the voltage should comply
with the rated voltage of the product.
b. The machine must be earthed
c. Wiring must be handled by a professional technician according to the circuit diagram.
d. Install electrical protection device according to local code for wiring
e. The layout of power cable and signal cable should be orderly and not affecting each
other.

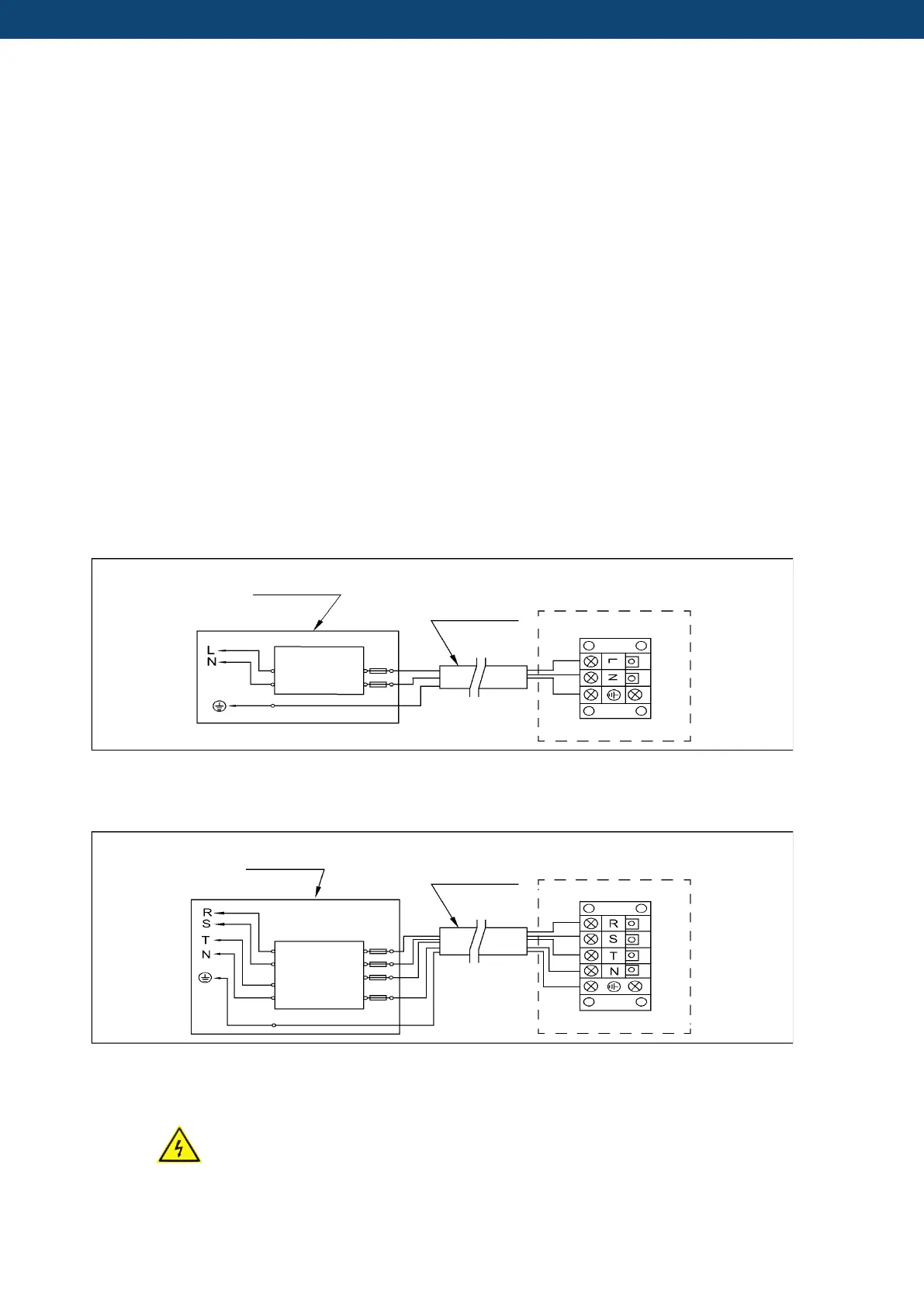

5. Electric wiring diagram
a. For power supply: 240V 50Hz
b. For power supply: 415V 50Hz
Note:
1) Must be hard wired, plug is not allowed.
1) The swimming pool heat pump must be earthed well.
Distribution Box (Customer prepare)
Swimming Pool Heat Pump Wiring Board
Distribution Box (Customer prepare)
Swimming Pool Heat Pump Wiring Board
To Next Page
