Maeda MC285C-2 - Pressure Sensors

3-15

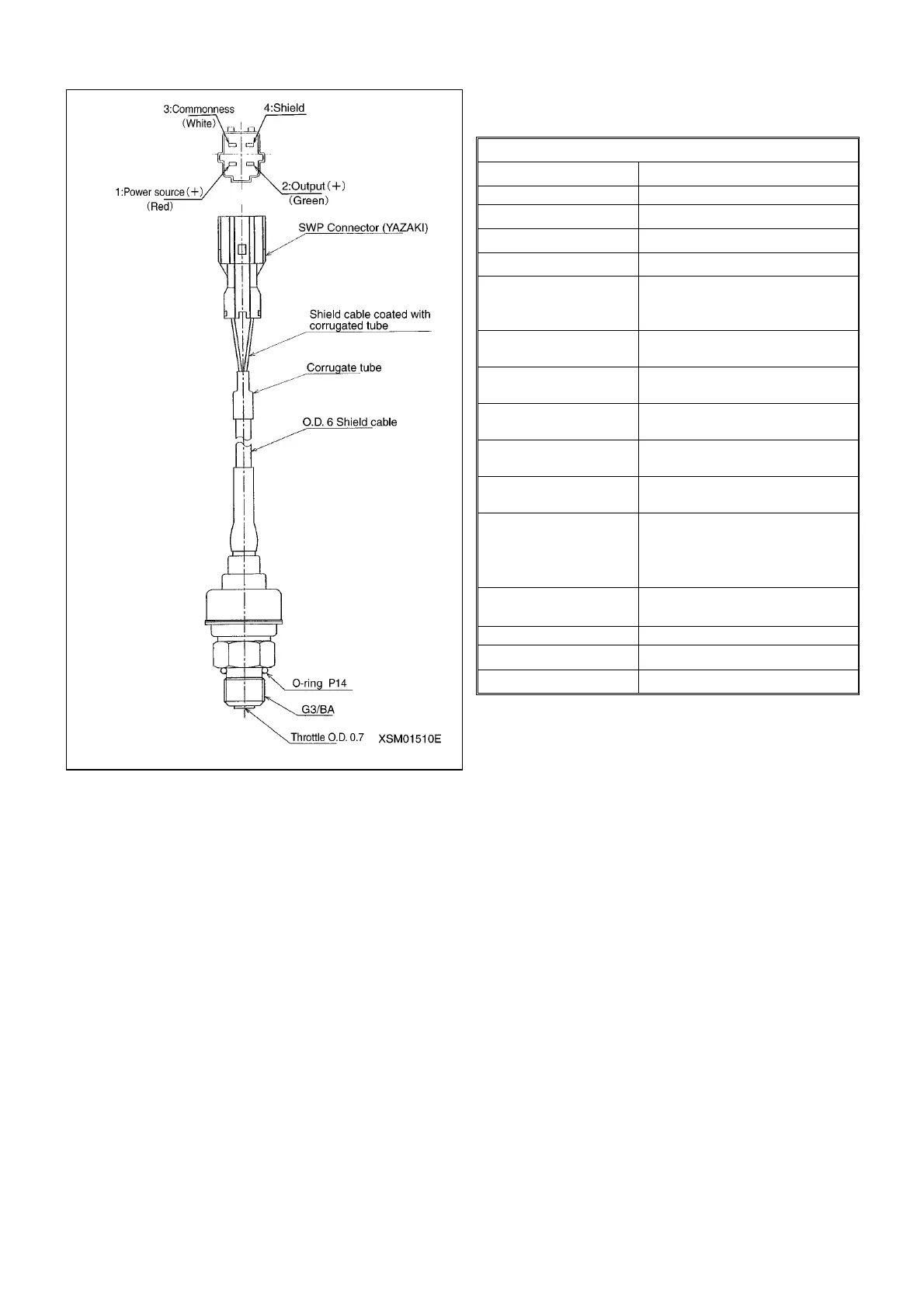

1. 5.1 PRESSURE SENSORS
Specifications/Capacity
Working range 0 to 35 MPa
Permissible pressure 52.5 MPa
Power Supply Voltage 12V DC ±10%
Power Form 1 to 5 DC 3 wires
Load Resistance 10 K-ohm, min.
Accuracy
±0.1% F.S.
(Including linearity, hysteresis
and repeatability at 23±2°C)
Temperature
Coefficient, origin
±0.1%F.S./ °C
Temperature
Coefficient, span
±0.1%F.S./ °C
Temperature
Compensation Range
-20 to +70 °C
Operation Temperature
Range
-20 to +70 °C
Stand-by Temperature
Range
-20 to +80 °C
Vibration Resistance
66.6miri/S
䋲
(33.3Hz )
X direction 4Hr
Y direction 2Hr
Z direction 2 Hr
Resistance to Impact
297miri/S
䋲
(11ms or less )
X, Y and Z, 3 impacts each.
Protection Classification IP54 (Except Cables)
Insulation Resistance 100 M-ohm, min. (50V DC)
Power Consumption 100 mA DC, max.

