Maeda MC285C-2 - Initial Mode Setting Procedure

3-74
21. POINTS FOR INPUT VOLTAGE MEASUREMENT OF EACH SENSOR

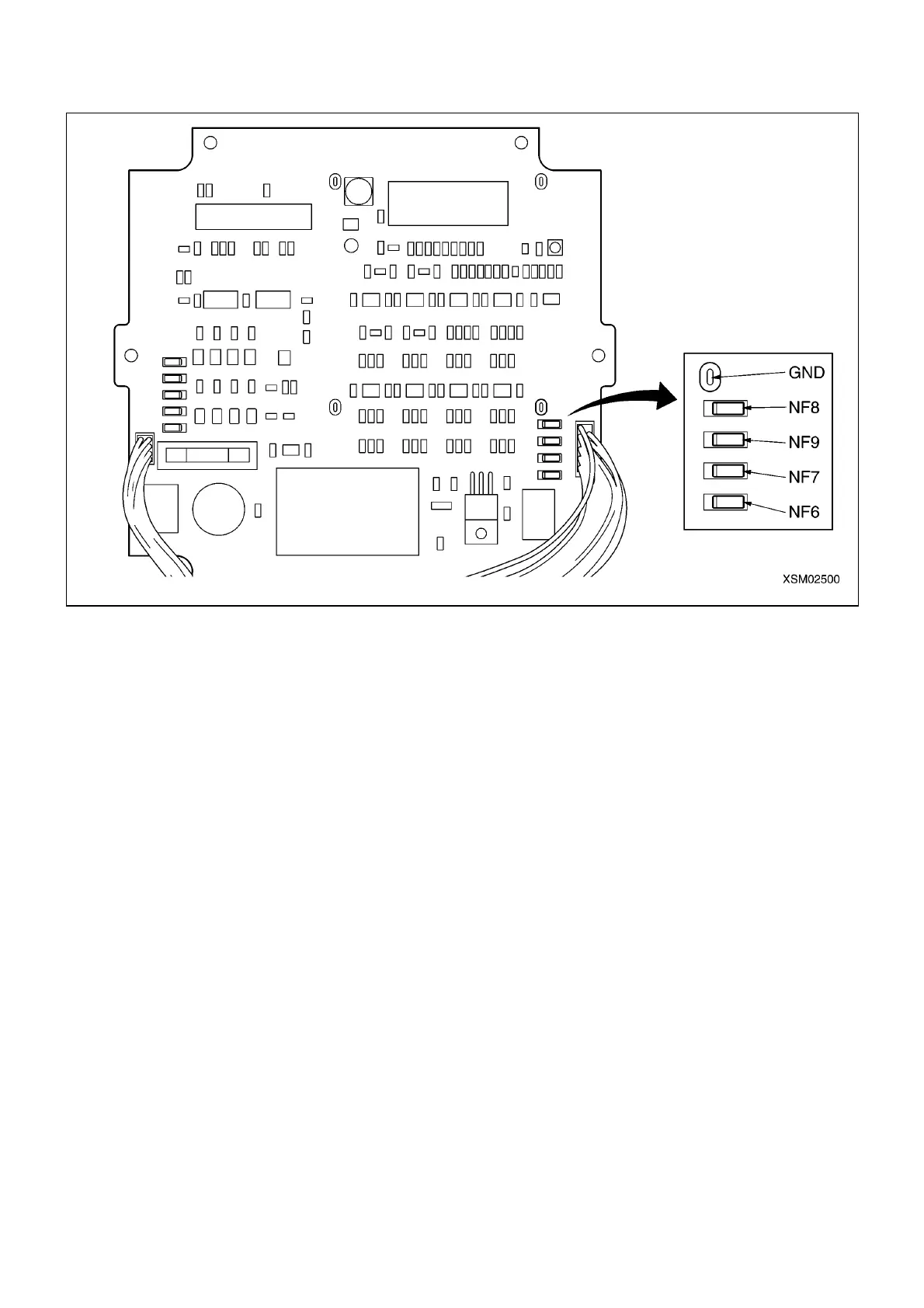

The drawing above is the motherboard for Converter.
From top to bottom
NF8: Angle Sensor
NF9: Length Sensor
NF7: Pressure Sensor 2
NF6: Pressure Sensor 1
Measure voltage between each of above points and GND.
