Magellan NAV 6500/NAV 6510 75

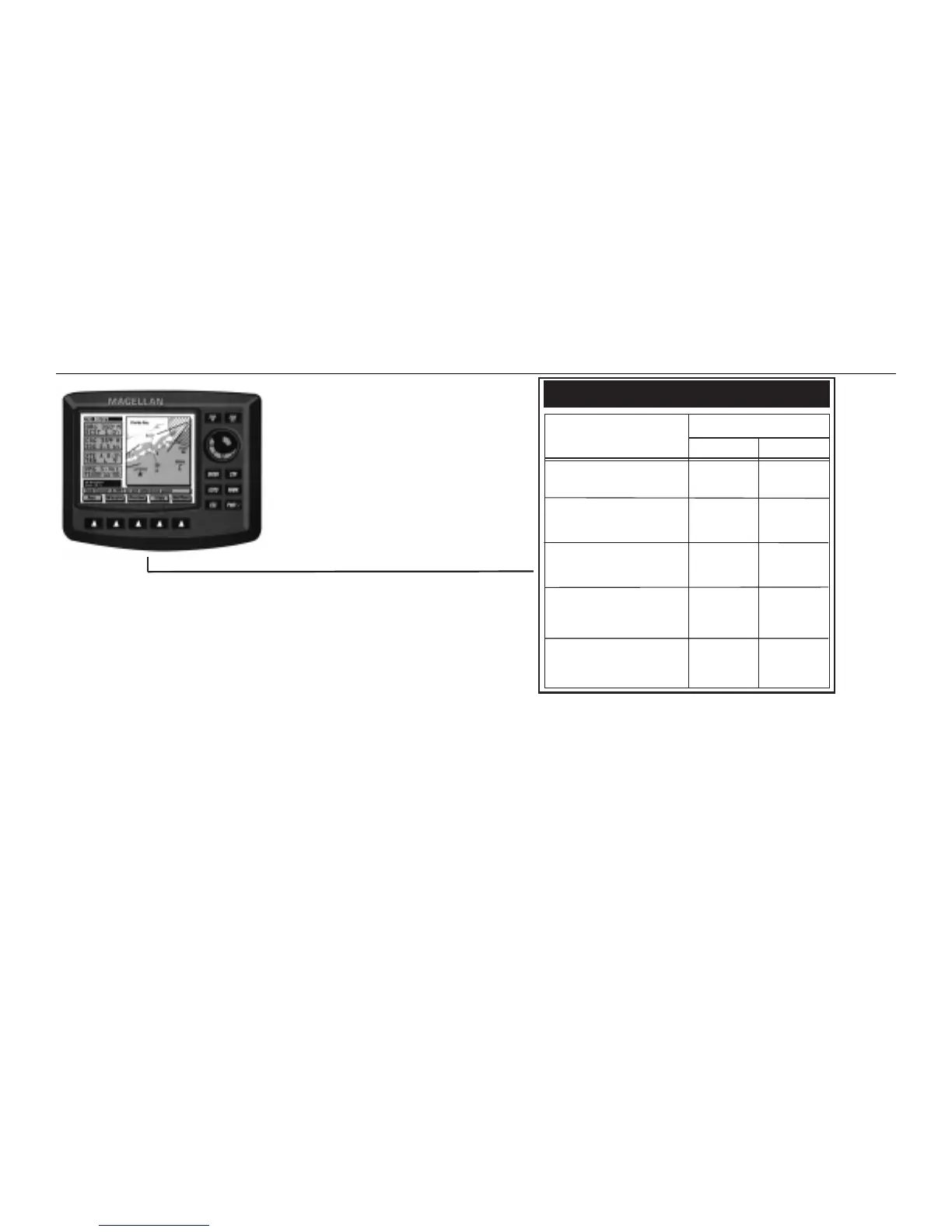

Wiring Instructions
Power/Data Cable
* If connecting to more than one device,
additional wire must be spliced to the black
wire.
** You may prefer to connect the alarm to a
separate power supply.
*** It is recommended that a 3-amp, in-line fuse
be used on the positive lead to the external
power.
(+) (–)
Connection Matrix
Connect...
Wire
DBR Brown Black*
External
Alarm **
Red Yellow
NMEA Data
to NAV 6500/6510
White Green
NMEA Data from
NAV 6500/6510
Gray Black*
External
Power
Red*** Black*
