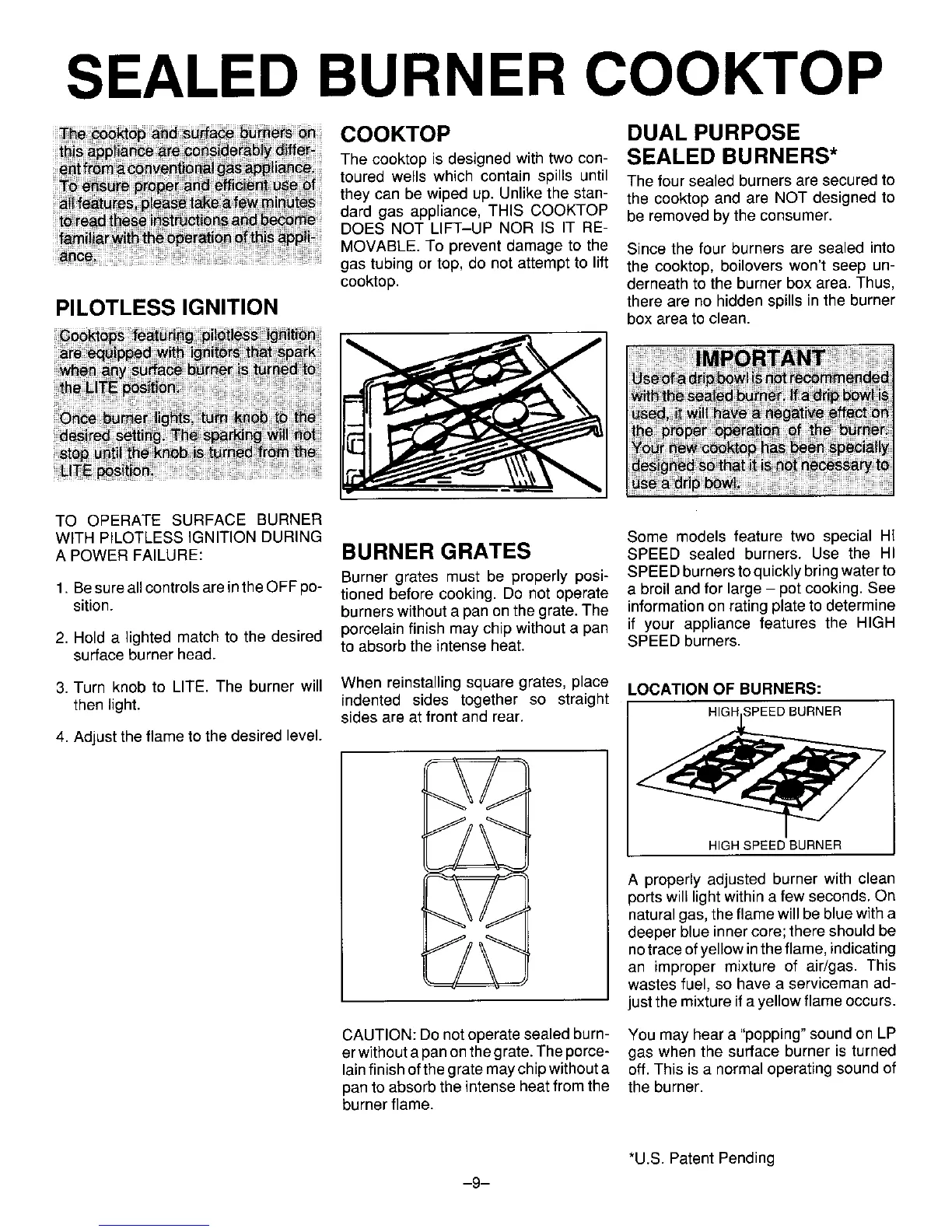

SEALED BURNER COOKTOP
COOKTOP DUAL PURPOSE
The cooktop is designed with two con- SEALED BURNERS*
toured wells which contain spills until The four sealed burners are secured to
they can be wiped up. Unlike the stan- the cooktop and are NOT designed to
dard gas appliance, THIS COOKTOP be removed by the consumer.
DOES NOT LIFT-UP NOR IS IT RE-
MOVABLE. To prevent damage to the Since the four burners are sealed into
gas tubing or top, do not attempt to lift the cooktop, believers won't seep un-
cooktop, derneath to the burner box area. Thus,
there are no hidden spills in the burner
PILOTLESS IGNITION box area to clean.
TO OPERATE SURFACE BURNER
WITH PILOTLESS IGNITION DURING Some models feature two special HI
A POWER FAILURE: BURNER GRATES SPEED sealed burners. Use the HI
Burner grates must be properly pesi- SPEEDburnerstoquicklybringwaterto
1. Besureallcontrols are inthe OFF po- tioned before cooking. Do not operate a broil and for large - pot cooking. See
sition, burners without a panon the grate.The information on rating plate to determine
porcelain finish may chip without a pan if your appliance features the HIGH
2. Hold a lighted match to the desired to absorb the intense heat. SPEED burners.
surface burner head.
3. Turn knob to LITE. The burner will When reinstalling square grates, place LOCATION OF BURNERS:
then light, indented sides together so straight
sides are atfront and rear. HIGI- 'qER
4. Adjust the flame to the desired level.
HIGH SPEED BURNER
A properly adjusted burner with clean
ports will lightwithin a few seconds. On
naturalgas, the flamewill be blue with a
deeper blue inner core; there should be
notrace ofyellow intheflame, indicating
an improper mixture of air/gas. This
wastes fuel, so have a serviceman ad-
just the mixtureif a yellowflame occurs.
CAUTION: Do notoperate sealed burn- You may hear a "popping"sound on LP
erwithoutapanonthegrate.Theporce- gas when the surface burner is turned
lainfinishofthegratemaychipwithouta off. This is a normal operating sound of
panto absorbthe intense heat from the the burner.
burner flame.
*U.S. Patent Pending
-9-
