13
6� Check the pipe fittings for leaks using a leak detection solution� Never use a flame�

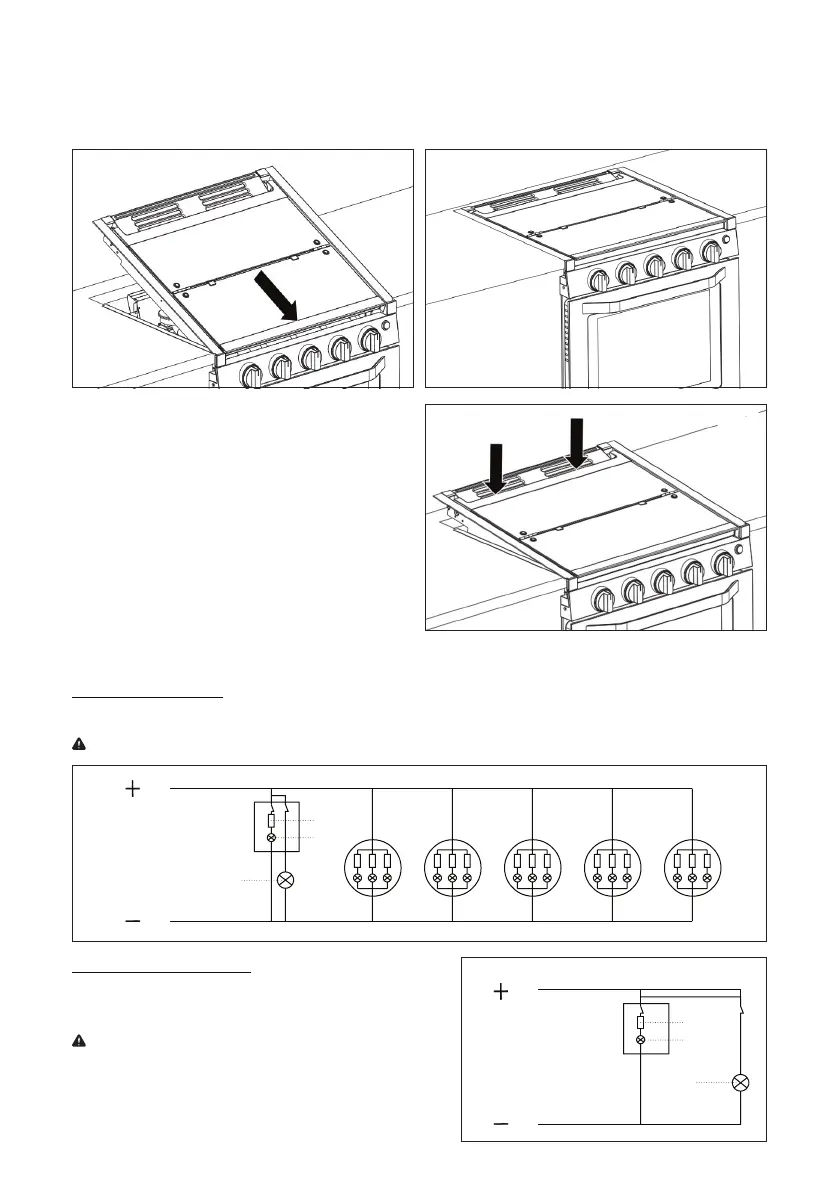

7� Align the top glass cover assembly with the slots on the cooktop and place it into the range oven� (Figure 10
and Figure 11)
Figure 10 Figure 11
Figure 12
8� Press the backside of the top glass cover until
you hear a click noise� The top glass cover is now
locked into place� (Figure 12)
ELECTRICAL CONNECTION
MODEL WITH LED LIGHT
Connect the light wires to a 12V DC circuit with a fuse protected and a max rating of no more than 5 amps�
NOTE: Ensure to connect the wires with the correct polarity� Black is " + " and White is " - "�
MODEL WITHOUT LED LIGHT
Connect the wires of oven lamp to a 12V DC circuit with a fuse
protected and a max rating of no more than 5 amps�
NOTE: Ensure to connect the wires with the correct
polarity� Black is " + " and White is " - "�
Figure 13
Figure 14
DC 12V
Switch
R
LED
Lamp
DC 12V
Switch
R
LED
Lamp
To Next Page
