5� Continue to push and hold the oven control knob in, then open the oven door and place a burning long
wooden match (or the match extension or a butane lighter with extension) through the spaces in the grate
near the ports of the burner to light the oven burner� (Figure 21)
6� Continue to push and hold the oven control knob in for 5 seconds after pilot is Lit� Release knob and verify
pilot stays lit� Repeat steps 4 and 5 if pilot does not stay lit�
7� Rotate the oven control knob to adjust burner flame to desired Level� The oven pilot has been factory set
and requires no further adjustment� (Figure 22)

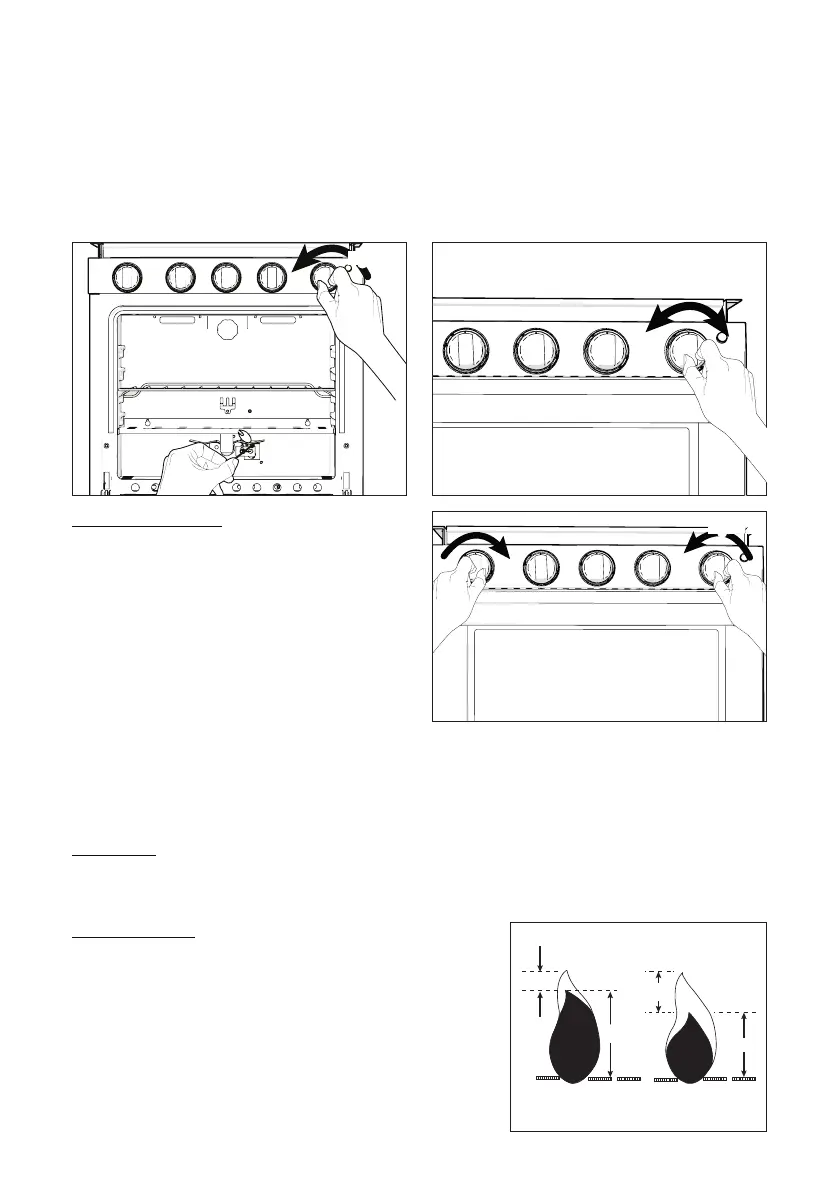

Figure 21 Figure 22
ELECTRONIC IGNITION：
1� Before lighting, check to make sure all the control
knobs are turned to OFF position�
2� Check that the main gas tank valve is open�
3� Push and turn the oven control knob
counterclockwise to LITE position� (Figure 20)
4� Continue to push and hold the oven control
knob in and rotate the ignition button clockwise
repeatedly until burner lights� (Figure 23)
Figure 23
Figure 24
5� Continue to push and hold the oven control knob in for 5 seconds after pilot is lit� Release knob and verify
pilot stays lit� Repeat steps 3 and 4 if pilot does not stay lit�
6� Rotate the oven control knob to adjust pilot flame to desired Level� The oven pilot has been factory set and
requires no further adjustment�
TO TURN OFF
To extinguish the oven, push and turn the oven control knob clockwise to OFF position� Always turn off the gas
tank valve when refueling or traveling�
THE BURNER FLAME
Keep your arms and face away from being directly above the cooking
area Flames should appear similar to the good flame shown in
diagram� (Figure 24) A good flame should be blue with a yellow tip�
Some yellow tips on flames up to 1 inch in length are acceptable as
Long as no carbon or soot deposits appear� If flames are excessively
yellow and irregular, the oil residue may not be completely burned
off, or the venturi may be clogged or may not be properly positioned
over the orifices� Allow the appliance to cool before repositioning
the venturi over the valve and orifices�
Good Flame Bad Flame
Yellow
Blue
Yellow
Blue
