Bracket
Green WireGround Screw

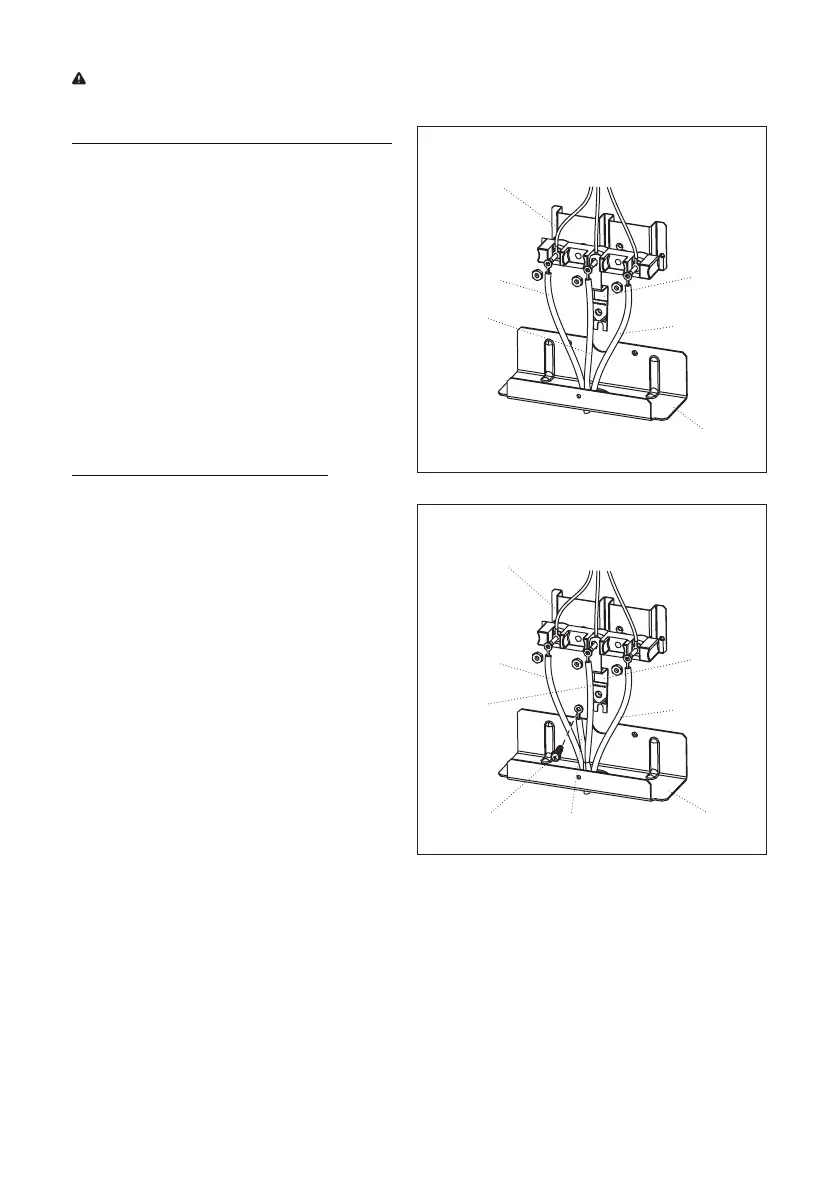

Figure 9
Figure 10
NOTE: DO NOT install the power cord without a strain relief. The strain relief bracket MUST be installed before
reinstalling the rear range wiring cover.
3- Wire Installation (Ground is through the neutral wire)
1. Remove the 3 lower screws from the terminal
block. DO NOT cut or remove the ground
strap.
2. Insert the 3 screws through each power cord
terminal ring and back into the terminal
block. be certain the white/neutral wire is in
the center. Securely tighten each screw (35 to
50 in-lbs.).
3. Replace wire cover on range back by sliding
its left edge under the retaining tabs and
replace the screws removed earlier. Make
sure that no wires are pinched between cover
and range back. (Refer to Figure 9.)
4-Wire Installation (Separate ground wire)
1. Remove the 3 lower screws from the terminal
block. Remove the ground screw and ground
plate and retain them.
2. Cut the ground strap below the terminal block
and discard the lower section.
3. Insert the ground screw through the ground
plate (removed earlier) and back into the
range frame. Tighten securely, but do not
over-tighten (15 to 20 in-lbs.)
4. Insert the 3 terminal screws through each
power cord terminal ring and back into the
terminal block. be certain the white/neutral
wire is in the center. Securely tighten each
screw (35 to 50 in-lbs.).
5. Replace wire cover on range back by sliding its
left edge under the retaining tabs and replace
the screws removed earlier. Make sure that no
wires are pinched between cover and range
back. (Refer to Figure 10.)
Terminal Block
(
appearance may vary)
Terminal Block
(
appearance may vary)
Bracket
Red Wire
Red Wire
Black Wire
Black Wire
Ground
Strap
Ground
Strap
White/
Neutral
Wire
White/
Neutral
Wire
