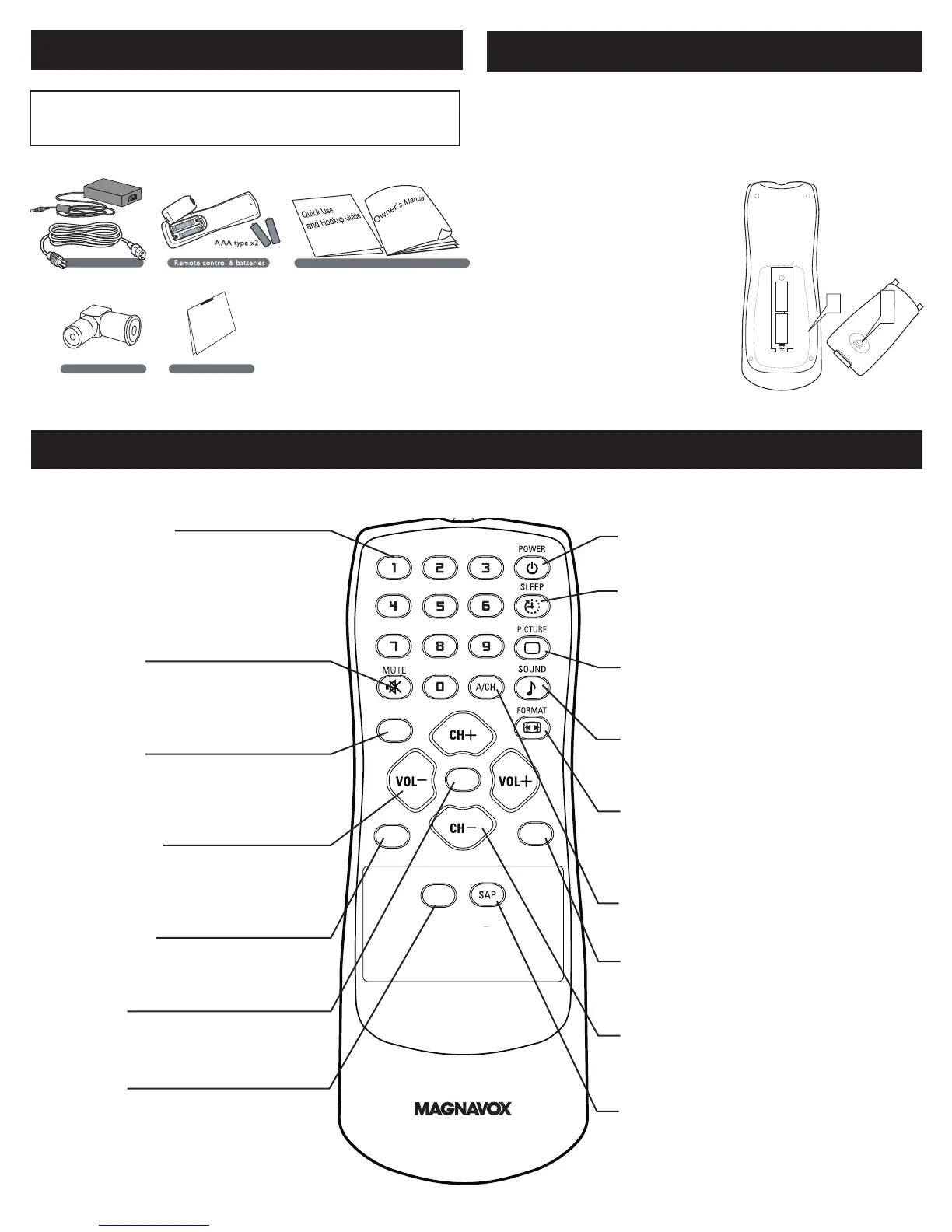

Magnavox 15MF605T Quick Setup Guide

3
BATTERY INSTALLATION



Remove the battery compartment
lid on the back of the remote.
Place two AAA batteries in the
remote. Be sure the (+) and (-) ends
of the batteries line up as marked
inside the battery compartment.
Reattach the battery compartment
lid.
1
2
3
REMOTE CONTROL OPERATION
C C
SOURC E
P I P
M E N U
OK
Number buttons
Press to select TV channels. When selecting
single-digit channels, press the number of the
desired channel.
The LCD TV will pause for a few seconds then
tune to the selected channel.
Mute button
Press to eliminate or restore the LCD TV
sound. Mute will appear on the screen when
the sound is muted.
Menu button
Press to activate onscreen menu, back to
previous level inside the onscreen menu, also
press to exit the onscreen menu.
Volume button
Press to increase or decrease the sound level,
also press to navigate left/right in onscreen
menu.
Source button
Press to select the video input source: AV,
S-Video, HD, PC, TV.
OK button
Press to confirm the option you selected in the
onscreen menu.
C.C button
Press the C.C button to select CC on or CC
off.
Standby (Power) button
Press to turn the LCD TV on or off.
Sleep button
Press to set the LCD TV to turn itself off within a
certain time.
Smart Picture button
Press repeatedly to select either Personal, Movie,
Sports, Weak signal, or Multimedia picture setting.
Smart Sound button
Press repeatedly to select among the 4 settings;
Personal, News, Music, or Theater.
Picture Format button
Press the FORMAT button repeatedly to toggle
among the four screen format sizes; 4:3, EXPAND
4:3, COMPRESS 16:9, or HD 4:3.
Previous Channel button
Press to go to previously selected channel.
PIP button
Press repeatedly to change the size of PIP window
in PC mode.
Channel button
Press to adjust the channel up or down. Also press
to select or navigate up/down in onscreen menu.
SAP button
Press to select a sound mode if available with the
TV programming:Mono, Stereo, or SAP.
ACCESSORIES
When you unpack this unit, make sure it includes the
following:
Owner`s Manual & Quick Use and Hookup Guide
Tuner L-Adapter
Warranty Card
Power adapter & cable
W
ar
ran
t
y C
a
r
d
Owner`s Manual & Quick Use and Hookup Guide
Tuner L-Adapter
Warranty Card
Power adapter & cable
W
a
r
r
an
ty C
a
r
d

Magnavox 15MF605T Specifications

Picture/Display

aspect ratio	4:3
brightness	400 cd/m²
contrast ratio (typical)	500:1
display screen type	LCD XGA Active Matrix TFT
viewing angle (H / V)	140 / 125 degree
response time (typical)	16 ms
panel resolution	1024 x 768p

Supported Display Resolution

computer formats - 640 x 480	60Hz
computer formats - 800 x 600	56, 60Hz
computer formats - 1024 x 768	60Hz
video formats - 480i	60Hz
video formats - 480p	60Hz
video formats - 720p	60Hz
video formats - 1080i	60Hz

Power

power consumption	< 45 W
standby power consumption	< 1 W
ambient temperature	5 °C to 40 °C
mains power	90-240 VAC, 50/60 Hz

Dimensions

product weight (+stand)	4.2 kg
product weight (+stand) (lb)	9.3 lb
set dimensions with stand (W x H x D)	452 x 375 x 120 mm
set dimensions with stand in inch (W x H x D)	17.8 x 14.8 x 4.7 inch
