ACCESSORY DEVICE
EQUIPPED WITH COMPONENT
VIDEO OUTPUTS.

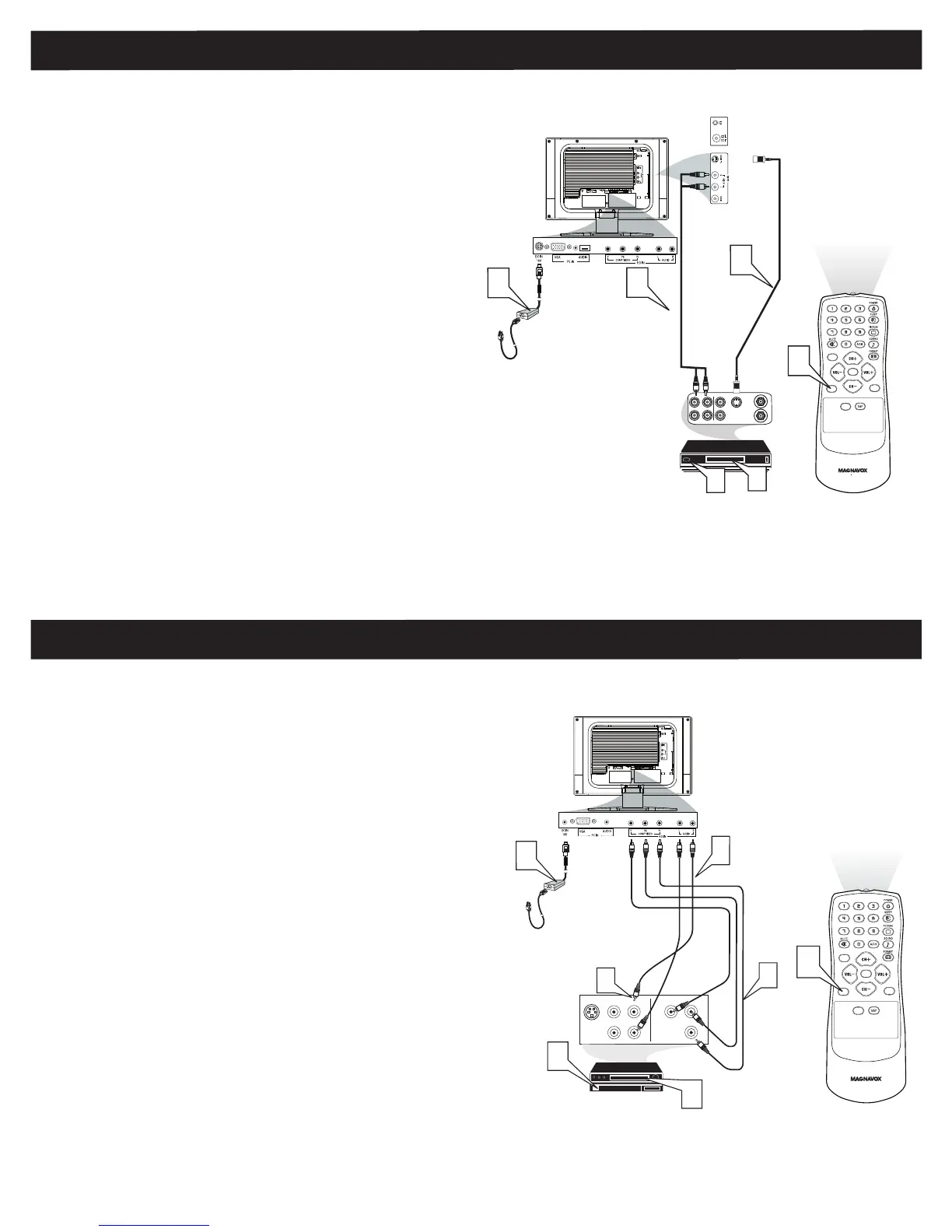

Component Video input provide the highest possible color and
picture resolution in the playback of digital signal source material,
such as with DVD players. If you are using a HD (High Definition)
receiver that can transmit high definition programming, the TV can
accept those signals through the Component input located on the
bottom of the TV.
Connect the component (Y, Pb, Pr) Video OUT jacks from the
DVD player (or similar device) to the COMP(onent) VIDEO Input
jacks on the bottom of the LCD TV.
Connect the red and white AUDIO CABLES to the Audio (left
ad right) output jacks on the rear of the accessory device to the
AUDIO IN jack. Connect the other end of the cable to the Audio
jack on the rear of LCD TV.
Plug the DC Adapter into the DC IN 16 V jack on the LCD TV.
Plug the power cable into an outlet. Turn on the LCD TV and other
equipment.
Press the SOURCE button on the remote control to select HD.
HD will appear in the upper left corner on the TV screen.
Insert a DVD disc into the DVD player and press the PLAY button
on the DVD Player.
1
2
3
4
5
The S-Video connection on the rear of the LCD TV can provide you
with better picture detail and clarity for the playback of accessory
sources such as DBS (digital broadcast satellite), DVD (digital video
discs), video games, and VHS VCR (video cassette recorder) tapes
than the normal antenna picture connections.
Connect an S-Video cable to the S-VIDEO jack of the other
equipment (DVD Player, Camcorder, etc.) and to the S-VIDEO jack
on the rear of the LCD TV.
Connect RCA-style audio cables (usually red and white) to the
AUDIO OUT (left and right) jacks on the other equipment.
Connect the other end of the cables to the AUDIO jack on the
side of the LCD TV.
Plug the DC Adapter into the DC IN 16V jack on the LCD TV.
Plug the power cable into an outlet. Turn on the LCD TV and other
equipment.
Press the Source buttons to set the LCD TV to its S-VIDEO mode.
Press PLAY on the other equipment to view its material on the
LCD TV.
1
2
3
4
5
Note:
• The Magnavox LCD TV remote control can not be used to operate other video/audio equipment.
• The Audio jack of AV IN is shared between Video (CVBS) and S-Video signals. If Audio and Video
is connected to S-Video input, you can still hear sound if you select Video via Source select, even
there appears no image on screen.
S-VIDEO CONNECTIONS
COMPONENT (HD) CONNECTIONS
C C
SOU RCE
P I P
M EN U
OK
ANT ENNA
OUT
ANT ENNA
IN
VIDE O
AUDI O
IN
IN
OUTOUT
LR
S-V HS OUT
3
5
1
2
Jack Panel
Side
of Television
S- Video
Cable
Audio Cable
VCR or External
Accessory Device
(with S-Video
Output)
4
VIDEO
3
wPo er Cable
S - VIDEO
AUDIO
Note:
• The Magnavox LCD TV remote control can not be used to operate
other video/audio equipment.
To Next Page
