4

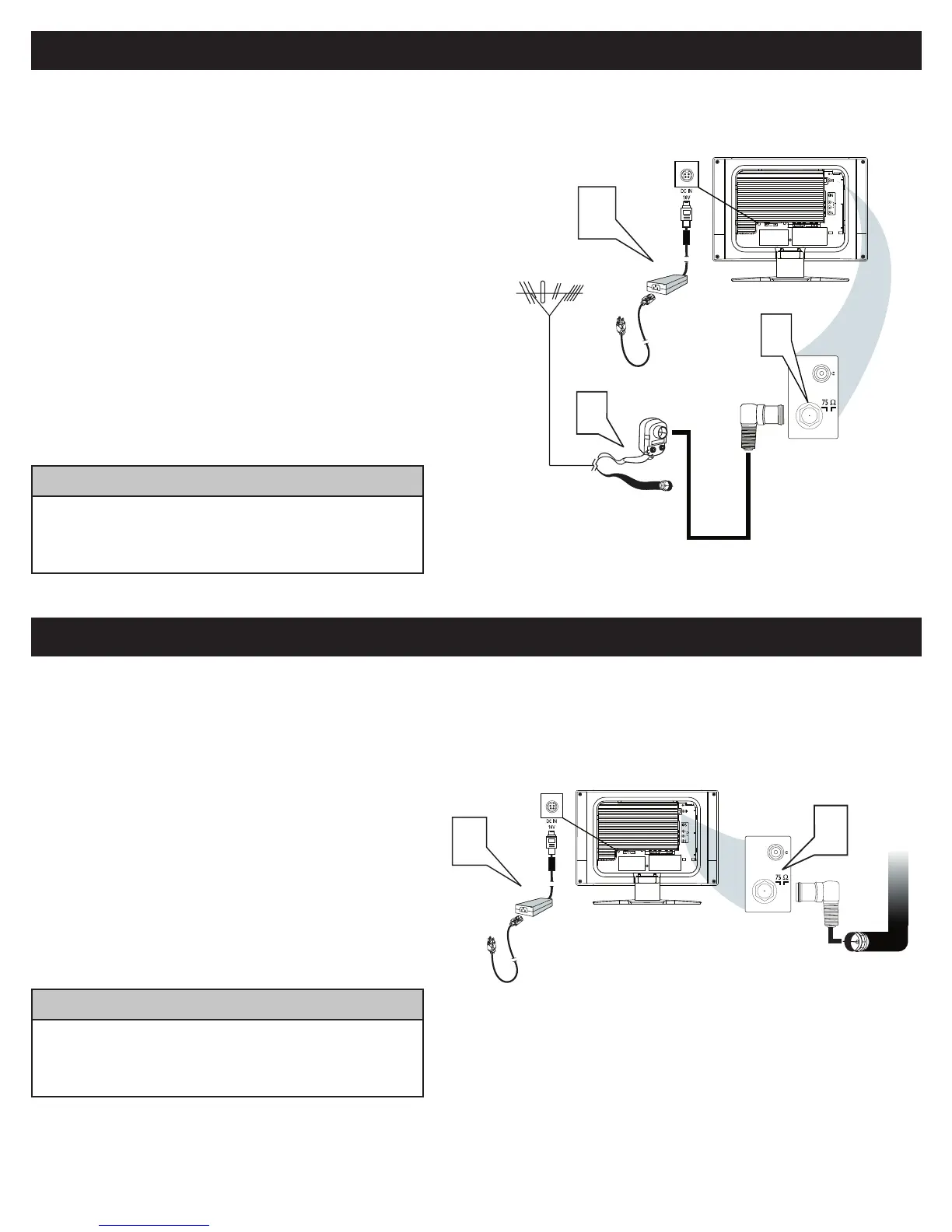

ANTENNA TV
A combination antenna receives normal broadcast channels (VHF 2–13 and UHF 14–69). Your connection is easy because there is only
one 75 Ω (ohm) antenna jack on the side of your TV, and that’s where the antenna goes.
If your antenna has a round cable (75 ohm) on the end, then
you’re ready to connect it to the LCD TV. If your antenna
has flat, twin-lead wire (300 ohm), you first need to at
-
tach the antenna wires to the screws on a 300- to 75-ohm
adapter(not supplied).
Connect the antenna (or adapter) to one end of the
supplied L-Adapter as shown, and connect the other end of
the L-Adapter to the TV jack on the side of the LCD TV.
Plug the DC adapter into the DC IN 16V jack on the LCD
TV. Plug the power cable into an outlet and switch TV set on.
Run the AUTO PROGRAM function to set up the TV for the
broadcast or cable channels available in your area. If you do
not run the auto program function to set up the channels ,
your television may not operate properly.
1
2
1
Antenna
with 75 Ω
cable
Rear Jack panel of
Television
Outdoor or Indoor Antenna
(Combination VHF/UHF)
OR
2
Twin-lead
wire to
300-75Ω
adapter
DC Adapter
Power
Cable
3
Your Cable TV input into your home may be a single (75 ohm) cable or use a cable box decoder. In either case the connection is very
simple. Follow the steps below to connect your cable signal to your new television.
Direct cable connections:
Connect the Cable TV signal to one end of the supplied
L-Adapter as shown, and connect the other end of the
adapter to the TV jack on the LCD TV.
Plug the DC adapter into the DC IN 16V jack on the LCD
TV. Plug the power cable into an outlet and switch TV set on.
Run the AUTO PROGRAM function to set up the TV for the
broadcast or cable channels available in your area. If you do
not run the auto program function to set up the channels ,
your television may not operate properly.
1
3
2
BASIC CABLE TV CONNECTION
1
The Cable TV signal from
Cable Company
(75 coaxial cable)
Rear Jack panel of
Television
Ω
DC
L Adapter
Adapter
Power
Cable
2
4
3
• Remember, an antenna or cable TV signal must first be connected to
your LCD TV.
• Please make sure that you have selected the TV mode with source key
on your remote control, before installing TV channels.
HELPFUL HINT
• Remember, an antenna or cable TV signal must first be connected to
your LCD TV.
• Please make sure that you have selected the TV mode with source key
on your remote control, before installing TV channels.
HELPFUL HINT
