Magnavox 9MDPF20 User Manual

AUDIO OUT
DC 13.2V
L
R
COAXIAL
ANT.
AUDIO OUT
L
R
COAXIAL
Optional Connections 11
• You cannot use a Mini-Disc or
Digital Audio Tape deck to copy
5.1 channel Dolby Digital sur-
round sound Discs.
• Discs recorded in Dolby Digital
should show this on the Disc or
case. If the Disc is not recorded
in 5.1 channel Dolby Digital sur-
round sound, you will not hear
multi-channel sound even if you
use the Digital Stereo hookup.
Helpful Hints

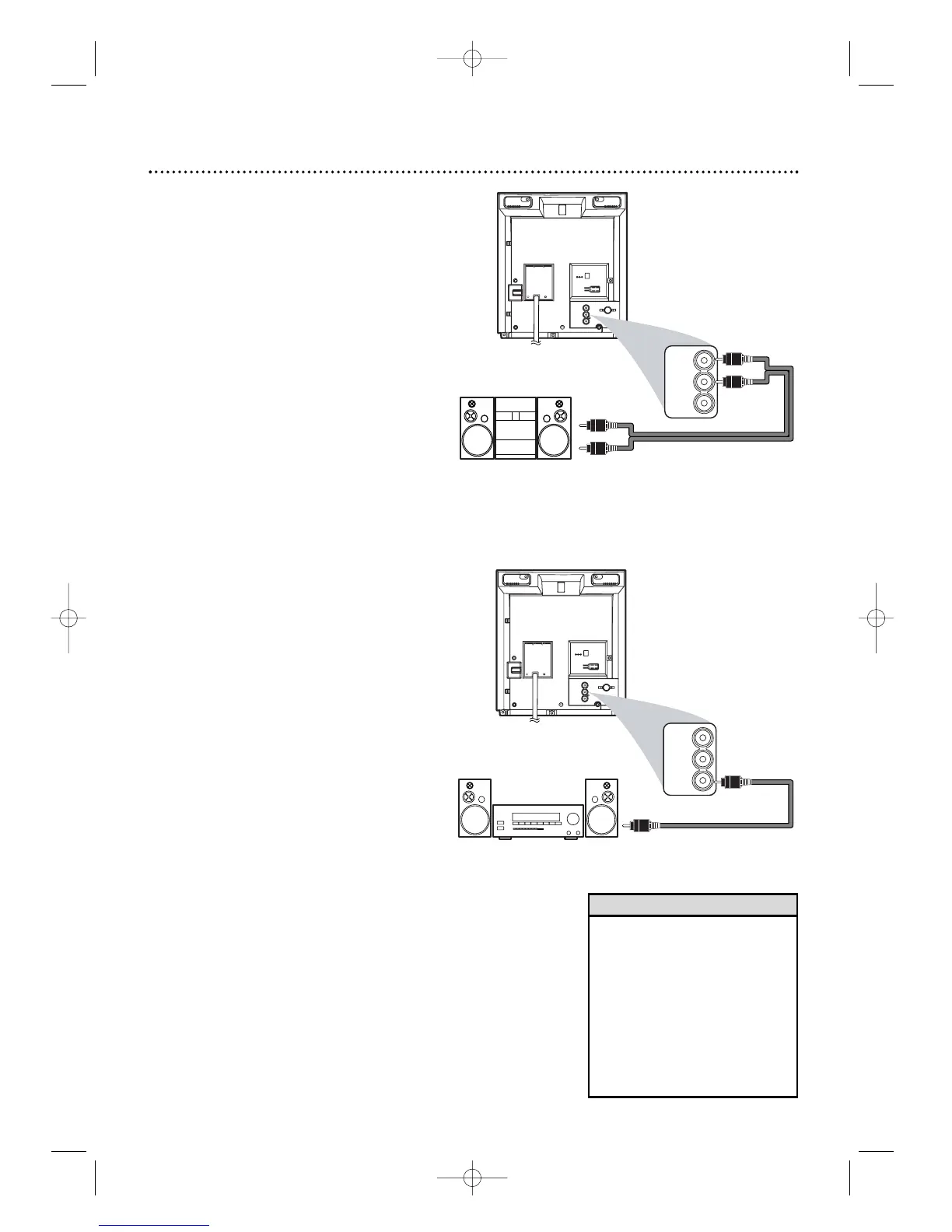

Analog Stereo Hookups
If you want to hear the TV/DVD sound through
a stereo instead, make this connection.
1
Complete the antenna/Cable TV
signal connections. Details are on
pages eight - nine.
2
Connect red and white audio
cables to the red and white AUDIO
OUT jacks on the back of the
TV/DVD and to the AUDIO IN
jacks on the stereo. Match the cable
colors to the jack colors.Audio cables
are not supplied. Use RCA-style cables.
3
Set your stereo to Auxiliary In or
to the correct “source.” See your
stereo owner’s manual for details.
AUDIO OUT
DC 13.2V
L
R
COAXIAL
ANT.
AUDIO OUT
L
R
COAXIAL
Digital Stereo Hookups
You can connect the TV/DVD to a Stereo that
has a Digital Coaxial In jack. Use this hookup if
you want to hear the TV/DVD sound through
the Stereo instead. Use these connections for
a Dolby Digital-compatible Stereo or for a
Receiver that has a Mini-Disc or Digital Audio
Tape deck.
1
Connect the antenna/Cable TV
signal. Details are on pages eight - nine.
2
Connect a digital audio coaxial
cable (not supplied) to the orange
COAXIAL jack on the TV/DVD.
Also connect the cable to the
Stereo’s COAXIAL DIGITAL
AUDIO IN jack.
3
If the Stereo is Dolby Digital-com-
patible, set DOLBY DIGITAL to
ON. If the Stereo is not Dolby Digital-
compatible or if you connected to a
Mini-Disc or Digital Audio Tape Deck,
set DOLBY DIGITAL to OFF. Details are
on page 40.
An incorrect setting causes noise distor-
tion and damages speakers.
To see if your Stereo has Dolby Digital,
look for a Dolby Digital logo on your
Stereo. Or, refer to the Stereo owner’s
manual.
Audio cables
to red and
white AUDIO
OUT jacks on
TV/DVD
Audio cables to
Stereo’s AUDIO IN jacks
Digital Audio Coaxial cable
to orange
COAXIAL jack
on TV/DVD
To Stereo’s COAXIAL
DIGITAL AUDIO IN jack
TD007_9MDPF20_V3.QX33 04.2.18 1:51 AM Page 11
