Magnavox CMWC13D6 - DVD Main Schematic Diagram

Magnavox CMWC13D6

64 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

1-10-8

T8203SCD1

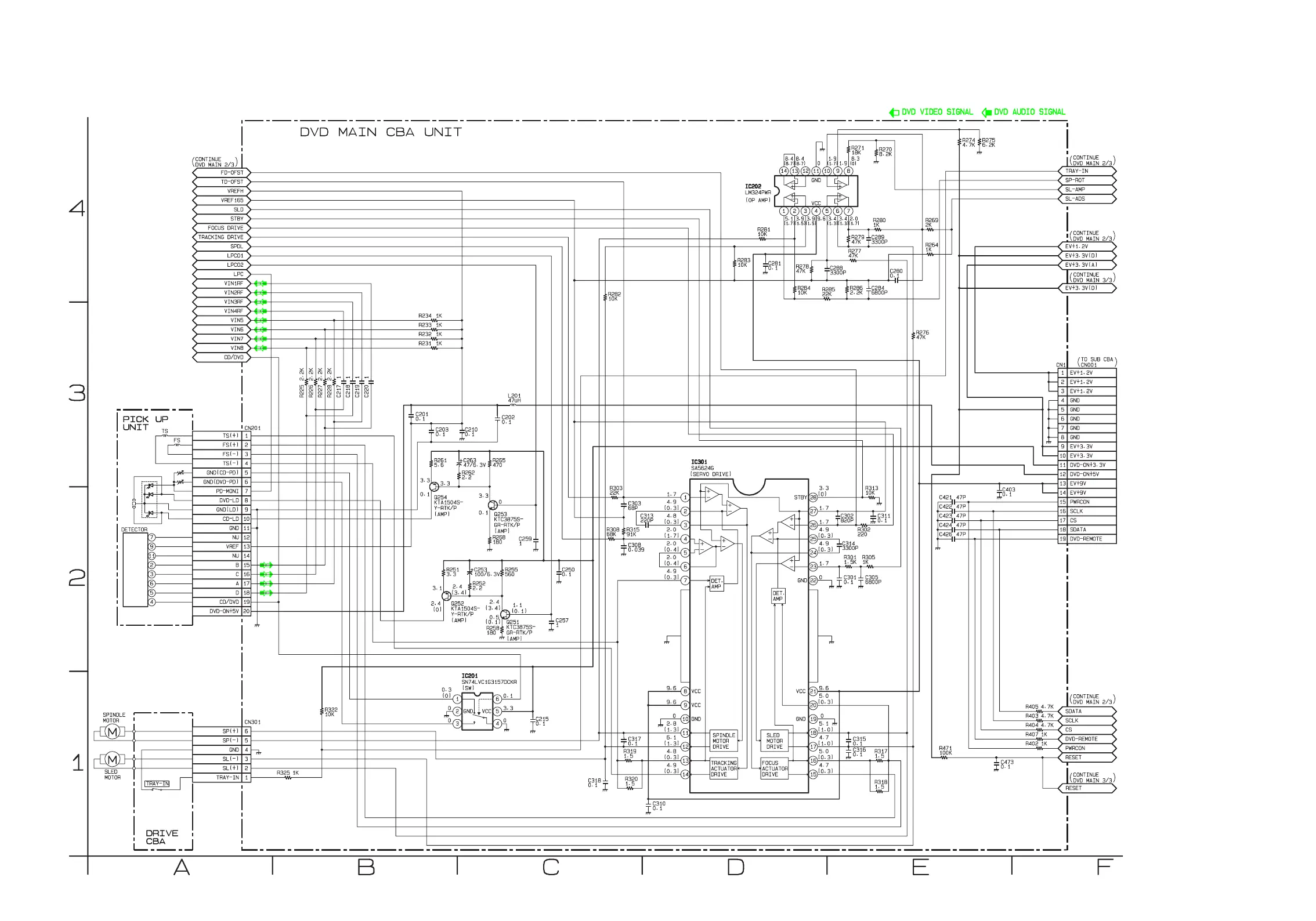

DVD Main 1/3 Schematic Diagram < DVD Section >
